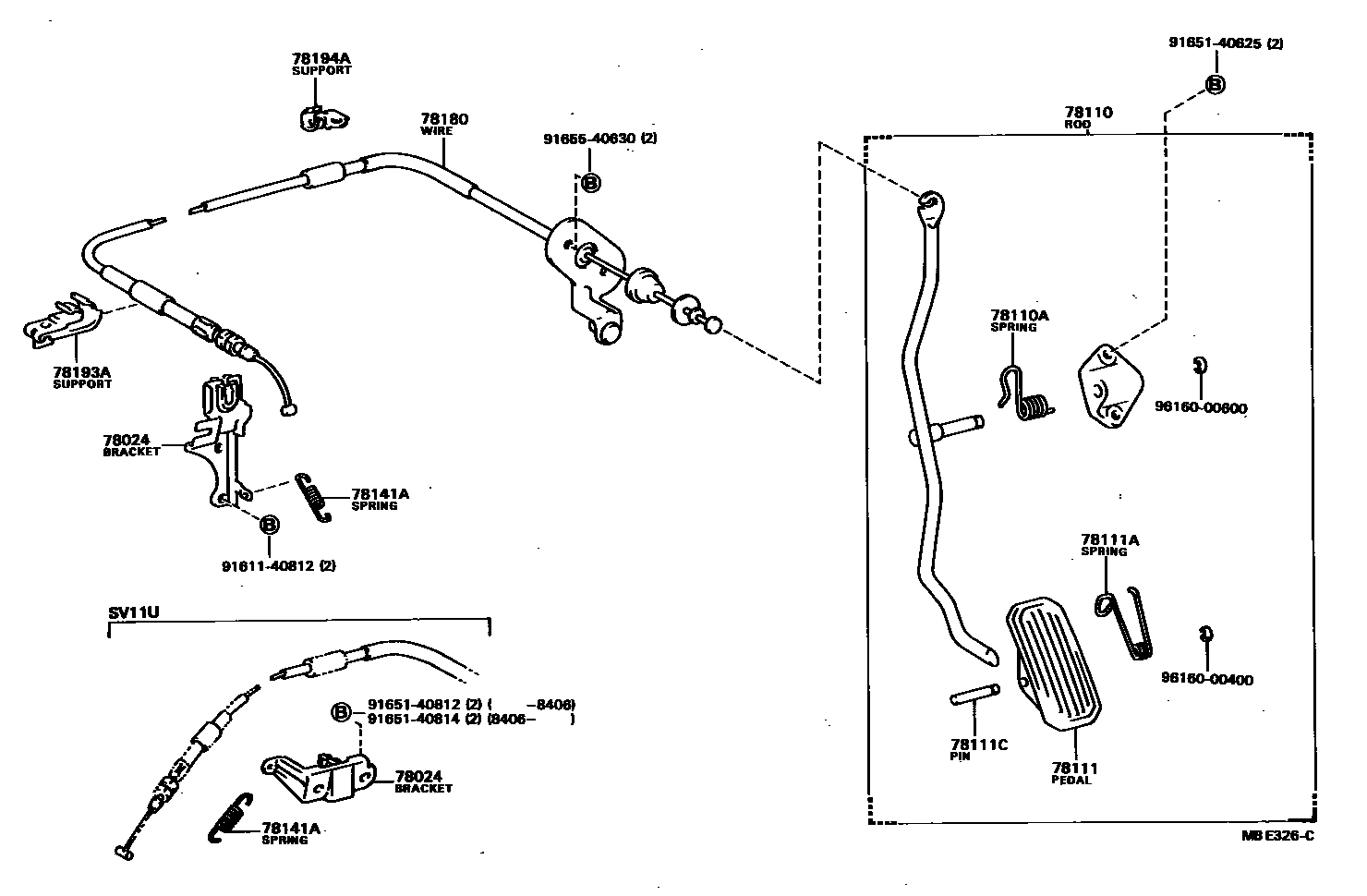

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-32010iSV10198210-198610

main78024-32020iSV11..RHD198303-198610

main78024-32030iSV11..SDZ198303-198308

main78024-32031iSV11..LHD198308-198610

main78024-32040iCV1#..RHD198308-198610

main78024-32050iCV1#..LHD198308-198610

78110ROD ASSY, ACCELERATOR PEDAL

main78120-32010iSV10..RHD198210-198610

main78120-32020iSV1#..LHD198210-198610

main78120-32030iSV11..RHD..4FC198303-198610

main78120-32040iCV10..RHD198306-198610

main78120-32050iSV11..LHD..5F198306-198610

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iSV10;CV1#,SV11..4FC198210-198610

main90508-23069iCV1#,SV11..5F198306-198610

78111PEDAL, ACCELERATOR

main78111-12100iCV1#,SV1#..RHD198309-198610

main78111-32010iCV10,SV1#198210-198610

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18046iCV1#,SV1#..LHD198210-198610

main90508-23003iCV1#,SV1#..RHD198210-198610

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCV1#,SV1#198210-198610

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90506-12041iSV11..5F198303-198307

sub90507-11002

main90507-10005iSV10..5F198210-198310

main90507-10008iSV11..4FC198303-198307

sub90507-11002

main90507-10013iSV10..4FC198210-198610

main90507-11002iSV11198307-198610

main90507-11003iSV10..5F198310-198610

78180WIRE ASSY, ACCELERATOR

main78180-32010iSV10..RHD198210-198610

main78180-32040iSV11..RHD198303-198610

main78180-32060iSV10..LHD198210-198610

main78180-32070iSV11..LHD198303-198405

sub78180-32090

main78180-32090iSV11..LHD198405-198610

main78180-32100iCV1#..RHD198308-198610

main78180-32110iCV1#..LHD198308-198610

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32010iSV10198210-198610

main78193-32030iCV1#..LHD198308-198610

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-32010iSV10..RHD198210-198610

9161140812

main91611-40812

9165140625

main91651-40625

9165140812

main91651-40812

9165140814

main91651-40814

9165540630

main91655-40630

9616000400

main96160-00400

9616000600

main96160-00600

17 parts on this diagram · 4 diagrams in section
