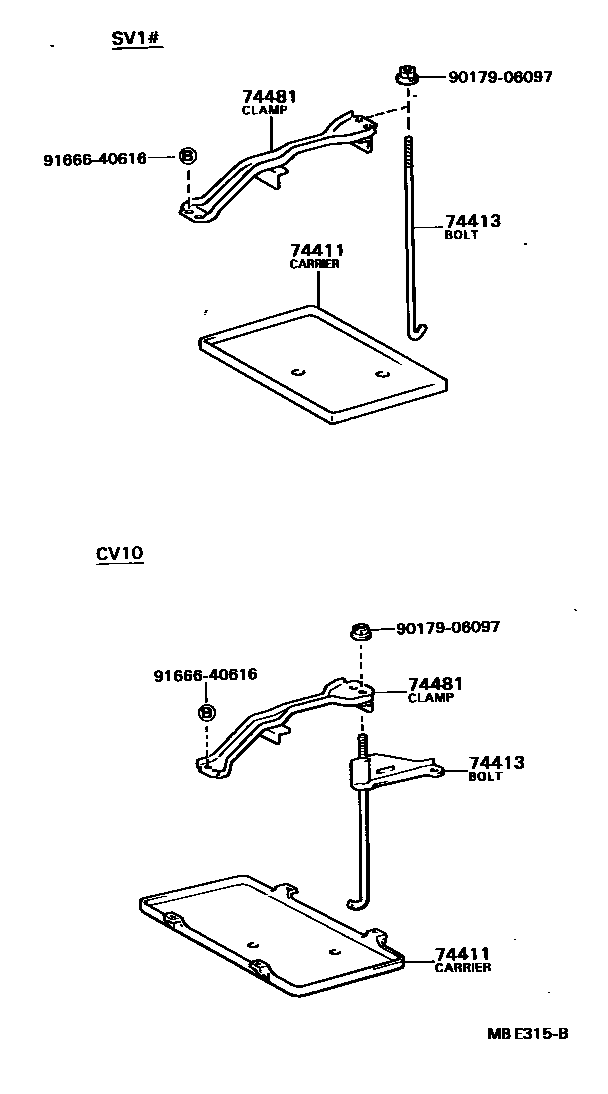

BATTERY CARRIER

74411CARRIER, BATTERY

main74431-14020iSV10;SV11..ARL198210-198610

N40L

main74431-14030iSV1#..EUR198210-198610

55D23L

sub74431-52040

main74431-14030iCV1#198308-198610

NX110

sub74431-52040

main74431-14040iCV1#198308-198610

NX120

74413BOLT, BATTERY CLAMP

main74403-32010iCV1#198308-198610

main74451-14010iSV10;SV11..ARL198210-198610

N40L

main74451-32010iSV1#..EUR198210-198610

55D23L

74481CLAMP, BATTERY HOLD DOWN

main74404-32020iSV1#..EUR198210-198610

55D23L

main74404-32020iCV1#198308-198610

main74404-32030iSV10;SV11..ARL198210-198610

N40L

9017906097

main90179-06097

9166640616

main91666-40616

5 parts on this diagram · 1 diagram in section
