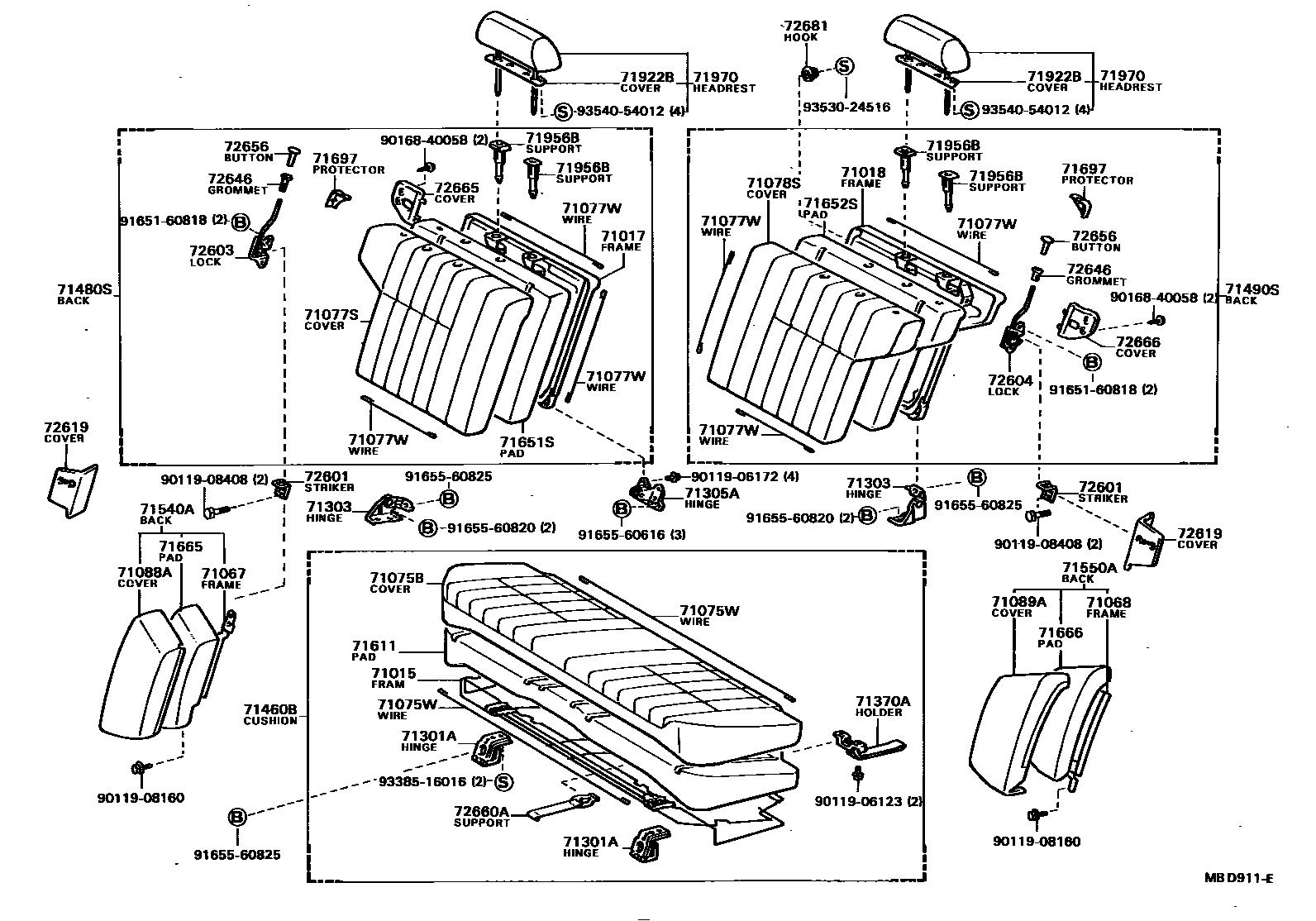

REAR SEAT & SEAT TRACK

0001 1 0002 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-32020iCV1#,SV1#..5D198210-198610

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-32010iCV1#,SV1#..5D198210-198610

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-32010iCV1#,SV1#..5D198210-198610

71067FRAME SUB-ASSY, REAR SIDE SEATBACK, RH

main71067-32010iCV10,SV1#..5D198210-198508

71068FRAME SUB-ASSY, REAR SIDE SEATBACK, LH

main71068-32010iCV10,SV1#..5D198210-198508

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-32020-03iSV10..DLX..4D198210-198308

FB,GRAY,GRAY,TRIM1#

sub71075-32060

main71075-32020-04iSV10..DLX..4D198210-198308

FB,BLUE,BLUE,TRIM8#

sub71075-32060

main71075-32020-05iSV10..DLX..4D198210-198308

FB,BEIGE,BEIGE,TRIM4#

sub71075-32060

main71075-32090-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

sub71075-32070

main71075-32090-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

sub71075-32070

main71075-32090-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

sub71075-32070

main71075-32130-03iSV1#..(GL,GLI)..4D198210-198308

FB,GRAY,GRAY,TRIM1#

main71075-32130-04iSV1#..(GL,GLI)..4D198210-198308

FB,BLUE,BLUE,TRIM8#

main71075-32130-06iSV1#..(GL,GLI)..4D198210-198308

FB,BROWN,BROWN,TRIM4#

main71075-32150-03iSV1#..(GL,GLI)..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71075-32150-04iSV1#..(GL,GLI)..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71075-32150-06iSV1#..(GL,GLI)..5D198210-198308

FB,BROWN,BROWN,TRIM4#

main71075-32180-03iCV10,SV1#..(GL,GLI)..4D198308-198406

FB,GRAY,GRAY,TRIM1#

main71075-32180-04iCV10,SV1#..(GL,GLI)..4D198308-198406

FB,BLUE,BLUE,TRIM8#

main71075-32180-05iCV10,SV1#..(GL,GLI)..4D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71075-32190-03iSV1#..(GL,GLI)..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71075-32190-04iSV1#..(GL,GLI)..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71075-32190-05iSV1#..(GL,GLI)..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71075-32200-03iCV10,SV10..DLX..4D198308-198406

FB,GRAY,GRAY,TRIM1#

sub71075-32061

main71075-32200-04iCV10,SV10..DLX..4D198308-198406

FB,BLUE,BLUE,TRIM8#

sub71075-32061

main71075-32200-05iCV10,SV10..DLX..4D198308-198406

FB,BEIGE,BEIGE,TRIM4#

sub71075-32061

main71075-32210-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

sub71075-32071

main71075-32210-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

sub71075-32071

main71075-32210-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

sub71075-32071

main71075-32230-03iCV1#,SV10..DLX..4D198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32230-04iCV1#,SV10..DLX..4D198406-198610

FB,BLUE,BLUE,TRIM8#

main71075-32230-05iCV1#,SV10..DLX..4D198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71075-32260-03iCV10,SV1#..(GL,GLI)..4D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32260-04iCV10,SV1#..(GL,GLI)..4D198406-198508

FB,BLUE,BLUE,TRIM8#

main71075-32260-05iCV10,SV1#..(GL,GLI)..4D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71075-32300-03iSV10..5D198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32300-04iSV10..5D198406-198610

FB,BLUE,BLUE,TRIM8#

main71075-32300-05iSV10..5D198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71075-32330-03iCV10,SV11..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32330-04iCV10,SV11..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71075-32330-05iCV10,SV11..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71075-32380-03iCV11,SV1#..(GL,GLI)..4D198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32380-04iCV11,SV1#..(GL,GLI)..4D198508-198610

FB,BLUE,BLUE,TRIM8#

main71075-32380-05iCV11,SV1#..(GL,GLI)..4D198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71075-32390-03iCV11,SV11..5D198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32390-04iCV11,SV11..5D198508-198610

FB,BLUE,BLUE,TRIM8#

main71075-32390-05iCV11,SV11..5D198508-198610

FB,BEIGE,BEIGE,TRIM4#

71075WWIRE, REAR SEAT CUSHION COVER

main90580-20091iCV1#,SV1#..4D198210-198610

WD=2.0,L=1130

main90580-20097iCV1#,SV1#..5D198210-198610

WD=2.0,L=1080

sub90580-20107

main90580-20106iCV1#,SV1#..4D198210-198610

WD=2.0,L=530

main90580-20132iCV1#,SV1#..4D198210-198610

WD=2.0,L=1050

sub90580-20107

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-32160-03iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71077-32160-04iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71077-32160-06iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BROWN,BROWN,TRIM4#

main71077-32161-03iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71077-32161-04iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71077-32161-05iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71077-32170-03iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,GRAY,GRAY,TRIM1#

sub71077-32160

main71077-32170-04iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BLUE,BLUE,TRIM8#

sub71077-32160

main71077-32170-06iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BROWN,BROWN,TRIM4#

sub71077-32160

main71077-32180-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

sub71077-32070

main71077-32180-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

sub71077-32070

main71077-32180-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

sub71077-32070

main71077-32181-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

sub71077-32071

main71077-32181-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

sub71077-32071

main71077-32181-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

sub71077-32071

main71077-32230-03iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,GRAY,GRAY,TRIM1#

sub71077-32161

main71077-32230-04iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BLUE,BLUE,TRIM8#

sub71077-32161

main71077-32230-05iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

sub71077-32161

main71077-32370-03iCV10,SV11..5D198406-198508

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32370-04iCV10,SV11..5D198406-198508

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71077-32370-05iCV10,SV11..5D198408-198508

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71077-32410-03iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32410-04iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71077-32410-05iCV10,SV11..5D..EUR198408-198508

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71077-32411-03iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32411-04iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71077-32411-05iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71077-32420-03iSV10..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32420-04iSV10..5D198406-198610

BLUE,BLUE,TRIM8#

main71077-32420-05iSV10..5D198408-198610

BEIGE,BEIGE,TRIM4#

main71077-32430-03iCV11,SV11..5D198508-198610

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32430-04iCV11,SV11..5D198508-198610

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71077-32430-05iCV11,SV11..5D198508-198610

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

71077WWIRE, REAR SEATBACK COVER

main90580-20005iCV1#,SV1#..4D198210-198610

WD=2.0,L=1320

sub90580-20170

main90580-20012iCV1#,SV1#..5D198210-198610

WD=2.0,L=420

sub90580-20165

main90580-20032iCV1#,SV1#..5D198210-198610

WD=2.0,L=350

main90580-20035iCV1#,SV1#..4D198210-198610

WD=2.0,L=150

sub90580-20165

main90580-20051iCV1#,SV1#..5D198210-198610

WD=2.0,L=550

main90580-20063iCV1#,SV1#..4D198210-198610

WD=2.0,L=1110

sub90580-20107

main90580-20106iCV1#,SV1#..5D198210-198610

WD=2.0,L=530

main90580-20108iCV1#,SV1#..4D198210-198610

WD=2.0,L=580

sub90580-20107

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-32020-03iCV11,SV11..5D198508-198610

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71078-32020-04iCV11,SV11..5D198508-198610

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71078-32020-05iCV11,SV11..5D198508-198610

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71078-32080-03iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71078-32080-04iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71078-32080-06iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BROWN,BROWN,TRIM4#

main71078-32081-03iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71078-32081-04iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71078-32081-05iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71078-32090-03iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,GRAY,GRAY,TRIM1#

sub71078-32080

main71078-32090-04iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BLUE,BLUE,TRIM8#

sub71078-32080

main71078-32090-06iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BROWN,BROWN,TRIM4#

sub71078-32080

main71078-32100-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

sub71078-32010

main71078-32100-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

sub71078-32010

main71078-32100-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

sub71078-32010

main71078-32101-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

sub71078-32011

main71078-32101-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

sub71078-32011

main71078-32101-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

sub71078-32011

main71078-32120-03iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,GRAY,GRAY,TRIM1#

sub71078-32081

main71078-32120-04iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BLUE,BLUE,TRIM8#

sub71078-32081

main71078-32120-05iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

sub71078-32081

main71078-32160-03iCV10,SV11..5D198406-198508

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71078-32160-04iCV10,SV11..5D198406-198508

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71078-32160-05iCV10,SV11..5D198408-198508

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71078-32200-03iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71078-32200-04iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71078-32200-05iCV10,SV11..5D..EUR198408-198508

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71078-32201-03iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71078-32201-04iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71078-32201-05iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71078-32210-03iSV10..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71078-32210-04iSV10..5D198406-198610

BLUE,BLUE,TRIM8#

main71078-32210-05iSV10..5D198408-198610

BEIGE,BEIGE,TRIM4#

71088ACOVER SUB-ASSY, REAR SIDE SEATBACK, RH

main71088-32020-03iSV10..DLX..5D198210-198308

GRAY,GRAY,TRIM1#

sub71088-32050

main71088-32020-04iSV10..DLX..5D198210-198308

BLUE,BLUE,TRIM8#

sub71088-32050

main71088-32020-05iSV10..DLX..5D198210-198308

BEIGE,BEIGE,TRIM4#

sub71088-32050

main71088-32070-03iSV1#..(GL,GLI)..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71088-32070-04iSV1#..(GL,GLI)..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71088-32070-06iSV1#..(GL,GLI)..5D198210-198308

FB,BROWN,BROWN,TRIM4#

main71088-32090-03iSV1#..(GL,GLI)..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71088-32090-04iSV1#..(GL,GLI)..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71088-32090-05iSV1#..(GL,GLI)..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71088-32110-03iSV10..DLX..5D198308-198406

GRAY,GRAY,TRIM1#

main71088-32110-04iSV10..DLX..5D198308-198406

BLUE,BLUE,TRIM8#

main71088-32110-05iSV10..DLX..5D198308-198406

BEIGE,BEIGE,TRIM4#

main71088-32120-03iSV10..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71088-32120-04iSV10..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71088-32120-05iSV10..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71088-32150-03iCV10,SV11..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71088-32150-04iCV10,SV11..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71088-32150-05iCV10,SV11..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

71089ACOVER SUB-ASSY, REAR SIDE SEATBACK, LH

main71089-32020-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

sub71089-32050

main71089-32020-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

sub71089-32050

main71089-32020-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

sub71089-32050

main71089-32070-03iSV1#..(GL,GLI)..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71089-32070-04iSV1#..(GL,GLI)..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71089-32070-06iSV1#..(GL,GLI)..5D198210-198308

FB,BROWN,BROWN,TRIM4#

main71089-32090-03iSV1#..(GL,GLI)..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71089-32090-04iSV1#..(GL,GLI)..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71089-32090-05iSV1#..(GL,GLI)..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71089-32110-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71089-32110-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71089-32110-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71089-32120-03iSV10..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71089-32120-04iSV10..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71089-32120-05iSV10..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71089-32150-03iCV10,SV11..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71089-32150-04iCV10,SV11..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71089-32150-05iCV10,SV11..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

71301AHINGE SUB-ASSY, REAR SEAT CUSHION

main71301-32010iCV1#,SV1#..5D198210-198610

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-32010iCV1#,SV1#..5D198210-198610

RH

main71304-32010iCV1#,SV1#..5D198210-198610

LH

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-32010iCV1#,SV1#..5D198210-198610

71370AHOLDER ASSY, REAR SEAT CUSHION

main71370-32010-03iSV1#..5D198210-198406

GRAY,GRAY,TRIM1#

main71370-32010-04iSV1#..5D198210-198406

BLUE,BLUE,TRIM8#

main71370-32010-05iCV1#,SV1#..5D198408-198610

BEIGE,BEIGE,TRIM4#

main71370-32010-06iSV1#..5D198210-198406

BROWN,BROWN,TRIM4#

main71370-32010-13iCV1#,SV1#..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71370-32010-14iCV1#,SV1#..5D198406-198610

BLUE,BLUE,TRIM8#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-32020-03iSV10..DLX..4D198210-198308

FB,GRAY,GRAY,TRIM1#

main71460-32020-04iSV10..DLX..4D198210-198308

FB,BLUE,BLUE,TRIM8#

main71460-32020-05iSV10..DLX..4D198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71460-32080-03iSV1#..(GL,GLI)..4D198210-198308

FB,GRAY,GRAY,TRIM1#

main71460-32080-04iSV1#..(GL,GLI)..4D198210-198308

FB,BLUE,BLUE,TRIM8#

main71460-32080-06iSV1#..(GL,GLI)..4D198210-198308

FB,BROWN,BROWN,TRIM4#

main71460-32100-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71460-32100-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71460-32100-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71460-32150-03iSV1#..(GL,GLI)..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71460-32150-04iSV1#..(GL,GLI)..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71460-32150-06iSV1#..(GL,GLI)..5D198210-198308

FB,BROWN,BROWN,TRIM4#

main71460-32180-03iCV10,SV1#..(GL,GLI)..4D198308-198406

FB,GRAY,GRAY,TRIM1#

main71460-32180-04iCV10,SV1#..(GL,GLI)..4D198308-198406

FB,BLUE,BLUE,TRIM8#

main71460-32180-05iCV10,SV1#..(GL,GLI)..4D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71460-32190-03iSV1#..(GL,GLI)..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71460-32190-04iSV1#..(GL,GLI)..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71460-32190-05iSV1#..(GL,GLI)..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71460-32200-03iCV10,SV10..DLX..4D198308-198406

FB,GRAY,GRAY,TRIM1#

main71460-32200-04iCV10,SV10..DLX..4D198308-198406

FB,BLUE,BLUE,TRIM8#

main71460-32200-05iCV10,SV10..DLX..4D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71460-32210-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71460-32210-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71460-32210-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71460-32230-03iCV1#,SV10..DLX..4D198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71460-32230-04iCV1#,SV10..DLX..4D198406-198610

FB,BLUE,BLUE,TRIM8#

main71460-32230-05iCV1#,SV10..DLX..4D198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71460-32260-03iCV10,SV1#..(GL,GLI)..4D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71460-32260-04iCV10,SV1#..(GL,GLI)..4D198406-198508

FB,BLUE,BLUE,TRIM8#

main71460-32260-05iCV10,SV1#..(GL,GLI)..4D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71460-32280-03iSV10..5D198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71460-32280-04iSV10..5D198406-198610

FB,BLUE,BLUE,TRIM8#

main71460-32280-05iSV10..5D198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71460-32310-03iCV10,SV11..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71460-32310-04iCV10,SV11..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71460-32310-05iCV10,SV11..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71460-32380-03iCV11,SV1#..(GL,GLI)..4D198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71460-32380-04iCV11,SV1#..(GL,GLI)..4D198508-198610

FB,BLUE,BLUE,TRIM8#

main71460-32380-05iCV11,SV1#..(GL,GLI)..4D198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71460-32390-03iCV11,SV11..5D198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71460-32390-04iCV11,SV11..5D198508-198610

FB,BLUE,BLUE,TRIM8#

main71460-32390-05iCV11,SV11..5D198508-198610

FB,BEIGE,BEIGE,TRIM4#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-32150-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71480-32150-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71480-32150-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71480-32151-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71480-32151-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71480-32151-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71480-32160-03iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71480-32160-04iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32160-06iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BROWN,BROWN,TRIM4#

main71480-32161-03iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71480-32161-04iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32161-05iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71480-32170-03iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,GRAY,GRAY,TRIM1#

main71480-32170-04iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32170-06iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BROWN,BROWN,TRIM4#

main71480-32210-03iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,GRAY,GRAY,TRIM1#

main71480-32210-04iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32210-05iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71480-32330-03iCV10,SV11..5D198406-198508

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71480-32330-04iCV10,SV11..5D198406-198508

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32330-05iCV10,SV11..5D198408-198508

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71480-32390-03iSV10..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71480-32390-04iSV10..5D198406-198610

BLUE,BLUE,TRIM8#

main71480-32390-05iSV10..5D198408-198610

BEIGE,BEIGE,TRIM4#

main71480-32400-03iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71480-32400-04iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32400-05iCV10,SV11..5D..EUR198408-198508

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71480-32401-03iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71480-32401-04iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32401-05iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71480-32420-03iCV11,SV11..5D198508-198610

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71480-32420-04iCV11,SV11..5D198508-198610

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71480-32420-05iCV11,SV11..5D198508-198610

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-32010-03iCV11,SV11..5D198508-198610

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71490-32010-04iCV11,SV11..5D198508-198610

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32010-05iCV11,SV11..5D198508-198610

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71490-32070-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71490-32070-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71490-32070-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71490-32071-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71490-32071-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71490-32071-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71490-32080-03iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71490-32080-04iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32080-06iSV1#..(GL,GLI)..5D..EUR198210-198308

W/O HEADREST,FB,BROWN,BROWN,TRIM4#

main71490-32081-03iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,GRAY,GRAY,TRIM1#

main71490-32081-04iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32081-05iSV1#..(GL,GLI)..5D..EUR198308-198406

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71490-32090-03iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,GRAY,GRAY,TRIM1#

main71490-32090-04iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32090-06iSV1#..(GL,GLI)..5D198210-198308

W/HEADREST,FB,BROWN,BROWN,TRIM4#

main71490-32110-03iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,GRAY,GRAY,TRIM1#

main71490-32110-04iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32110-05iSV1#..(GL,GLI)..5D198308-198406

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71490-32150-03iCV10,SV11..5D198406-198508

W/HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71490-32150-04iCV10,SV11..5D198406-198508

W/HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32150-05iCV10,SV11..5D198408-198508

W/HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71490-32190-03iSV10..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71490-32190-04iSV10..5D198406-198610

BLUE,BLUE,TRIM8#

main71490-32190-05iSV10..5D198408-198610

BEIGE,BEIGE,TRIM4#

main71490-32200-03iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71490-32200-04iCV10,SV11..5D..EUR198406-198508

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32200-05iCV10,SV11..5D..EUR198408-198508

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

main71490-32201-03iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71490-32201-04iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BLUE,BLUE,TRIM8#

main71490-32201-05iCV11,SV11..5D..EUR198508-198610

W/O HEADREST,FB,BEIGE,BEIGE,TRIM4#

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-32010-03iCV11,SV11..5D198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71540-32010-04iCV11,SV11..5D198508-198610

FB,BLUE,BLUE,TRIM8#

main71540-32010-05iCV11,SV11..5D198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71540-32020-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71540-32020-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71540-32020-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71540-32070-03iSV1#..(GL,GLI)..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71540-32070-04iSV1#..(GL,GLI)..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71540-32070-06iSV1#..(GL,GLI)..5D198210-198308

FB,BROWN,BROWN,TRIM4#

main71540-32090-03iSV1#..(GL,GLI)..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71540-32090-04iSV1#..(GL,GLI)..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71540-32090-05iSV1#..(GL,GLI)..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71540-32110-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71540-32110-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71540-32110-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71540-32120-03iSV10..5D198406-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71540-32120-04iSV10..5D198406-198511

FB,BLUE,BLUE,TRIM8#

main71540-32120-05iSV10..5D198408-198511

FB,BEIGE,BEIGE,TRIM4#

main71540-32150-03iCV10,SV11..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71540-32150-04iCV10,SV11..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71540-32150-05iCV10,SV11..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71540-32320-03iSV10..5D198511-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71540-32320-04iSV10..5D198511-198610

FB,BLUE,BLUE,TRIM8#

main71540-32320-05iSV10..5D198511-198610

FB,BEIGE,BEIGE,TRIM4#

main71540-32330-03iCV11,SV11..5D..EUR198511-198610

FB,SHADOW,GRAY,SHADOW GRAY,TRIM1#

main71540-32330-04iCV11,SV11..5D..EUR198511-198610

FB,BLUE,BLUE,TRIM8#

main71540-32330-05iCV11,SV11..5D..EUR198511-198610

FB,BEIGE,BEIGE,TRIM4#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-32010-03iCV11,SV11..5D198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71550-32010-04iCV11,SV11..5D198508-198610

FB,BLUE,BLUE,TRIM8#

main71550-32010-05iSV11..ARL198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71550-32020-03iSV10..DLX..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71550-32020-04iSV10..DLX..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71550-32020-05iSV10..DLX..5D198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71550-32070-03iSV1#..(GL,GLI)..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71550-32070-04iSV1#..(GL,GLI)..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71550-32070-06iSV1#..(GL,GLI)..5D198210-198308

FB,BROWN,BROWN,TRIM4#

main71550-32090-03iSV1#..(GL,GLI)..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71550-32090-04iSV1#..(GL,GLI)..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71550-32090-05iSV1#..(GL,GLI)..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71550-32110-03iSV10..DLX..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71550-32110-04iSV10..DLX..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71550-32110-05iSV10..DLX..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71550-32120-03iSV10..5D198406-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71550-32120-04iSV10..5D198406-198511

FB,BLUE,BLUE,TRIM8#

main71550-32120-05iSV10..5D198408-198511

FB,BEIGE,BEIGE,TRIM4#

main71550-32150-03iCV10,SV11..5D198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71550-32150-04iCV10,SV11..5D198406-198508

FB,BLUE,BLUE,TRIM8#

main71550-32150-05iCV10,SV11..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71550-32310-03iSV10..5D198511-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71550-32310-04iSV10..5D198511-198610

FB,BLUE,BLUE,TRIM8#

main71550-32310-05iSV10..5D198511-198610

FB,BEIGE,BEIGE,TRIM4#

main71550-32320-03iCV11,SV11..5D..EUR198508-198610

FB,SHADOW,GRAY,SHADOW GRAY,TRIM1#

main71550-32320-04iCV11,SV11..5D..EUR198508-198610

FB,BLUE,BLUE,TRIM8#

main71550-32320-05iCV11,SV11..5D..EUR198508-198610

FB,BEIGE,BEIGE,TRIM4#

71611PAD, REAR SEAT CUSHION

main71611-32010iSV1#..4D198210-198306

sub71611-32020

main71611-32020iCV10,SV1#..4D198306-198406

main71611-32030iSV1#..5D198210-198306

sub71611-32040

main71611-32040iSV1#..5D198306-198406

main71611-32050iCV1#,SV1#..4D198406-198512

sub71611-32090

main71611-32060iCV11,SV1#..4D198512-198610

sub71611-32100

main71611-32070iCV10,SV1#..5D198406-198502

sub71611-32080

main71611-32080iCV1#,SV1#..5D198502-198610

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-32010iSV1#..5D198210-198306

sub71651-32020

main71651-32020iSV1#..5D198306-198406

main71651-32050iCV10,SV1#..5D198406-198502

sub71651-32060

main71651-32060iCV1#,SV1#..5D198502-198610

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-32010iSV1#..5D198210-198306

sub71652-32020

main71652-32020iSV1#..5D198306-198406

main71652-32030iCV10,SV1#..5D198406-198502

sub71652-32040

main71652-32040iCV1#,SV1#..5D198502-198610

71665PAD, REAR SEATBACK SIDE, RH

main71665-32010iCV10,SV1#..5D198210-198508

71666PAD, REAR SEATBACK SIDE, LH

main71666-32010iCV10,SV1#..5D198210-198508

71697PROTECTOR, REAR SEATBACK EDGE

main71697-32010iCV1#,SV1#..5D198210-198610

71922BCOVER, REAR SEAT HEADREST UNDER

main71952-32010-03iSV1#..(GL,GLI)..5D198210-198406

GRAY,GRAY,TRIM1#

sub71952-32010

main71952-32010-04iSV1#..(GL,GLI)..5D198210-198406

BLUE,BLUE,TRIM8#

sub71952-32010

main71952-32010-06iSV1#..(GL,GLI)..5D198210-198406

BROWN,BROWN,TRIM4#

sub71952-32010

71956BSUPPORT, REAR SEAT HEADREST

main71930-10060-04iCV1#,SV1#..(GL,GLI)..5D198210-198610

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

sub71930-10060

main71930-10060-13iCV1#,SV1#..(GL,GLI)..5D198210-198610

W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1#

sub71930-10060

main71930-10060-16iCV1#,SV11..5D198408-198610

W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4#

sub71930-10060

main71930-10060-25iSV1#..(GL,GLI)..5D198210-198406

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

sub71930-10060

main71931-10010-04iCV1#,SV1#..(GL,GLI)..5D198210-198610

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

sub71931-10010

main71931-10010-13iCV1#,SV1#..(GL,GLI)..5D198210-198610

W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1#

sub71931-10010

main71931-10010-16iCV1#,SV11..5D198408-198610

W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4#

sub71931-10010

main71931-10010-25iSV1#..(GL,GLI)..5D198210-198406

W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#

sub71931-10010

71970HEADREST ASSY, REAR SEAT

main71940-32040-03iSV1#..(GL,GLI)..5D198210-198308

FB,GRAY,GRAY,TRIM1#

main71940-32040-04iSV1#..(GL,GLI)..5D198210-198308

FB,BLUE,BLUE,TRIM8#

main71940-32040-06iSV1#..(GL,GLI)..5D198210-198308

FB,BROWN,BROWN,TRIM4#

main71940-32060-03iSV1#..(GL,GLI)..5D198308-198406

FB,GRAY,GRAY,TRIM1#

main71940-32060-05iSV1#..(GL,GLI)..5D198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71940-32060-14iSV1#..(GL,GLI)..5D198308-198406

FB,BLUE,BLUE,TRIM8#

main71940-32100-03iCV10,SV11..5D198406-198508

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71940-32100-04iCV10,SV11..5D198406-198508

BLUE,BLUE,TRIM8#

main71940-32100-05iCV10,SV11..5D198408-198508

BEIGE,BEIGE,TRIM4#

main71940-32140-03iCV11,SV11..5D198508-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71940-32140-04iCV11,SV11..5D198508-198610

BLUE,BLUE,TRIM8#

main71940-32140-05iCV11,SV11..5D198508-198610

BEIGE,BEIGE,TRIM4#

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72601-16040iCV1#,SV1#..5D198210-198610

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-32020iCV1#,SV1#..5D198210-198610

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-32020iCV1#,SV1#..5D198210-198610

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-32010-03iSV1#..5D198210-198406

RH,GRAY,GRAY,TRIM1#

sub72615-32010

main72615-32010-04iCV1#,SV1#..5D198210-198610

RH,BLUE,BLUE,TRIM8#

sub72615-32010

main72615-32010-05iCV1#,SV1#..5D198408-198610

RH,BEIGE,BEIGE,TRIM4#

sub72615-32010

main72615-32010-06iSV1#..5D198210-198406

RH,BROWN,BROWN,TRIM4#

sub72615-32010

main72615-32010-13iCV1#,SV1#..5D198406-198610

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72615-32010

main72616-32010-03iSV1#..5D198210-198406

LH,GRAY,GRAY,TRIM1#

sub72616-32010

main72616-32010-04iCV1#,SV1#..5D198210-198610

LH,BLUE,BLUE,TRIM8#

sub72616-32010

main72616-32010-05iCV1#,SV1#..5D198408-198610

LH,BEIGE,BEIGE,TRIM4#

sub72616-32010

main72616-32010-06iSV1#..5D198210-198406

LH,BROWN,BROWN,TRIM4#

sub72616-32010

main72616-32010-13iCV1#,SV1#..5D198406-198610

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72616-32010

72646GROMMET, REAR SEATBACK STOP BUTTON

main72655-20020-13iCV1#,SV1#..5D198210-198610

GRAY,GRAY,TRIM1#

sub72655-20020

sub72646-20050

main72655-20020-14iCV1#,SV1#..5D198210-198610

BLUE,BLUE,TRIM8#

sub72655-20020

sub72646-20050

main72655-20020-15iSV1#..5D198210-198406

BEIGE,BEIGE,TRIM4#

sub72655-20020

sub72646-20050

main72655-20020-45iCV1#,SV1#..5D198408-198610

BEIGE,BEIGE,TRIM4#

sub72655-20020

sub72646-20050

72656BUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-13iCV1#,SV1#..5D198210-198610

GRAY,GRAY,TRIM1#

sub72656-20010

main72656-20010-14iCV1#,SV1#..5D198210-198610

BLUE,BLUE,TRIM8#

sub72656-20010

main72656-20010-15iSV1#..5D198210-198406

BEIGE,BEIGE,TRIM4#

sub72656-20010

main72656-20010-35iCV1#,SV1#..5D198408-198610

BEIGE,BEIGE,TRIM4#

sub72656-20010

72660ASUPPORT ASSY, REAR SEAT CUSHION

main72660-32010-03iSV1#..5D198210-198406

GRAY,GRAY,TRIM1#

main72660-32010-04iCV1#,SV1#..5D198210-198610

BLUE,BLUE,TRIM8#

main72660-32010-05iCV1#,SV1#..5D198408-198610

BEIGE,BEIGE,TRIM4#

main72660-32010-06iSV1#..5D198210-198406

BROWN,BROWN,TRIM4#

main72660-32010-13iCV1#,SV1#..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

72665COVER, REAR SEATBACK LOCK, RH

main72665-32010-03iSV1#..5D198210-198406

GRAY,GRAY,TRIM1#

sub72665-32010

main72665-32010-04iCV1#,SV1#..5D198210-198610

BLUE,BLUE,TRIM8#

sub72665-32010

main72665-32010-05iCV1#,SV1#..5D198408-198610

BEIGE,BEIGE,TRIM4#

sub72665-32010

main72665-32010-06iSV1#..5D198210-198406

BROWN,BROWN,TRIM4#

sub72665-32010

main72665-32010-13iCV1#,SV1#..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72665-32010

72666COVER, REAR SEATBACK LOCK, LH

main72666-32010-03iSV1#..5D198210-198406

GRAY,GRAY,TRIM1#

sub72666-32010

main72666-32010-04iCV1#,SV1#..5D198210-198610

BLUE,BLUE,TRIM8#

sub72666-32010

main72666-32010-05iCV1#,SV1#..5D198408-198610

BEIGE,BEIGE,TRIM4#

sub72666-32010

main72666-32010-06iSV1#..5D198210-198406

BROWN,BROWN,TRIM4#

sub72666-32010

main72666-32010-13iCV1#,SV1#..5D198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72666-32010

72681HOOK, REAR SEATBACK LOCK, LOWER

main72681-16010-04iCV1#,SV1#..5D198210-198610

BLUE,BLUE,TRIM8#

sub72681-16010

main72681-16010-05iCV1#,SV1#..5D198408-198610

BEIGE,BEIGE,TRIM4#

sub72681-16010

main72681-16010-06iSV1#..5D198210-198406

BROWN,BROWN,TRIM4#

sub72681-16010

main72681-16010-13iSV1#..5D198210-198406

GRAY,GRAY,TRIM1#

sub72681-16010

main72681-16010-33iCV1#,SV1#..5D198406-198610

SHADOW GRAY,GRAY,TRIM1#

sub72681-16010

9011906123

main90119-06123

9011906172

main90119-06172

9011908160

main90119-08160

9011908408

main90119-08408

9016840058

main90168-40058

9165160818

main91651-60818

9165560616

main91655-60616

9165560820

main91655-60820

9165560825

main91655-60825

9338516016

main93385-16016

9353024516

main93530-24516

9354054012

main93540-54012

52 parts on this diagram · 2 diagrams in section
