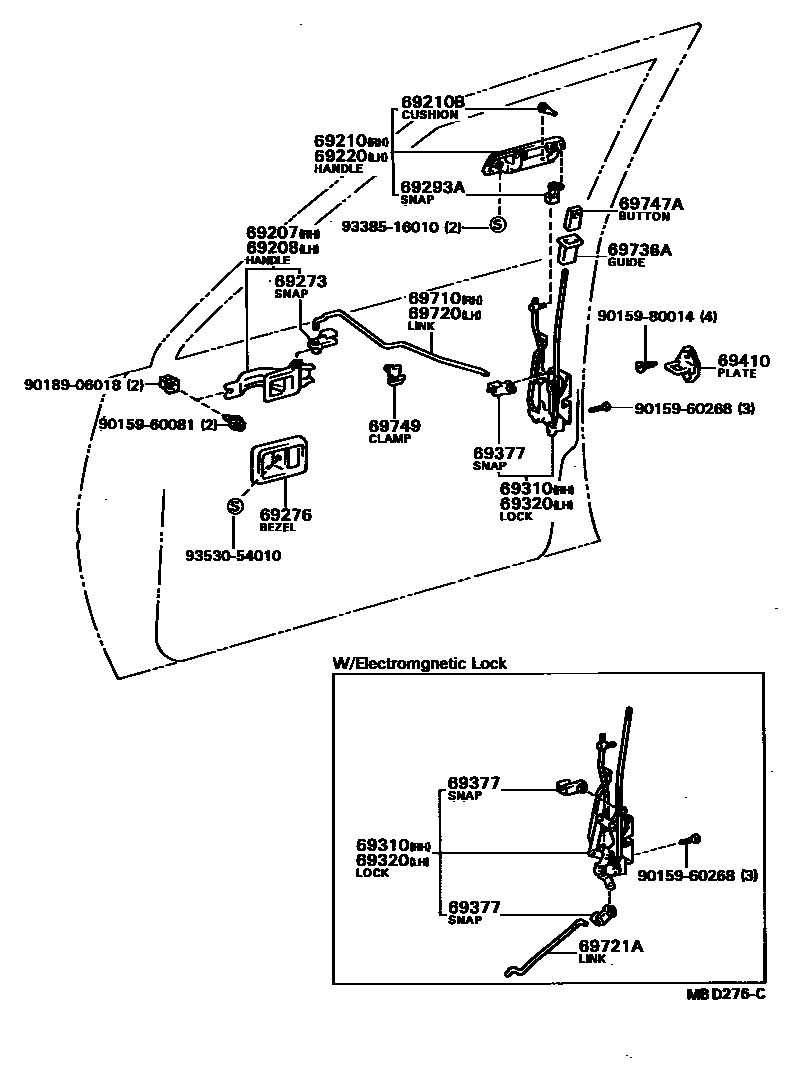

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273SNAP, DOOR INSIDE HANDLE ROD
RH
RH
LH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
SHADOW GRAY,GRAY,TRIM1#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W/O *EL
W/O *EL
W/*EL
W/*EL
W/*EL
69320LOCK ASSY, FRONT DOOR, LH
W/O *EL
W/*EL
W/O *EL
W/*EL
69377SNAP, FRONT DOOR LOCK CONTROL ROD
GREEN
GRAY
ORANGE
VIOLET
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69721ALINK, FRONT DOOR LOCK ACTUATOR
W/*EL
69736AGUIDE, FRONT DOOR LOCK LINK
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
SHADOW GRAY,GRAY,TRIM1#
69749CLAMP, FRONT DOOR LOCK LINK
9015960081
9015960268
9015980014
9018906018
9338516010
9353054010
24 parts on this diagram · 1 diagram in section
