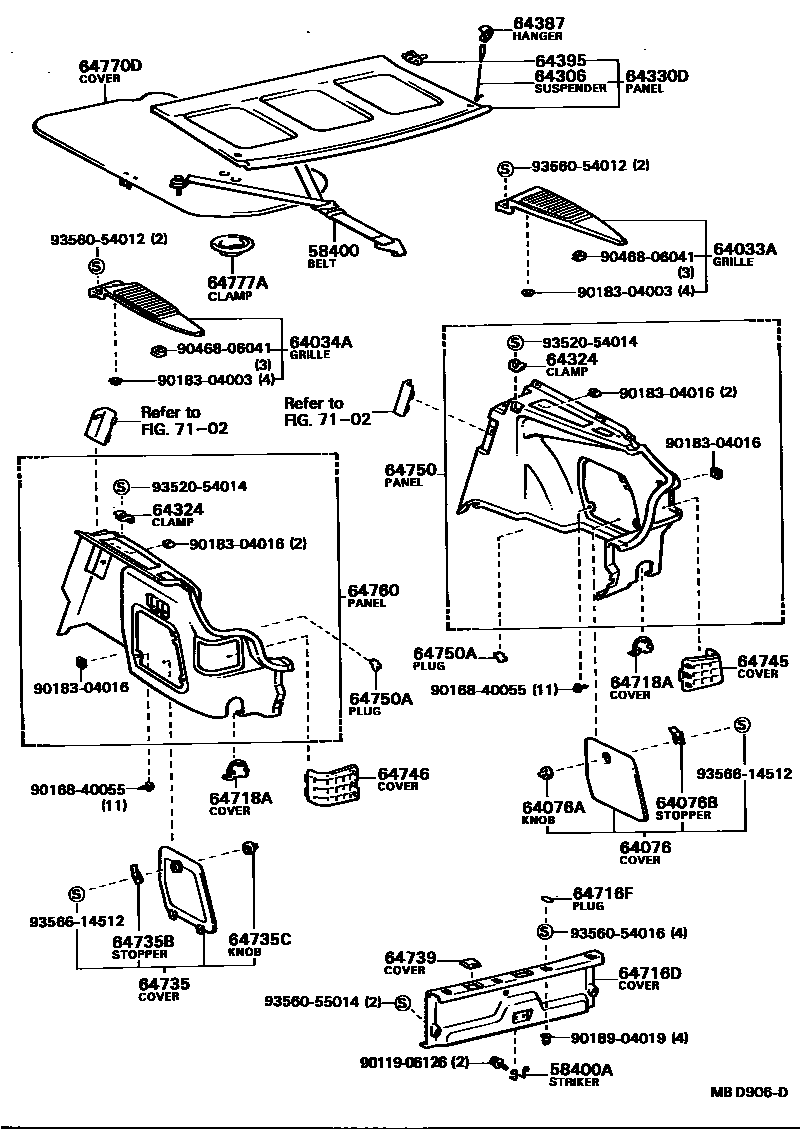

DECK BOARD & DECK TRIM COVER
58400BELT ASSY, LUGGAGE HOLD, NO.1
58400ASTRIKER, LUGGAGE HOLD BELT
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
64076COVER, DECK TRIM SIDE JACK
64076AKNOB, DECK TRIM SIDE JACK COVER
64076BSTOPPER, DECK TRIM SIDE JACK COVER
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
sub64306-12030
64324CLAMP, PACKAGE TRAY TRIM, NO.2
64330DPANEL ASSY, PACKAGE TRAY TRIM
64387HANGER, PACKAGE TRAY TRIM
64395PIN, PACKAGE TRAY TRIM HINGE
RH
LH
64716DCOVER, DECK TRIM, REAR
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
64735COVER, DECK TRIM SIDE SERVICE HOLE
64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER
64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER
64739COVER, DECK TRIM SIDE WASHER
64745COVER, REAR COMBINATION LAMP SERVICE, RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
64750PANEL ASSY, DECK SIDE TRIM, RH
64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)
64760PANEL ASSY, DECK SIDE TRIM, LH
64770DCOVER ASSY, SPARE WHEEL
64777ACLAMP, SPARE WHEEL COVER
sub64777-32030
7102
9011906126
main90119-06126
9016840055
main90168-40055
9018304003
main90183-04003
9018304016
main90183-04016
9018904019
main90189-04019
9046806041
main90468-06041
9352054014
main93520-54014
9356054012
main93560-54012
9356054016
main93560-54016
9356055014
main93560-55014
9356614512
main93566-14512
38 parts on this diagram · 1 diagram in section
