SIDE MEMBER
61007PILLAR SUB-ASSY, CENTER, RH
61008PILLAR SUB-ASSY, CENTER, LH
61104PILLAR SUB-ASSY, FRONT BODY, LH
W/POWER WINDOW
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61301BPILLAR, CENTER BODY, OUTER RH
61302BPILLAR, CENTER BODY, OUTER LH
61343PILLAR, CENTER BODY, INNER UPPER RH
61344PILLAR, CENTER BODY, INNER UPPER LH
61611PANEL, QUARTER, RH
sub61601-32050
sub61601-32902
61612PANEL, QUARTER, LH
W/O FUEL FILLER LID OPENER
W/FUEL FILLER LID OPENER
sub61602-32903
W/O FUEL FILLER LID OPENER
W/FUEL FILLER LID OPENER
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61733BPANEL, ROOF SIDE, INNER REAR RH
61733CREINFORCEMENT, ROOF SIDE, INNER RH
61734BPANEL, ROOF SIDE, INNER REAR LH
61734CREINFORCEMENT, ROOF SIDE, INNER LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
sub62939-23010
61827APLATE, NOISE CONTROL, NO.4
sub62939-23010
64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH
64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH
64124ARAIL, UPPER BACK PANEL
RH
LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
67812APAD, QUARTER PANEL SILENCER
40X20
7601
9033330002
main90333-30002
9095001027
main90950-01027
9095001056
main90950-01056
9163140612
main91631-40612

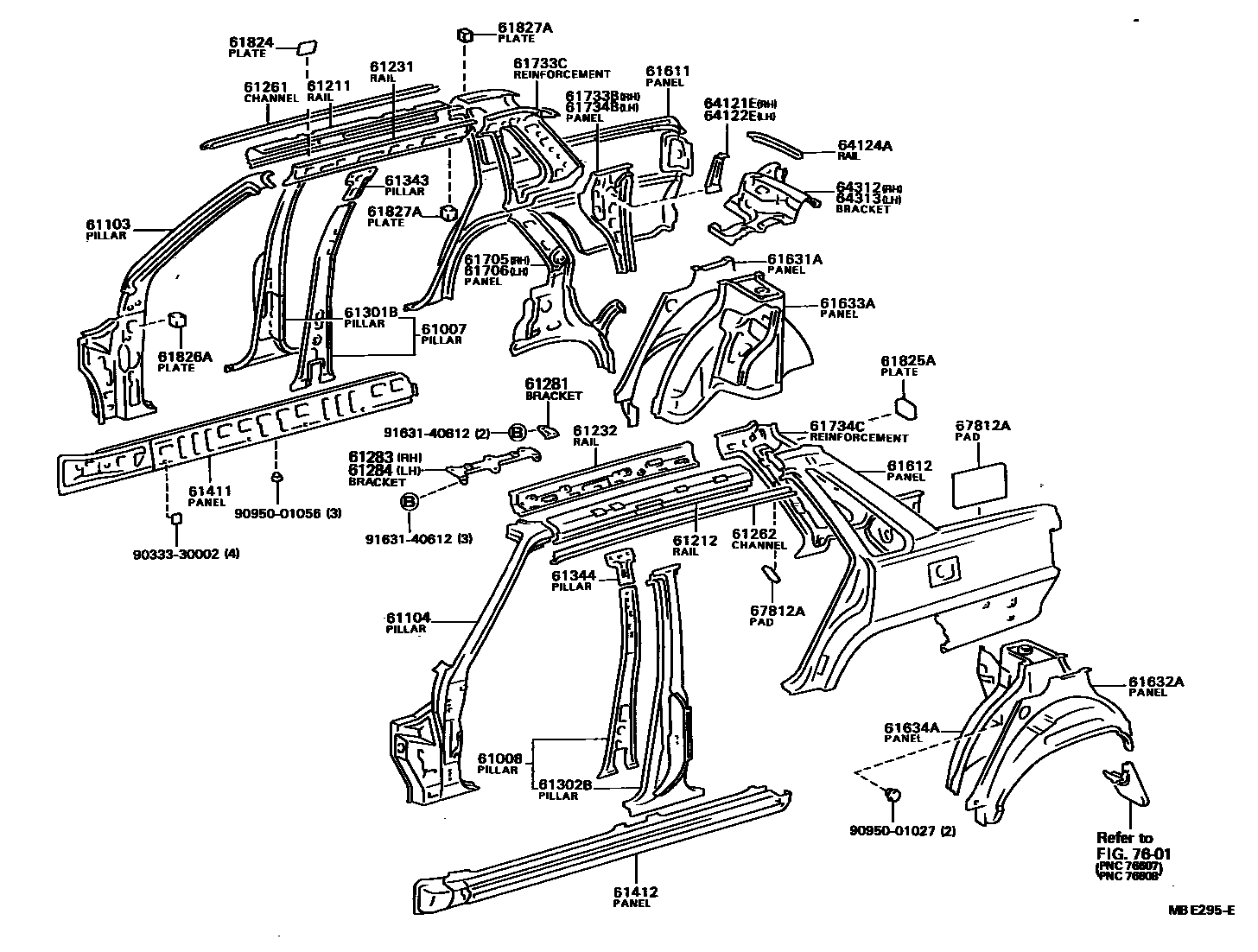

46 parts on this diagram · 2 diagrams in section
