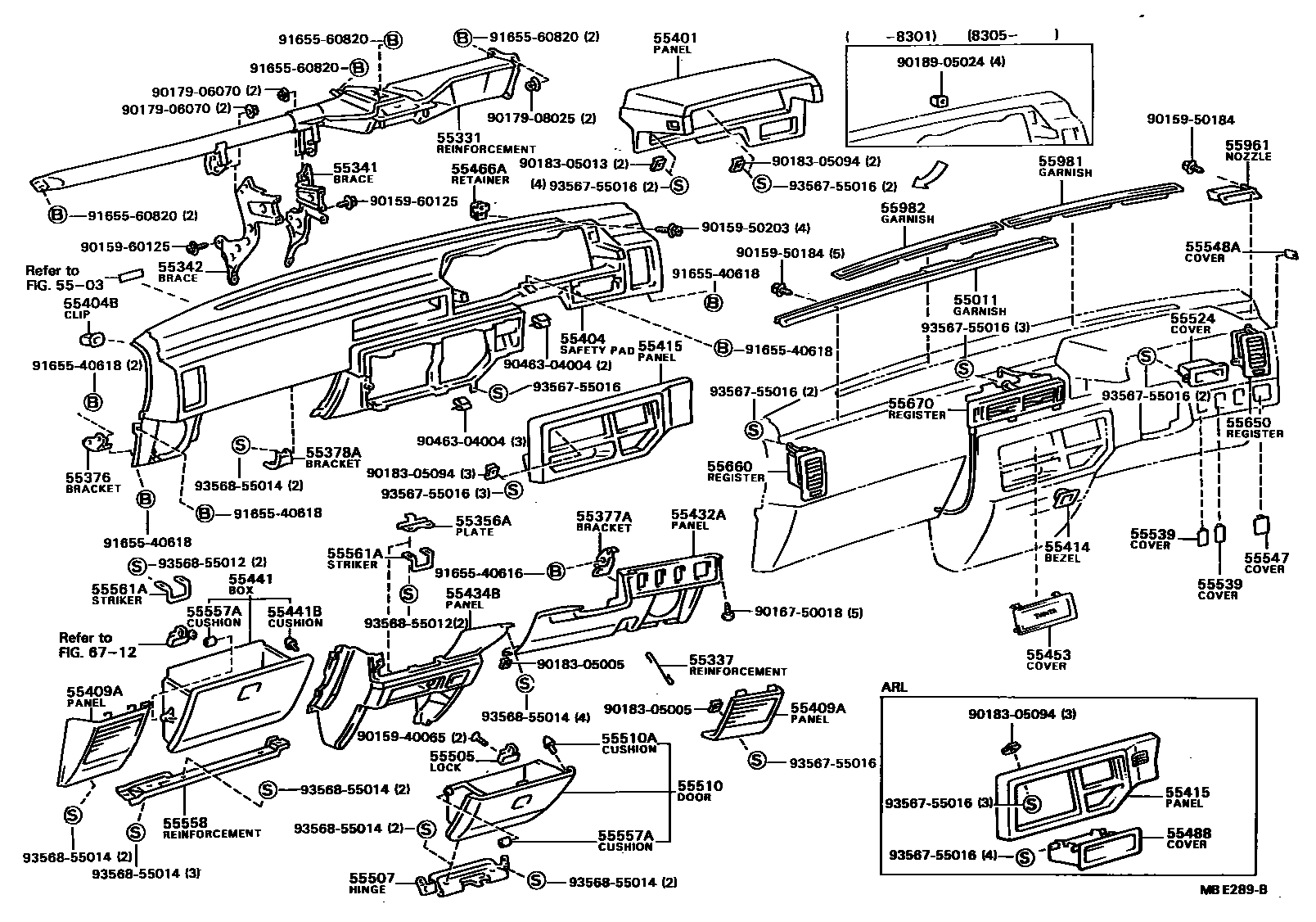

INSTRUMENT PANEL & GLOVE COMPARTMENT
55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
5503
55337REINFORCEMENT, INSTRUMENT PANEL SUB
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55356APLATE, INSTRUMENT PANEL, LOWER
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
DARK GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
DARK GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
DARK GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
DARK GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
55404BCLIP, SAFETY PAD SET
sub90467-14007
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
55414BEZEL, CIGAR LIGHTER HOLE
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
BLACK,BLACK,TRIM1#,8#
DARK GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DEEP BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
SWISS SPEC,DARK GRAY,GRAY,TRIM1#
sub55405-32060
SWISS SPEC,DARK BROWN,BROWN,TRIM4#
sub55405-32060
BLACK,BLACK,TRIM1#,8#
DARK GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DEEP BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
*IPM,SHADOW GRAY,SHADOW GRAY,TRIM1#
*IPM,BLUE,BLUE,TRIM8#
*IPM,BEIGE,BEIGE,TRIM4#
*IPM,SHADOW GRAY,SHADOW GRAY,TRIM1#
*IPM,BLUE,BLUE,TRIM8#
*IPM,BEIGE,BEIGE,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55441BOX, INSTRUMENT PANEL
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
55441BCUSHION, INSTRUMENT PANEL BOX
55453COVER, RADIO TUNER OPENING
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
55488COVER, STEREO OPENING
SWISS SPEC
W/RADIO
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55510DOOR ASSY, GLOVE COMPARTMENT
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55524COVER, SWITCH BACE HOLE
55539COVER, SPARE SWITCH HOLE
55547COVER, REMOTE CONTROL MIRROR HOLE
55548ACOVER, INSTRUMENT PANEL HOLE
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55961NOZZLE, SIDE DEFROSTER, NO.1
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
6712
9015940065
main90159-40065
9015950184
main90159-50184
9015950203
main90159-50203
9015960125
main90159-60125
9016750018
main90167-50018
9017906070
main90179-06070
9017908025
main90179-08025
9018305005
main90183-05005
9018305013
main90183-05013
9018305094
main90183-05094
9018905024
main90189-05024
9046304004
main90463-04004
9165540616
main91655-40616
9165540618
main91655-40618
9165560820
main91655-60820
9356755016
main93567-55016
9356855012
main93568-55012
9356855014
main93568-55014
59 parts on this diagram · 4 diagrams in section
