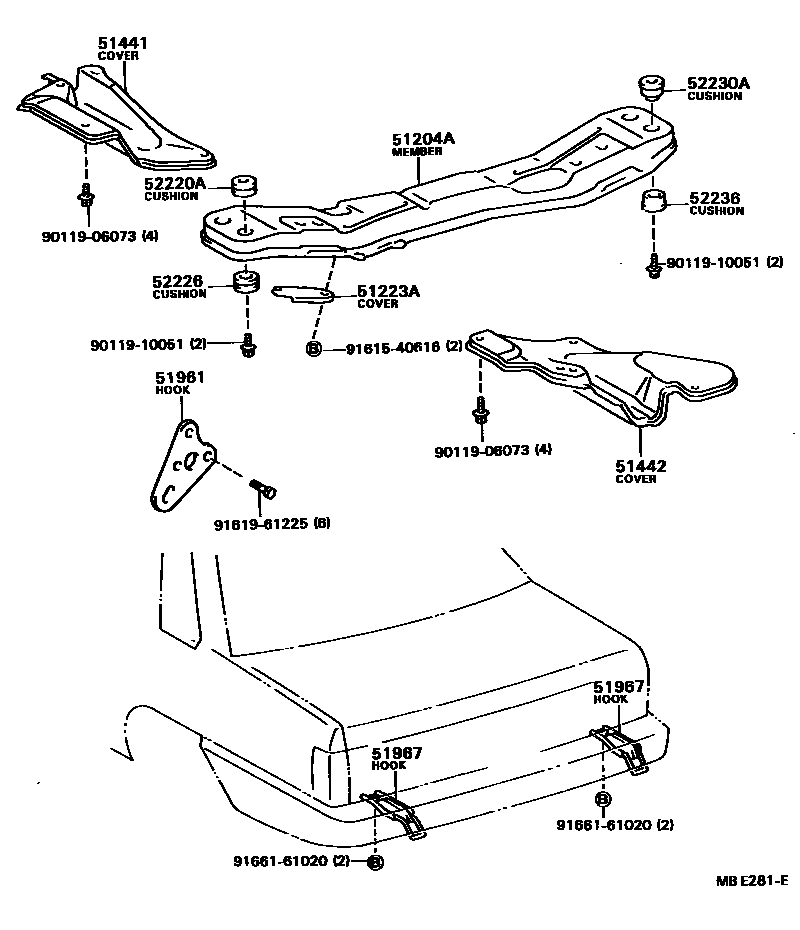

SUSPENSION CROSSMEMBER & UNDER COVER

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32010iCV1#,SV1#198210-198610

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32010iCV1#,SV1#198210-198610

51441COVER, ENGINE UNDER, NO.1

main51441-32010iSV1#198210-198610

main51441-32020iCV1#198308-198610

51442COVER, ENGINE UNDER, NO.2

main51442-32010iCV10,SV1#..5F198210-198610

main51442-32020iCV10,SV1#..4FC198210-198610

51961HOOK, NO.1

main51963-32010iCV10,SV1#198210-198406

main51963-32020iCV1#,SV1#198406-198610

51967HOOK, TRANSPORT, REAR

main51095-32010iCV1#,SV1#..EUR198406-198610

W/P.P. BUMPER

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32010iSV1#198210-198610

main52220-32020iCV1#198308-198610

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010iSV1#198210-198610

main52226-32020iCV1#198308-198610

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32010iSV1#198210-198610

main52230-32020iCV1#198308-198610

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32010iSV1#198210-198610

main52236-32020iCV1#198308-198610

9011906073

main90119-06073

9011910051

main90119-10051

9161540616

main91615-40616

9161961225

main91619-61225

9166161020

main91661-61020

15 parts on this diagram · 1 diagram in section
