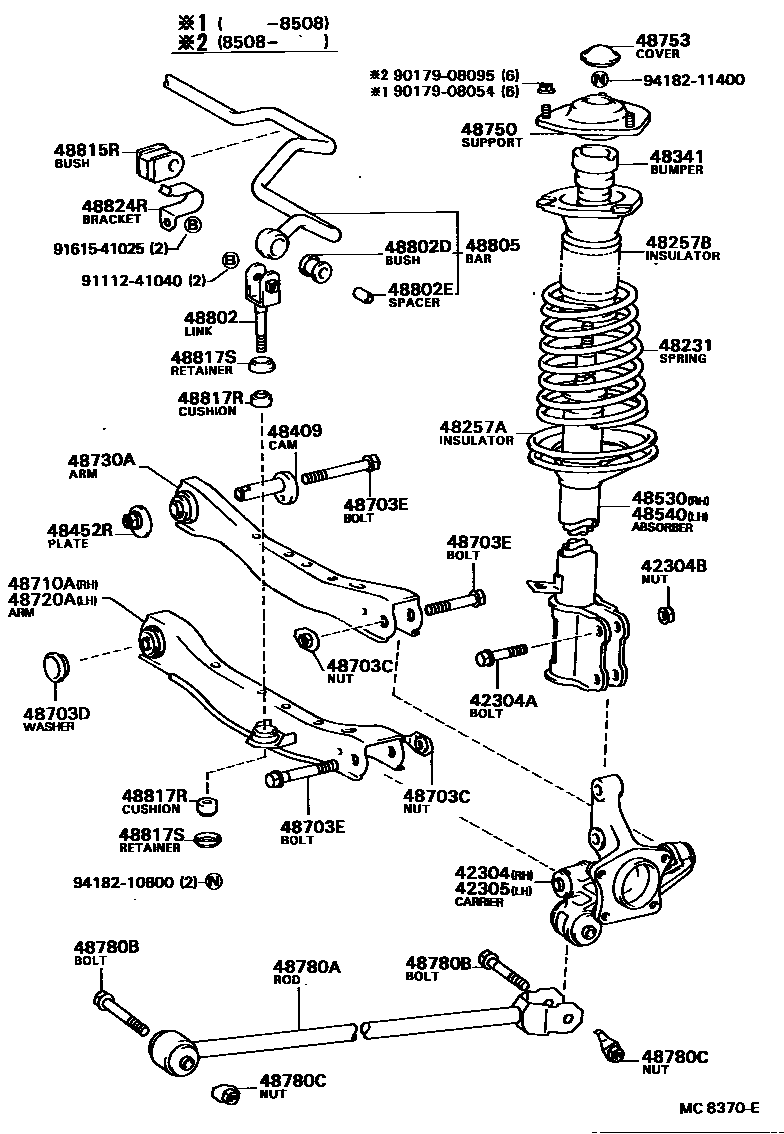

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-32010iCV1#,SV1#198210-198610

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-12042iCV1#,SV1#198210-198610

sub90105-12263

42304BNUT (FOR REAR AXLE CARRIER)

main90179-12025iCV1#,SV1#198210-198610

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-32010iCV1#,SV1#198210-198610

48231SPRING, COIL, REAR

main48231-32080iSV10..5D198210-198212

sub48231-32081

main48231-32081iSV1#..5D198212-198406

main48231-32120iSV10..4D198210-198212

sub48231-32121

main48231-32121iCV10,SV1#..4D198212-198406

sub48231-1A550

main48231-32190iCV1#,SV1#..4D198406-198610

main48231-32220iCV1#,SV1#..5D198406-198610

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-16010iCV1#,SV1#198212-198610

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-32030iCV1#,SV1#198210-198610

48341BUMPER, REAR SPRING

main48341-32020iCV1#,SV1#198210-198610

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-32010iCV1#,SV1#198210-198610

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32010iCV1#,SV1#198210-198610

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-32040iSV10198210-198212

sub48530-32H00

main48530-32041iCV1#,SV1#198212-198610

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-32040iSV10198210-198212

sub48540-32H00

main48540-32041iCV1#,SV1#198212-198610

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12023iCV1#,SV1#198210-198610

ARM NO.1(CARRIER SIDE)

main90179-12028iCV1#,SV1#198210-198610

ARM NO.1(BODY SIDE) & ARM NO.2

48703DWASHER(FOR REAR SUSPENSION ARM)

main90209-13005iCV1#,SV1#198210-198610

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-10052iCV1#,SV1#198210-198610

*10-1.25PX77-20,ARM NO.2

main90105-12035iCV1#,SV1#198210-198610

*12-1.25PX78-25,ARM NO.1

main90105-12037iCV1#,SV1#198210-198610

*12-1.25PX60-25,ARM NO.2

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-32010iCV1#,SV1#198210-198512

sub48710-32011

main48710-32011iCV11,SV1#198512-198610

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-32010iCV1#,SV1#198210-198512

sub48720-32011

main48720-32011iCV11,SV1#198512-198610

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-32010iCV1#,SV1#198210-198512

sub48730-32011

main48730-32011iCV11,SV1#198512-198610

48750SUPPORT ASSY, REAR SUSPENSION

main48750-32010iCV1#,SV1#198210-198610

48753COVER, REAR SUSPENSION SUPPORT

main48753-16010iCV11,SV1#198508-198610

main48753-32010iCV10,SV1#198210-198508

48780AROD ASSY, STRUT, REAR

main48780-32010iCV1#,SV1#198210-198610

48780BBOLT(FOR STRUT ROD)

main90105-12035iCV1#,SV1#198210-198610

48780CNUT(FOR STRUT ROD)

main90179-12023iCV1#,SV1#198210-198610

CARRIER SIDE

main90179-12028iCV1#,SV1#198210-198610

BODY SIDE

48802LINK SUB-ASSY, STABILIZER

main48802-32010iCV1#,SV1#198210-198610

48802DBUSH, STABILIZER LINK

main90385-11021iCV1#,SV1#198210-198610

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iCV1#,SV1#198210-198610

48805BAR SUB-ASSY, REAR STABILIZER

main48805-32010iSV1#..5D198210-198610

W/POWER STEERING

main48805-32010iCV10198308-198406

main48805-32050iSV1#198210-198406

main48805-32110iCV1#,SV1#..4D198406-198610

main48805-32140iCV1#..5D198406-198610

W/POWER STEERING

48815RBUSH, STABILIZER(FOR REAR)

main48818-20030iCV1#,SV1#..4D198406-198610

main48818-20040iCV1#..4D198406-198610

W/POWER STEERING

main48818-32010iSV1#198210-198610

W/POWER STEERING

main48818-32010iCV10198308-198406

main48818-32030iSV1#198210-198406

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iCV1#,SV1#198210-198610

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iCV1#,SV1#198210-198610

48824RBRACKET, STABILIZER(FOR REAR)

main48832-32010iCV1#,SV1#198210-198610

9017908054

main90179-08054

9017908095

main90179-08095

9111241040

main91112-41040

9161541025

main91615-41025

9418210800

main94182-10800

9418211400

main94182-11400

37 parts on this diagram · 1 diagram in section
