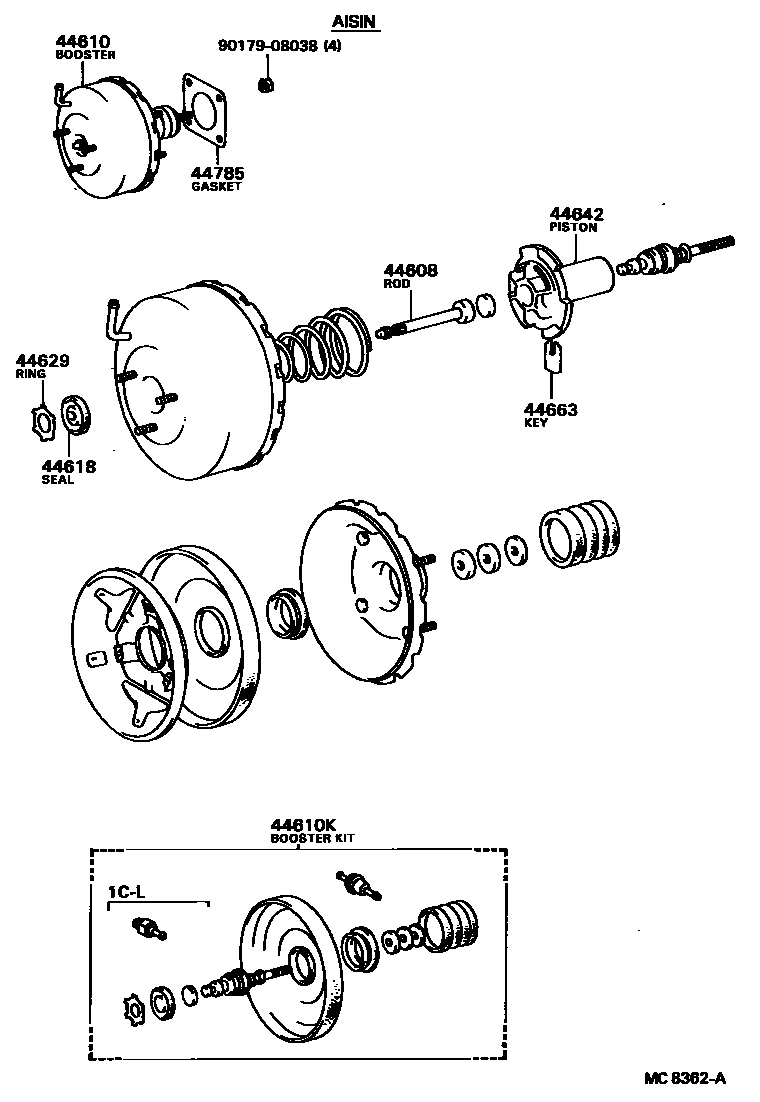

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCV1#,SV1#¥2,660198406-198610

main44606-32010iCV10,SV1#198210-198406

44610BOOSTER ASSY, BRAKE

main44610-32050iSV10..RHD¥46,200198210-198301

sub44610-32051¥45,900

main44610-32051iCV10,SV1#..RHD¥45,900198301-198406

sub44610-32110¥45,900

main44610-32070iSV10..LHD¥46,200198210-198301

sub44610-32071¥45,900

main44610-32071iCV10,SV1#..LHD¥45,900198301-198406

sub44610-32130¥45,900

main44610-32110iCV1#,SV1#..RHD¥45,900198406-198610

main44610-32130iCV1#,SV1#..LHD¥45,900198406-198610

44610KBOOSTER KIT, BRAKE

main04443-32030iSV1#¥11,400198210-198406

sub04443-32031¥11,600

main04443-32031iSV1#¥11,600198406-198610

main04443-32120iCV10¥11,400198308-198406

sub04443-32121¥11,800

main04443-32121iCV1#¥11,800198406-198610

44618SEAL, BOOSTER BODY

main44621-28120iCV1#,SV1#¥590198210-198610

44629RING, CIRCULAR INTERNAL

main44628-28120iCV1#,SV1#¥390198210-198610

44642PISTON, BRAKE BOOSTER

main44642-32010iCV1#,SV1#¥6,100198210-198610

44663KEY, VALVE STOPPER

main44635-28120iCV1#,SV1#¥370198210-198610

44785GASKET, BRAKE BOOSTER

main44785-32010iCV1#,SV1#¥220198210-198610

9017908038

main90179-08038¥130

9 parts on this diagram · 4 diagrams in section
