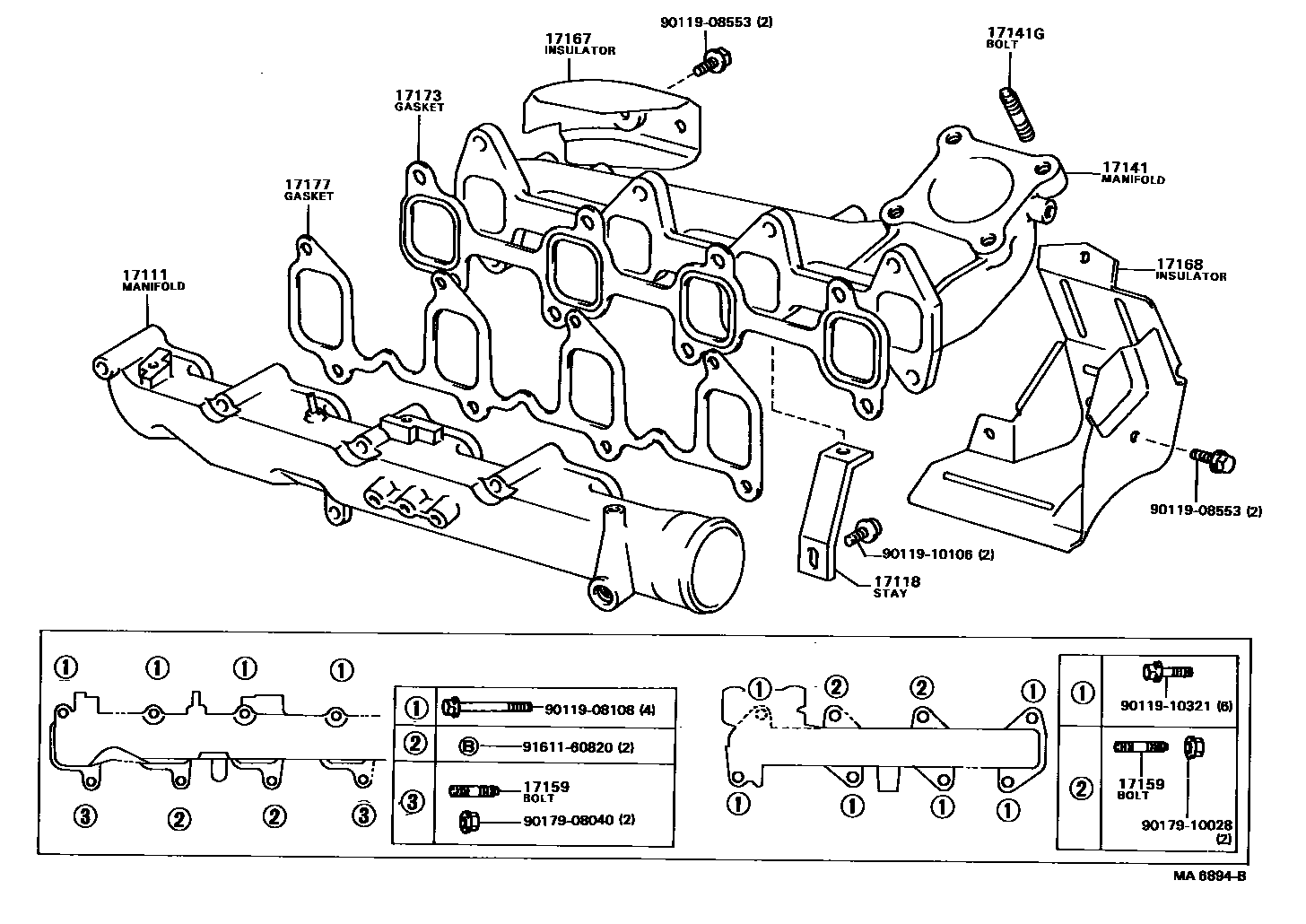

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

17111MANIFOLD, INTAKE

main17101-64030i1CTL..CV10198308-198508

main17111-63020i1SL..SV10198210-198512

main17111-63040i1SL..SV10198512-198610

main17111-64090i2CTL..CV11198508-198610

main17111-74011i2SE#..SV11198303-198610

17118STAY, MANIFOLD

main17118-63030i2SELC..SV11198508-198610

main17118-64020i1CTL,2CTL..CV1#198308-198610

main17118-74010i2SEL..SV11198303-198610

17141MANIFOLD, EXHAUST

main17141-63050i1SL..SV10198210-198503

sub17141-63051

main17141-63051i1SL..SV10198503-198610

main17141-64030i1CTL..CV10198308-198508

main17141-64031i2CTL..CV11198508-198610

main17141-74010i2SE#..SV11198303-198503

sub17141-74011

main17141-74011i2SE#..SV11198503-198610

17141GBOLT, STUD(FOR TURBOCHARGER)

main90116-10054i1CTL,2CTL..CV1#198308-198610

sub90116-10094

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10095i1CTL,2CTL..CV1#198308-198610

EXHAUST MANIFORLD SIDE

main90116-10123i1SL,2SE#..SV1#198212-198610

main92122-60820i1CTL,2CTL..CV1#198308-198610

INTAKE MANIFORLD SIDE

main92122-61025i1SL..SV10198210-198212

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64031i1CTL,2CTL..CV1#198308-198610

main17167-74010i2SE#..SV11198303-198610

main17902-63020i1SL..SV10198210-198610

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-64020i1CTL..CV10198308-198508

main17168-64021i2CTL..CV11198508-198610

main17932-63030i1SL..SV10198210-198610

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64030i1CTL,2CTL..CV1#198308-198608

sub17173-64050

main17173-64050i2CTL..CV11198608-198610

sub17173-64051

sub17173-64080

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64010i1CTL,2CTL..CV1#198308-198610

sub17177-64020

9011908108

main90119-08108

9011908553

main90119-08553

9011910106

main90119-10106

9011910321

main90119-10321

9017908040

main90179-08040

9017910028

main90179-10028

9161160820

main91611-60820

16 parts on this diagram · 5 diagrams in section
