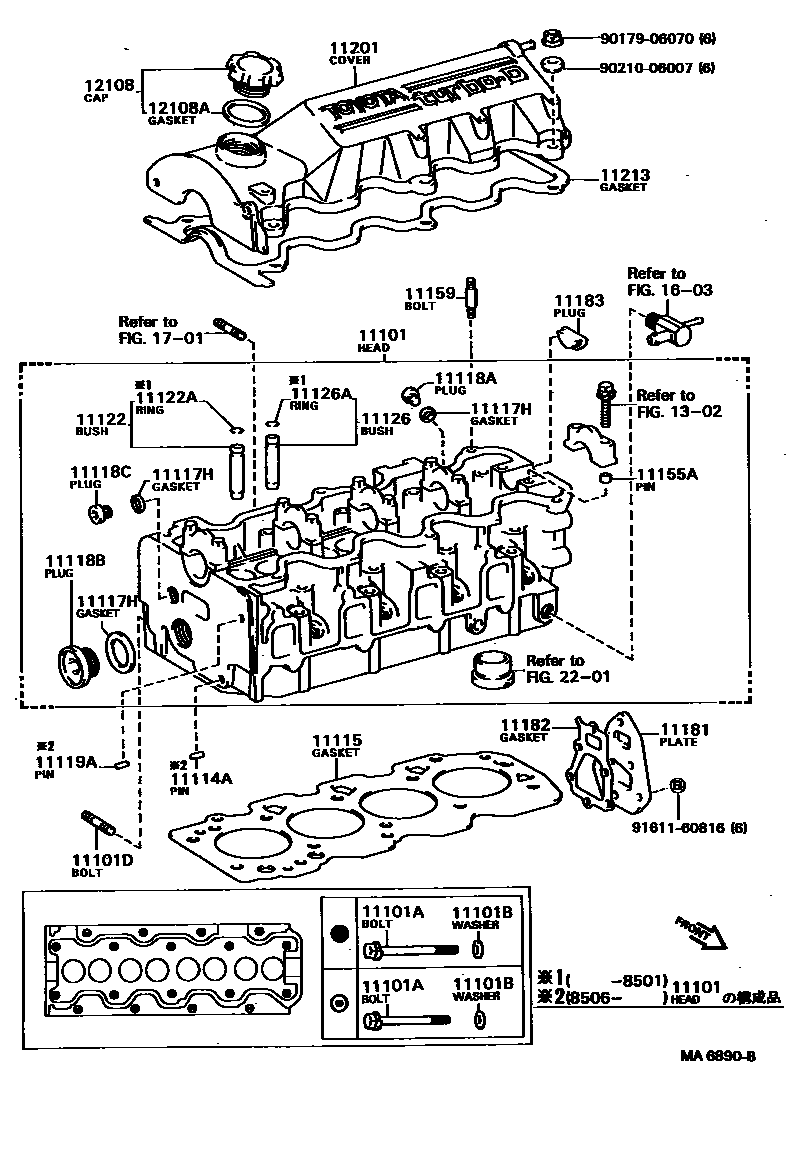

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
*11-1.25PX123-30
*11-1.25PX145-30
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11114APIN, STRAIGHT
L=11,OD=6
11115GASKET, CYLINDER HEAD
sub11115-63011
sub11115-64070
sub11115-64110
sub11115-64100
sub11115-64121
sub11115-74020
11117HGASKET(FOR WATER HOLE)
PNC 11118A
PNC 11118C
PNC 11118C
PNC 11118A
PNC 11118B
PNC 11118B
11118APLUG, STRAIGHT, NO.1
11118BPLUG, STRAIGHT, NO.2
11119APIN, STRAIGHT, NO.1
L=14,OD=6
L=11,OD=6
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
STD
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
STD,STD
STD
O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
L=105,S=12&20
11155APIN, RING W/HEAD
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=30,S=8&8
11181PLATE, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
sub11182-64020
11183PLUG, SEMICIRCULAR
12108AGASKET(FOR OIL FILLER CAP)
1302
1603
1701
2201
9017906070
main90179-06070
9021006007
main90210-06007
9161160816
main91611-60816
32 parts on this diagram · 2 diagrams in section
