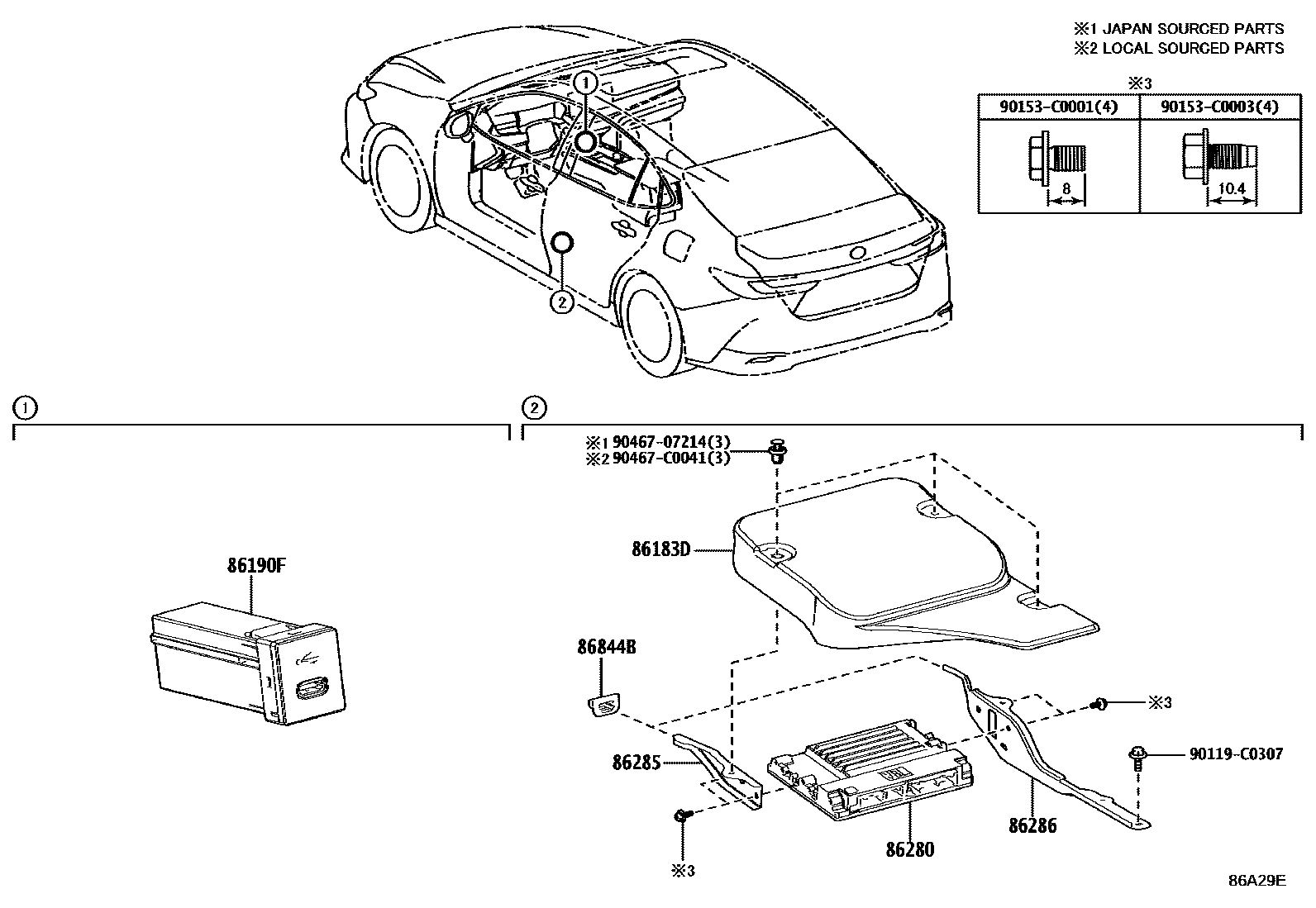

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86183DCOVER, AUDIO AMPLIFIER

main86183-06130iAXVH80..G202406

Q UP GRADE PACKAGE

86190FADAPTER ASSY, STEREO JACK

main86190-06120iAXVH80,MXVA80,MXVH80202403

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-06350iAXVH80..G202406

Q UP GRADE PACKAGE

86285BRACKET, AMPLIFIER, NO.1

main86285-06120iAXVH80..G202406

Q UP GRADE PACKAGE

86286BRACKET, AMPLIFIER, NO.2

main86286-06090iAXVH80..G202406

Q UP GRADE PACKAGE

86844BRETAINER, AUDIO AMPLIFIER COVER

main55217-32010iAXVH80..G202406

Q UP GRADE PACKAGE

90119C0307

main90119-C0307

90153C0001

main90153-C0001

90153C0003

main90153-C0003

9046707214

main90467-07214

90467C0041

main90467-C0041

11 parts on this diagram · 2 diagrams in section
