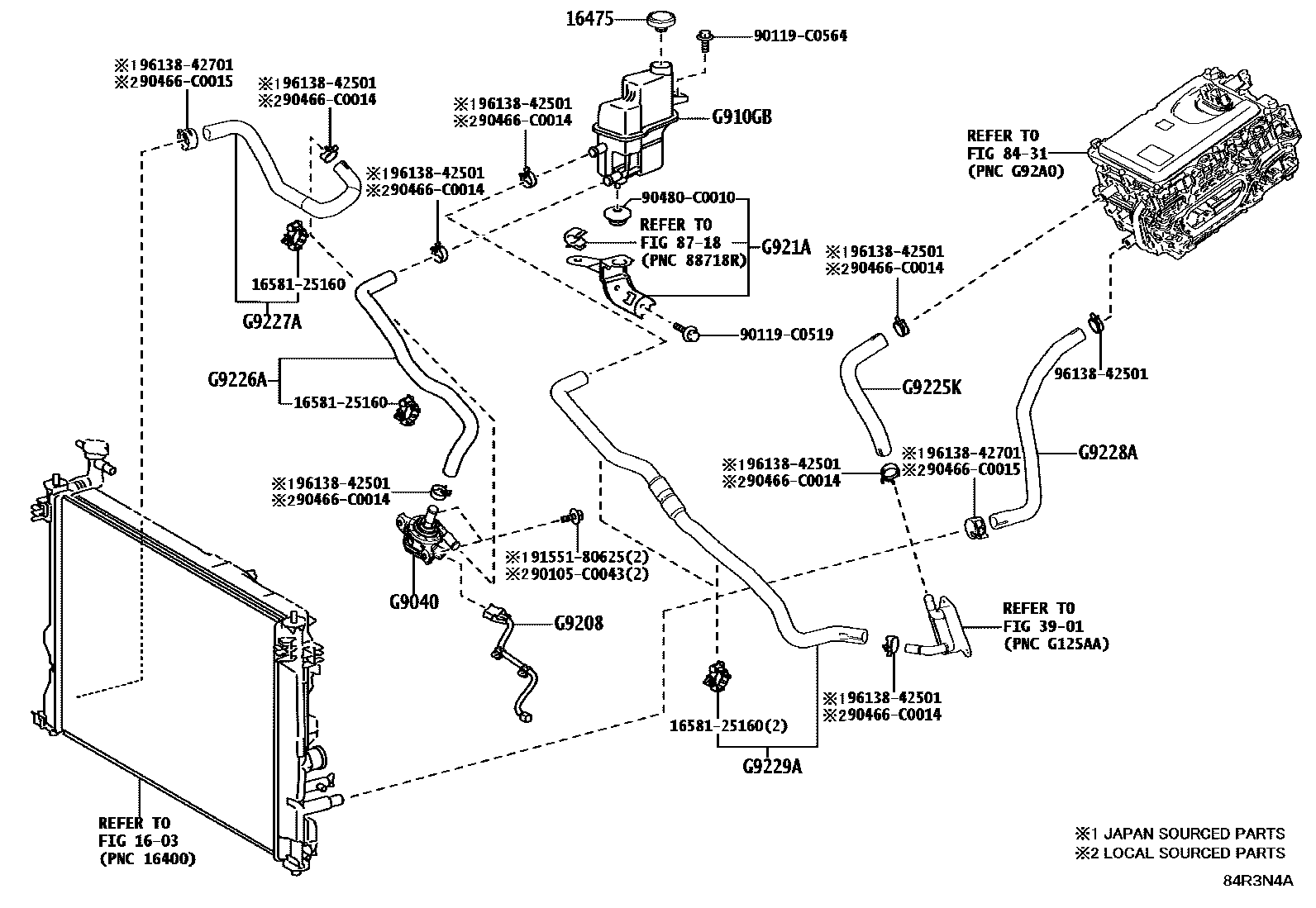

INVERTER COOLING

1603

16475CAP, RESERVE TANK

mainG91H407020iA25,M20..AXVH80,MXVH80202403

3901

8431

8718

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904006010iAXVH80,MXVH80202403

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G07030iAXVH80,MXVH80202403

G9208WIRE SUB-ASSY, INVERTER

mainG920806020iAXVH80,MXVH80202403

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H206021iAXVH80,MXVH80202403

G9225KHOSE, INVERTER COOLING, NO.1

mainG922506150iAXVH80,MXVH80202403

G9226AHOSE, INVERTER COOLING, NO.2

mainG922606062iAXVH80,MXVH80202403

G9227AHOSE, INVERTER COOLING, NO.3

mainG922706061iAXVH80,MXVH80202403

G9228AHOSE, INVERTER COOLING, NO.4

mainG922806150iAXVH80,MXVH80202403

G9229AHOSE, INVERTER COOLING, NO.5

mainG922906110iAXVH80,MXVH80202403

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

90105C0043

main90105-C0043

90119C0519

main90119-C0519

90119C0564

main90119-C0564

90466C0014

main90466-C0014

90466C0015

main90466-C0015

90480C0010

main90480-C0010

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

24 parts on this diagram · 1 diagram in section
