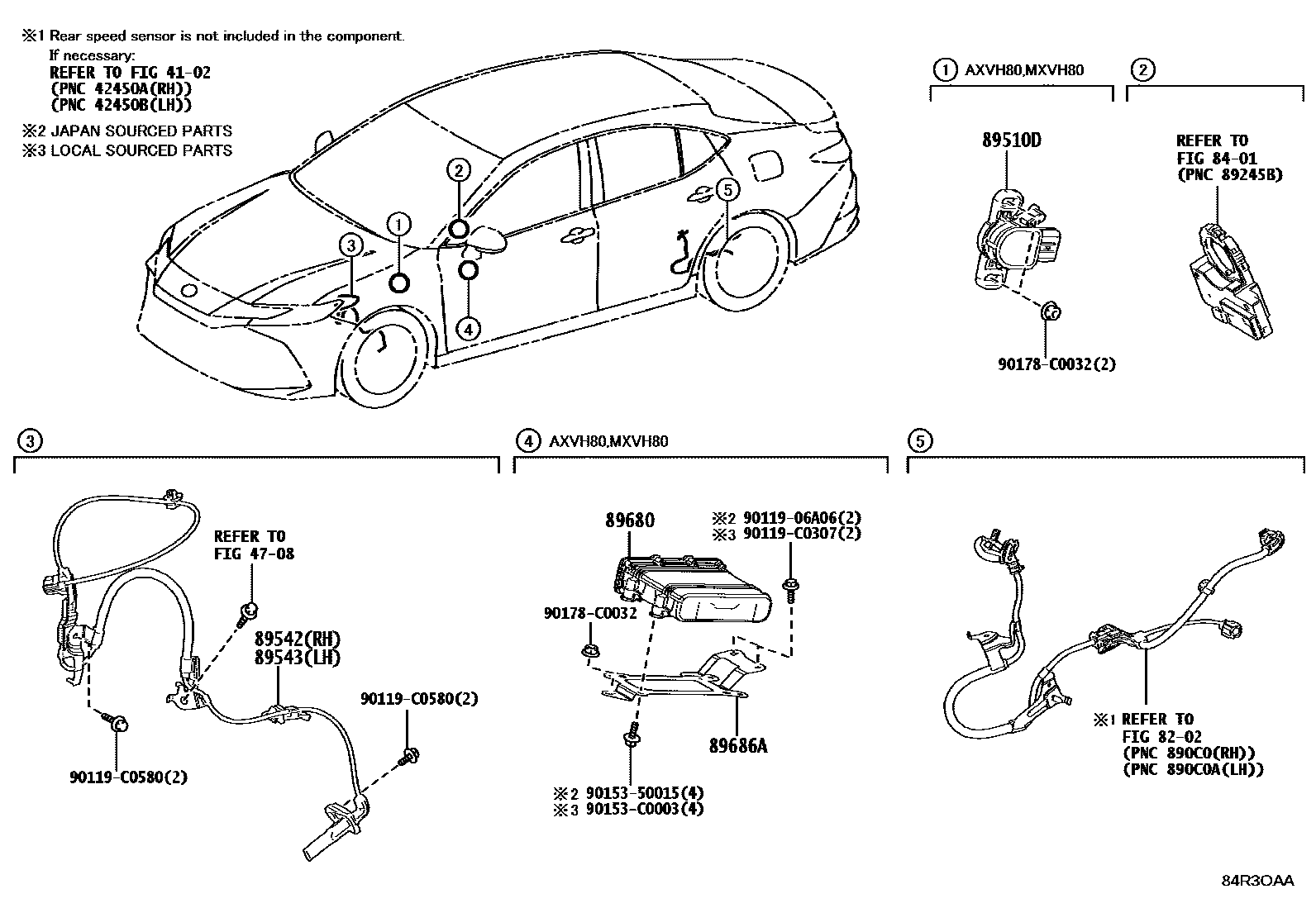

ABS & VSC

4102

4708

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-06010iAXVH80,MXVH80202403

89542SENSOR, SPEED, FRONT RH

main89542-06140iAXVH80,MXVA80,MXVH80202403

89543SENSOR, SPEED, FRONT LH

main89543-06140iAXVH80,MXVA80,MXVH80202403

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-0R010iAXVH80,MXVH80202403

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-06030iAXVH80,MXVH80202403

9011906A06

main90119-06A06

90119C0307

main90119-C0307

90119C0580

main90119-C0580

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0032

main90178-C0032

15 parts on this diagram · 1 diagram in section
