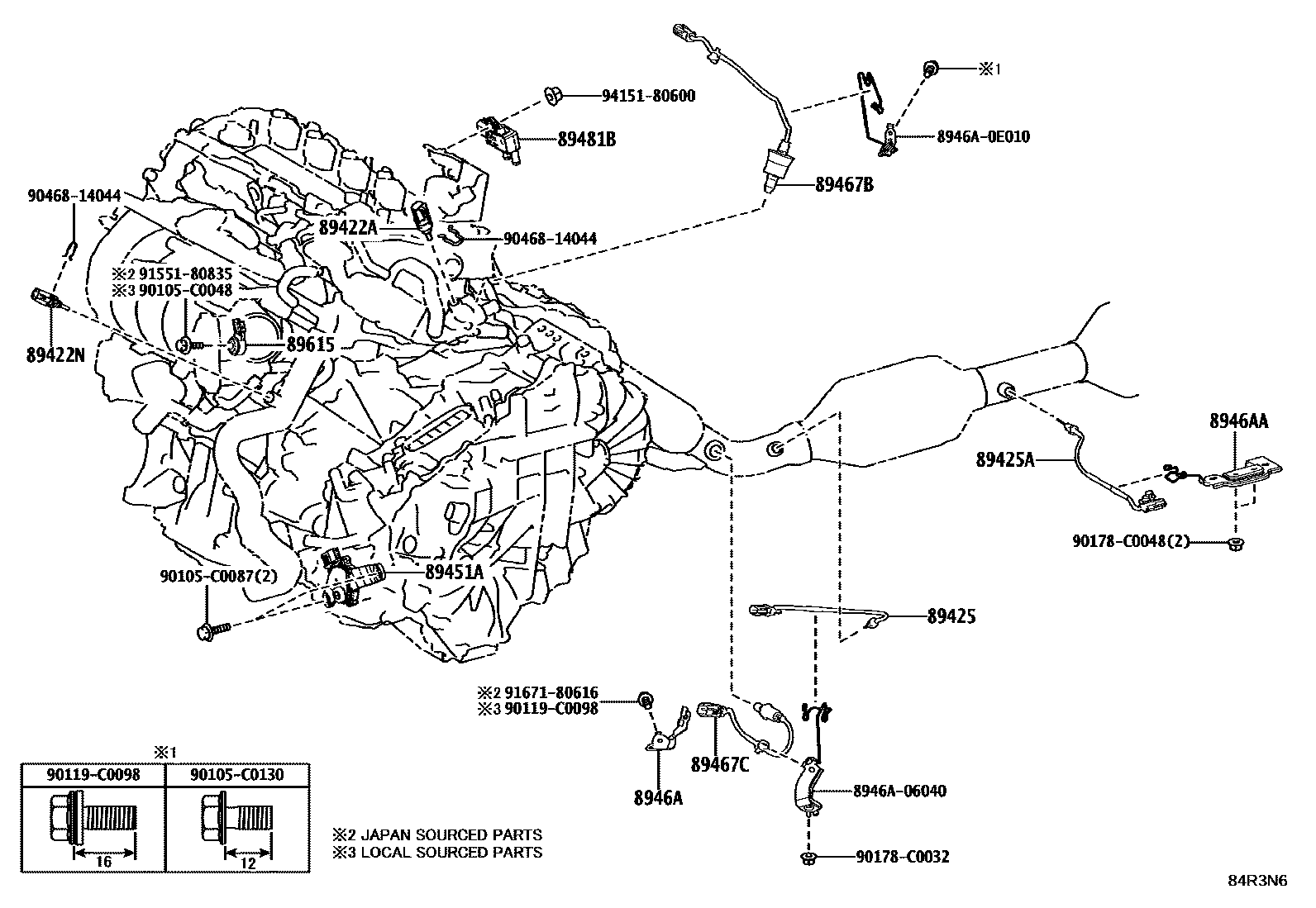

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1SEAT 0011 1DOOR,FLOOR & LUGGAGE

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXVH80,MXVA80,MXVH80202403

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXVH80,MXVH80202403

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-06030iAXVH80,MXVH80202403

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-06070iAXVH80,MXVH80202403

89451ASENSOR, SHIFT LEVER POSITION

main89451-28020iAXVH80,MXVH80202403

main89451-42010iMXVA80202403

89467BSENSOR, AIR FUEL RATIO

main89467-0R160iMXVA80,MXVH80202403

main89467-0R190iAXVH80202406

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06300iAXVH80,MXVH80202403

main89467-06350iMXVA80202403

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-06050iAXVH80,MXVH80202403

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-06020iAXVH80,MXVH80202403

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-0E010iAXVH80,MXVH80202403

(L)

main89481-48010iAXVH80,MXVH80202403

(J)

89615SENSOR, KNOCK CONTROL

main89615-20090iMXVA80202403

MARK 89615-20090

main89615-78010iAXVH80,MXVH80202403

MARK 89615-78010

8946A06040BRACKET, EXHAUST SENSOR CLAMP

main8946A-06040

8946A0E010BRACKET, EXHAUST SENSOR CLAMP

main8946A-0E010

90105C0048

main90105-C0048

90105C0087

main90105-C0087

90105C0130

main90105-C0130

90119C0098

main90119-C0098

90178C0032

main90178-C0032

90178C0048

main90178-C0048

9046814044

main90468-14044

9155180835

main91551-80835

9167180616

main91671-80616

9415180600

main94151-80600

23 parts on this diagram · 11 diagrams in section
