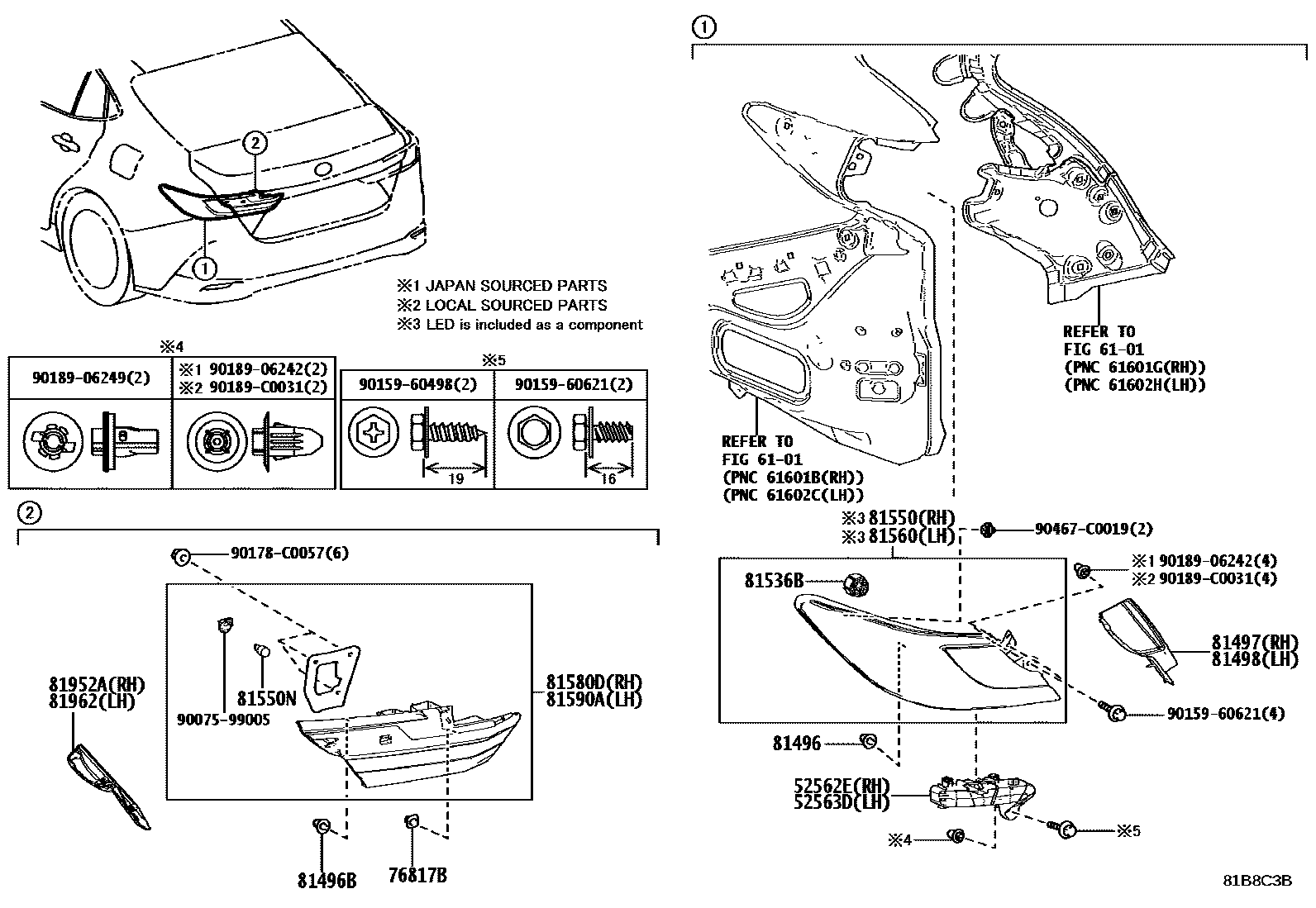

REAR COMBINATION LAMP

0001 1BULB TYPE 0002 1LED TYPE

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-06190iAXVH80,MXVA80,MXVH80202403

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-06100iAXVH80,MXVA80,MXVH80202403

6101

76817BCLIP, REAR LAMP

main76817-26040iAXVH80,MXVA80,MXVH80202403-202410

main76817-26040iAXVH80,MXVA80,MXVH80202410

(J)

main90467-C0083iAXVH80,MXVA80,MXVH80202410

(L)

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iAXVH80,MXVA80,MXVH80202403

81496BGUIDE, REAR LAMP

main81496-0D030iAXVH80,MXVA80,MXVH80202403

(L)

main81496-52020iAXVH80,MXVA80,MXVH80202403

(J)

81497COVER, REAR COMBINATION LAMP, RH

main81497-06060iAXVH80,MXVA80,MXVH80202403

81498COVER, REAR COMBINATION LAMP, LH

main81498-06060iAXVH80,MXVA80,MXVH80202403

81536BLED, REAR TURN SIGNAL LAMP

main81965-33010iAXVH80,MXVA80,MXVH80202403

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06B30iMXVA80,MXVH80..E202403

G VALUE PACKAGE

main81550-06B40iAXVH80,MXVA80,MXVH80..G,S202403

81550NBULB, BACK UP LAMP

main90981-11059iMXVA80,MXVH80..E202403

12V 16W

main90981-11059iMXVA80,MXVH80..E202403

12V 16W,G VALUE PACKAGE

81560LAMP ASSY, REAR COMBINATION, LH

main81560-06B30iMXVA80,MXVH80..E202403

G VALUE PACKAGE

main81560-06B40iAXVH80,MXVA80,MXVH80..G,S202403

81580DLAMP ASSY, REAR, RH

main81580-06A40iMXVA80,MXVH80..E202403

G VALUE PACKAGE

main81580-06A50iAXVH80,MXVA80,MXVH80..G,S202403

81590ALAMP ASSY, REAR, LH

main81590-06A20iMXVA80,MXVH80..E202403

G VALUE PACKAGE

main81590-06A30iAXVH80,MXVA80,MXVH80..G,S202403

81952ACOVER, REAR LAMP, RH

main81952-06060iAXVH80,MXVA80,MXVH80202403

81962COVER, REAR LAMP, LH

main81962-06060iAXVH80,MXVA80,MXVH80202403

9007599005

main90075-99005

9015960498

main90159-60498

9015960621

main90159-60621

90178C0057

main90178-C0057

9018906242

main90189-06242

9018906249

main90189-06249

90189C0031

main90189-C0031

90467C0019

main90467-C0019

24 parts on this diagram · 2 diagrams in section
