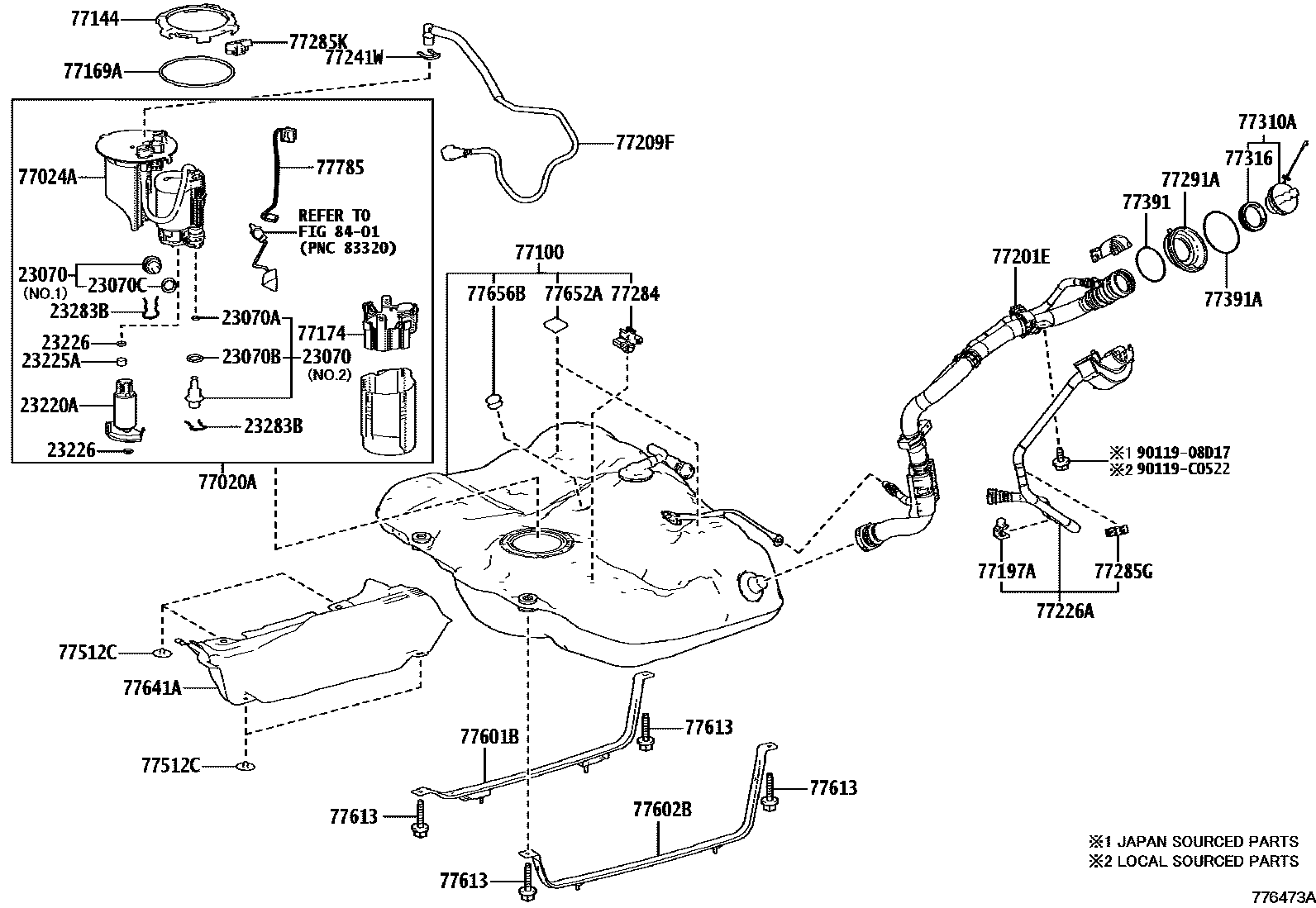

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
(J)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(L)
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23283BHOLDER, FUEL PRESSURE REGULATOR
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
(L)
(J)
77174SUPPORT, FUEL SUCTION, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77284CLAMP, FUEL TUBE
77285GCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
(J)
(L)
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77785HARNESS, FUEL PUMP
(L)
(J)
8401
9011908D17
90119C0522
main90119-C0522
38 parts on this diagram · 5 diagrams in section
