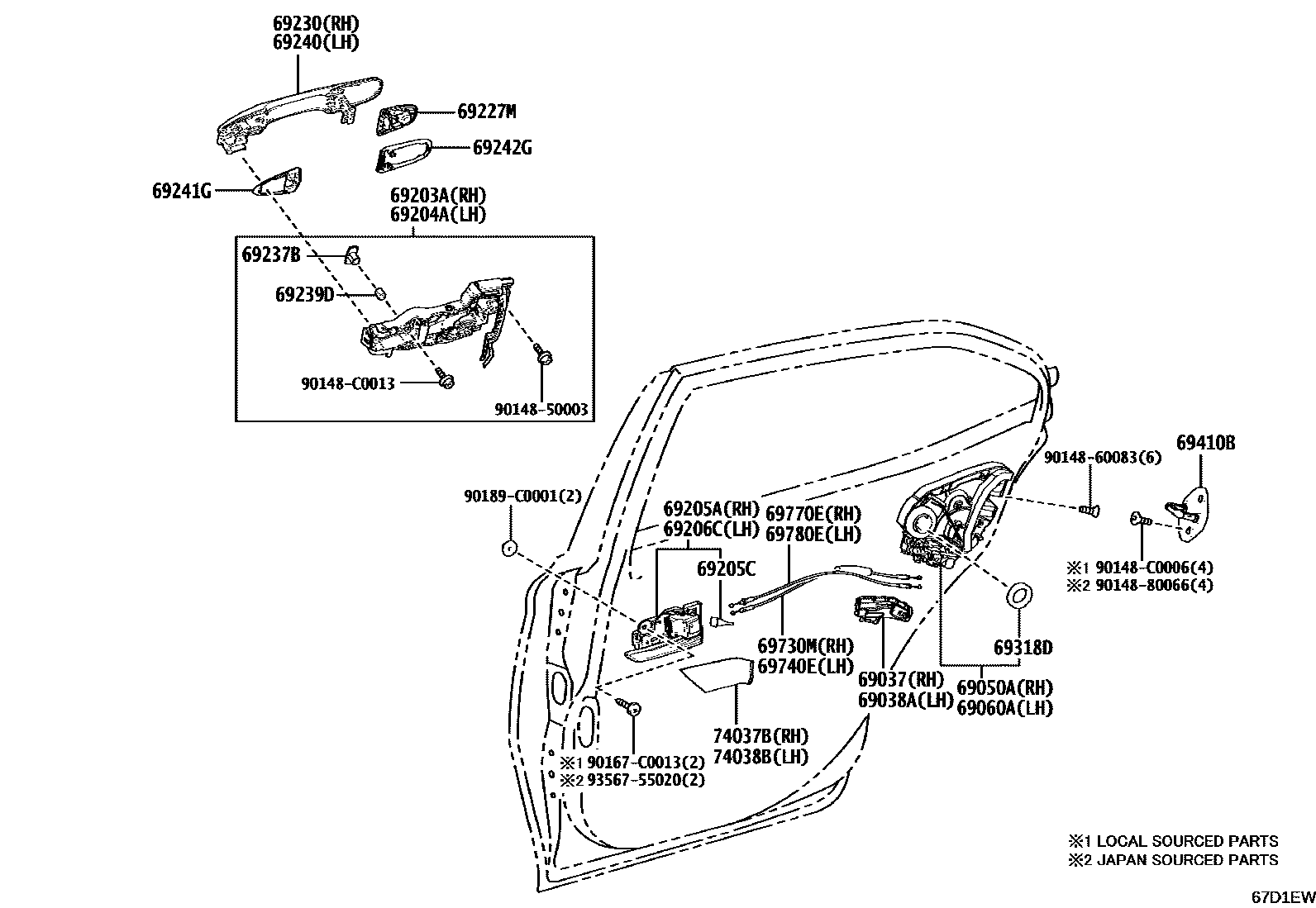

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0
CYBER GRAY PEARL MC.,1M5
CYBER GRAY PEARL MC.,1M5 ,M11
BLACK MC.,209
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,4X1
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0
CYBER GRAY PEARL MC.,1M5
CYBER GRAY PEARL MC.,1M5 ,M11
BLACK MC.,209
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,4X1
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
74037BCOVER SUB-ASSY, REAR DOOR ARMREST, RH
74038BCOVER SUB-ASSY, REAR DOOR ARMREST, LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148C0006
main90148-C0006
90148C0013
main90148-C0013
90167C0013
main90167-C0013
90189C0001
main90189-C0001
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
