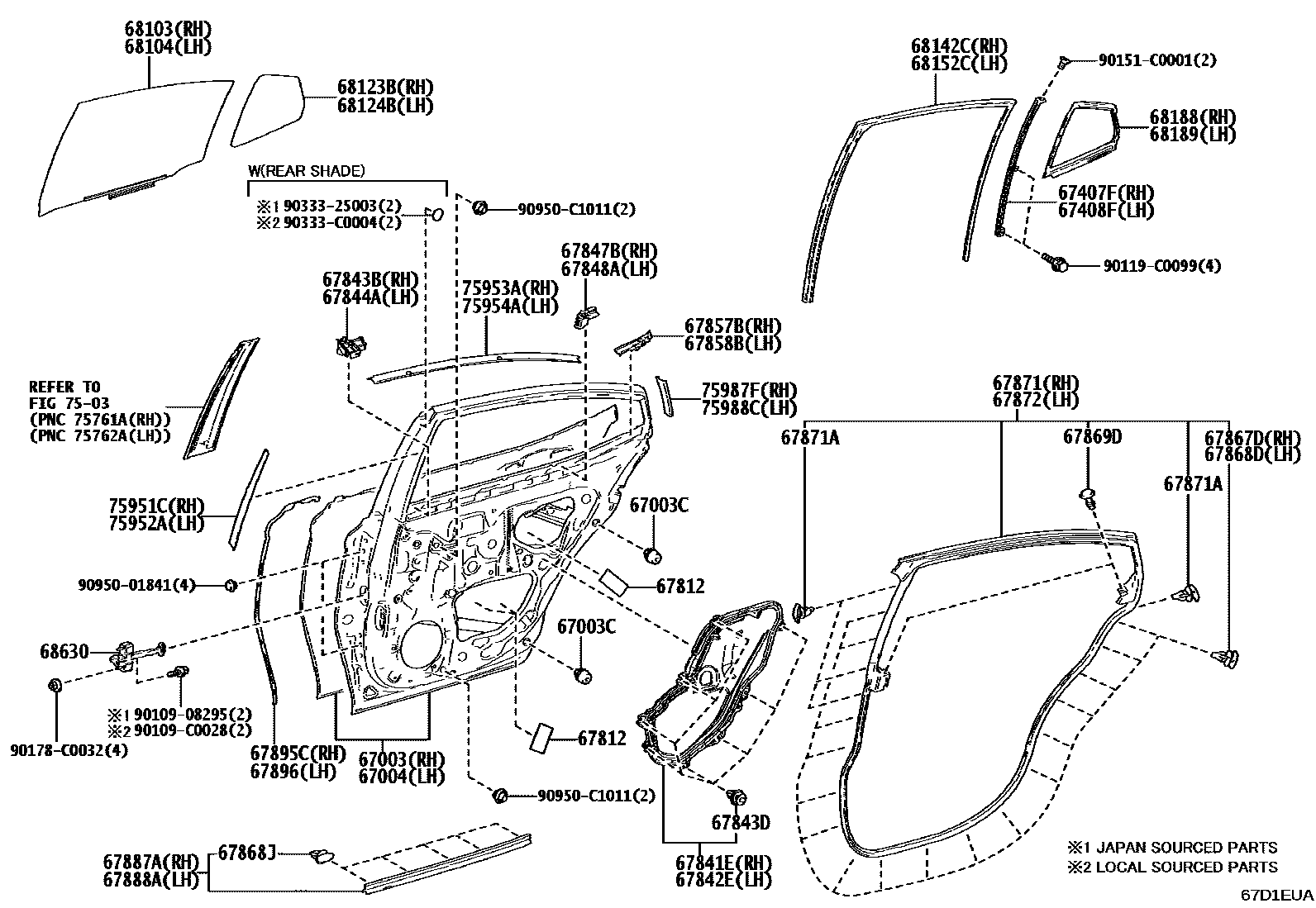

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06250iAXVH80,MXVA80,MXVH80202403

67003CCUSHION, REAR DOOR PANEL

main90541-09143iAXVH80,MXVA80,MXVH80202403

(J)

main90541-C0003iAXVH80,MXVA80,MXVH80202403

(L)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06390iAXVH80,MXVA80,MXVH80202403

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-06190iAXVH80,MXVA80,MXVH80202403

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-06190iAXVH80,MXVA80,MXVH80202403

67812PAD, REAR DOOR SILENCER

main67811-06050iAXVH80,MXVA80,MXVH80202403

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-06291iAXVH80,MXVA80,MXVH80202403

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-06291iAXVH80,MXVA80,MXVH80202403

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-06120iAXVH80,MXVA80,MXVH80202403

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-C0033iAXVH80,MXVA80,MXVH80202403

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-06050iAXVH80,MXVA80,MXVH80202403

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-06060iAXVH80,MXVA80,MXVH80202403

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-06040iAXVH80,MXVA80,MXVH80202403

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-06040iAXVH80,MXVA80,MXVH80202403

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-06040iAXVH80,MXVA80,MXVH80202403

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-0D030iAXVH80,MXVA80,MXVH80202403

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-0D090iAXVH80,MXVA80,MXVH80202403

67868JRETAINER, DOOR WEATHERSTRIP

main67867-0D110iAXVH80,MXVA80,MXVH80202403

67869DCLIP, DOOR WEATHERSTRIP

main67868-30030iAXVH80,MXVA80,MXVH80202403

67871WEATHERSTRIP, REAR DOOR, RH

main67871-06250iAXVH80,MXVA80,MXVH80202403

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iAXVH80,MXVA80,MXVH80202403

67872WEATHERSTRIP, REAR DOOR, LH

main67872-06250iAXVH80,MXVA80,MXVH80202403

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-06120iAXVH80,MXVA80,MXVH80202403

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-06120iAXVH80,MXVA80,MXVH80202403

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-06030iAXVH80,MXVA80,MXVH80202403

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-06030iAXVH80,MXVA80,MXVH80202403

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-06410iAXVH80,MXVA80,MXVH80..G,S202403

main68103-06420iMXVA80,MXVH80..E202403

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-06400iAXVH80,MXVA80,MXVH80..G,S202403

main68104-06410iMXVA80,MXVH80..E202403

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-06380iAXVH80,MXVA80,MXVH80202403

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-06380iAXVH80,MXVA80,MXVH80202403

68142CRUN, REAR DOOR GLASS, RH

main68142-06240iAXVH80,MXVA80,MXVH80202403

68152CRUN, REAR DOOR GLASS, LH

main68152-06240iAXVH80,MXVA80,MXVH80202403

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-06220iAXVH80,MXVA80,MXVH80202403

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-06220iAXVH80,MXVA80,MXVH80202403

68630CHECK ASSY, REAR DOOR

main68630-06201iAXVH80,MXVA80,MXVH80202403

7503

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-06120iAXVH80,MXVA80,MXVH80202403

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-06120iAXVH80,MXVA80,MXVH80202403

75953ATAPE, BLACK OUT, INNER REAR RH

main75987-06280iAXVH80,MXVA80,MXVH80202403

75954ATAPE, BLACK OUT, INNER REAR LH

main75988-06280iAXVH80,MXVA80,MXVH80202403

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-06300iAXVH80,MXVA80,MXVH80202403

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-06300iAXVH80,MXVA80,MXVH80202403

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90151C0001

main90151-C0001

90178C0032

main90178-C0032

9033325003

main90333-25003

90333C0004

main90333-C0004

9095001841

main90950-01841

90950C1011

main90950-C1011

51 parts on this diagram · 2 diagrams in section
