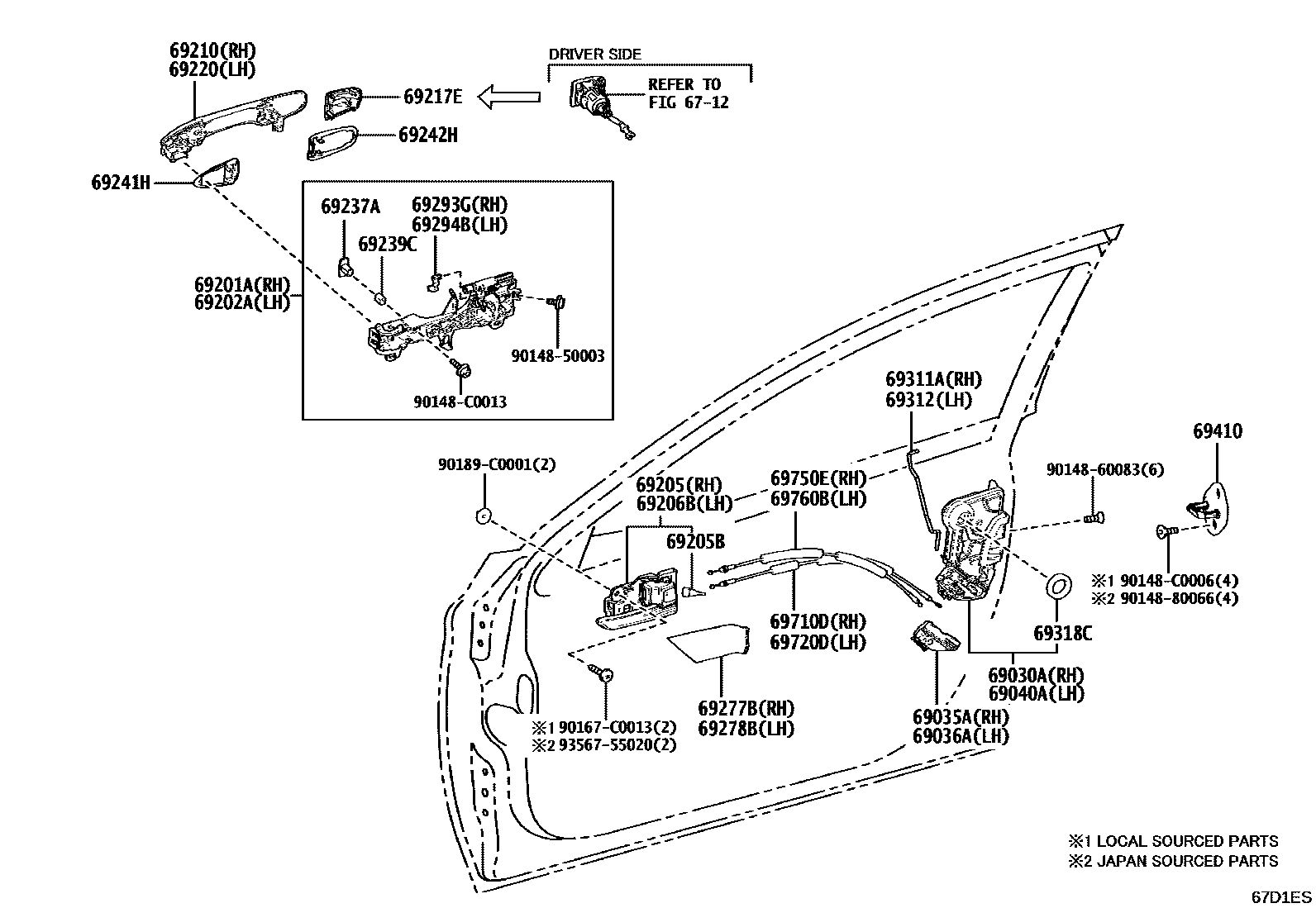

FRONT DOOR LOCK & HANDLE
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0
CYBER GRAY PEARL MC.,1M5 ,M11
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,4X1
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
CYBER GRAY PEARL MC.,1M5
BLACK MC.,209
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0
CYBER GRAY PEARL MC.,1M5 ,M11
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,4X1
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
CYBER GRAY PEARL MC.,1M5
BLACK MC.,209
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
69237ANUT, FRONT DOOR HANDLE
sub69237-0E010
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148C0006
main90148-C0006
90148C0013
main90148-C0013
90167C0013
main90167-C0013
90189C0001
main90189-C0001
9356755020
main93567-55020
37 parts on this diagram · 1 diagram in section
