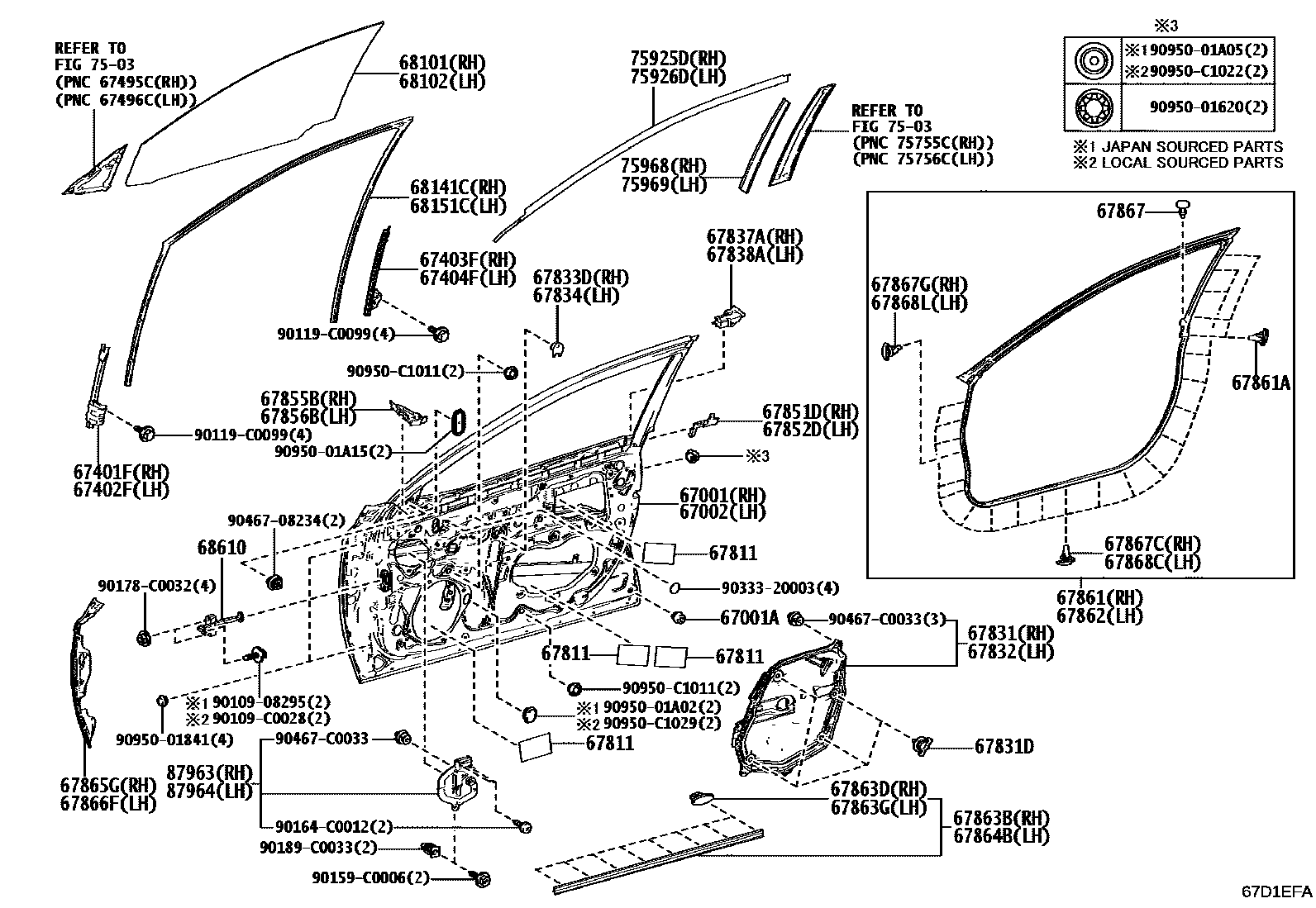

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06301iAXVH80,MXVA80,MXVH80202403

67001ACUSHION, FRONT DOOR PANEL

main90541-09143iAXVH80,MXVA80,MXVH80202403

(J)

main90541-C0003iAXVH80,MXVA80,MXVH80202403

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06321iAXVH80,MXVA80,MXVH80202403

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06170iAXVH80,MXVA80,MXVH80202403

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06170iAXVH80,MXVA80,MXVH80202403

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06150iAXVH80,MXVA80,MXVH80202403

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06150iAXVH80,MXVA80,MXVH80202403

67811PAD, FRONT DOOR SILENCER

main67811-06050iAXVH80,MXVA80,MXVH80202403

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06201iAXVH80,MXVA80,MXVH80202403

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-F4030iAXVH80,MXVA80,MXVH80202403

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06201iAXVH80,MXVA80,MXVH80202403

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-47010iAXVH80,MXVA80,MXVH80202403

(J)

main67833-F4030iAXVH80,MXVA80,MXVH80202403

(L)

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-47010iAXVH80,MXVA80,MXVH80202403

(J)

main67833-F4030iAXVH80,MXVA80,MXVH80202403

(L)

67837ASEAL, FRONT DOOR VENT, RH

main67837-06040iAXVH80,MXVA80,MXVH80202403

67838ASEAL, FRONT DOOR VENT, LH

main67838-06030iAXVH80,MXVA80,MXVH80202403

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-06050iAXVH80,MXVA80,MXVH80202403

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-06050iAXVH80,MXVA80,MXVH80202403

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-06020iAXVH80,MXVA80,MXVH80202403

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-06020iAXVH80,MXVA80,MXVH80202403

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06190iAXVH80,MXVA80,MXVH80202403

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150iAXVH80,MXVA80,MXVH80202403

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06190iAXVH80,MXVA80,MXVH80202403

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-06120iAXVH80,MXVA80,MXVH80202403

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0D080iAXVH80,MXVA80,MXVH80202403

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0D080iAXVH80,MXVA80,MXVH80202403

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-06120iAXVH80,MXVA80,MXVH80202403

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-06030iAXVH80,MXVA80,MXVH80202403

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-06030iAXVH80,MXVA80,MXVH80202403

67867CLIP, DOOR WEATHERSTRIP

main67868-30030iAXVH80,MXVA80,MXVH80202403

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070iAXVH80,MXVA80,MXVH80202403

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-0D040iAXVH80,MXVA80,MXVH80202403

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-0D040iAXVH80,MXVA80,MXVH80202403

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-0D040iAXVH80,MXVA80,MXVH80202403

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06371iMXVA80,MXVH80..E202403

main68101-06490iAXVH80,MXVA80,MXVH80..G,S202403

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06371iMXVA80,MXVH80..E202403

main68102-06490iAXVH80,MXVA80,MXVH80..G,S202403

68141CRUN, FRONT DOOR GLASS, RH

main68141-06260iAXVH80,MXVA80,MXVH80202403

68151CRUN, FRONT DOOR GLASS, LH

main68151-06250iAXVH80,MXVA80,MXVH80202403

68610CHECK ASSY, FRONT DOOR

main68610-06211iAXVH80,MXVA80,MXVH80202403

7503

75925DTAPE, BLACK OUT, INNER FRONT RH

main75985-06120iAXVH80,MXVA80,MXVH80202403

75926DTAPE, BLACK OUT, INNER FRONT LH

main75986-06120iAXVH80,MXVA80,MXVH80202403

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75975-06120iAXVH80,MXVA80,MXVH80202403

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75976-06120iAXVH80,MXVA80,MXVH80202403

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-06040iAXVH80,MXVA80,MXVH80202403

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-06040iAXVH80,MXVA80,MXVH80202403

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90159C0006

main90159-C0006

90164C0012

main90164-C0012

90178C0032

main90178-C0032

90189C0033

main90189-C0033

9033320003

main90333-20003

9046708234

main90467-08234

90467C0033

main90467-C0033

9095001620

main90950-01620

9095001841

main90950-01841

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095001A15

main90950-01A15

90950C1011

main90950-C1011

90950C1022

main90950-C1022

90950C1029

main90950-C1029

63 parts on this diagram · 2 diagrams in section
