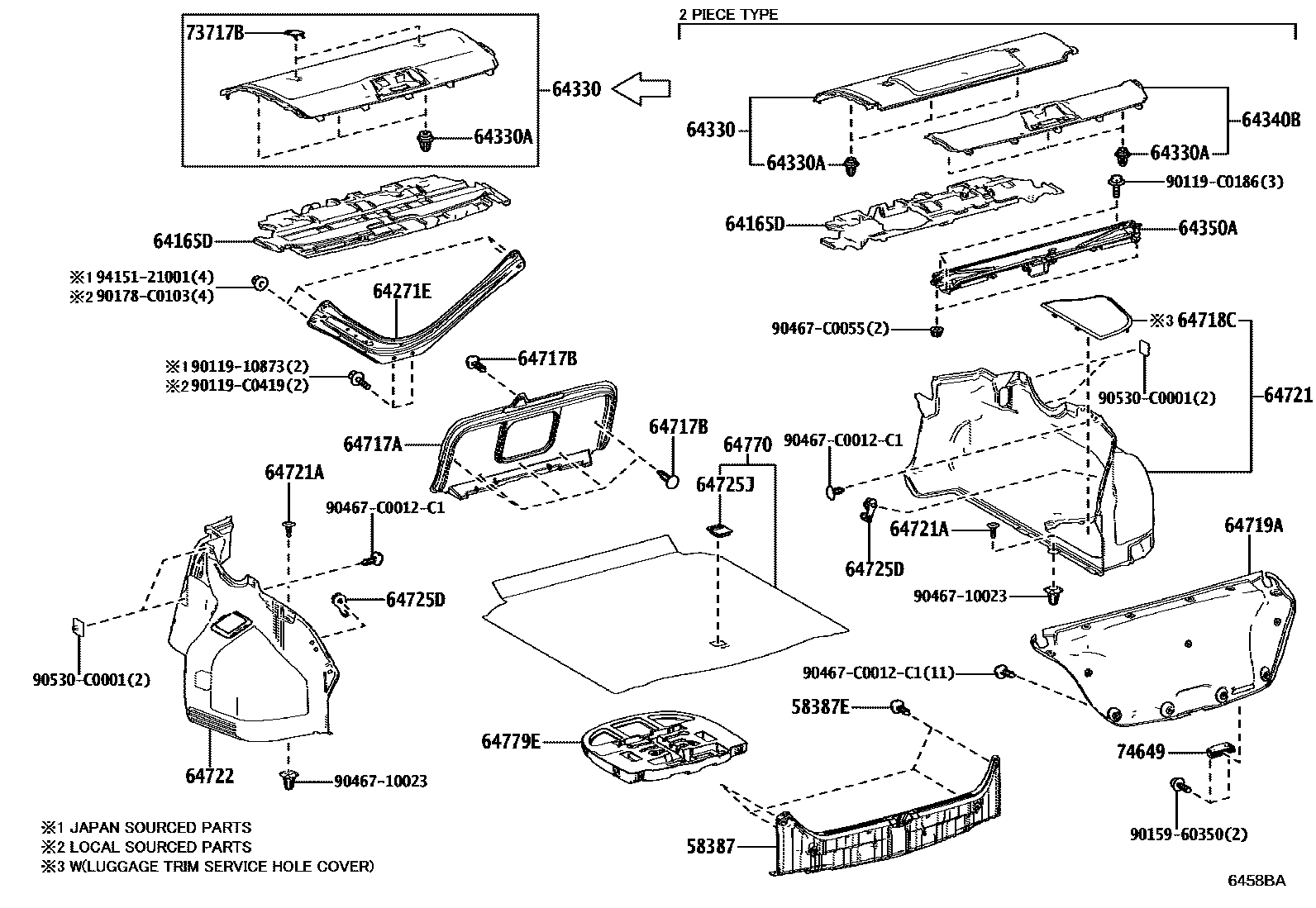

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK
64165DCOVER, UPPER BACK PANEL HOLE, NO.1
64271EPANEL, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64770COVER ASSY, SPARE WHEEL
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
64779ETRAY, SPARE WHEEL COVER
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,4#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
9011910873
main90119-10873
90119C0186
main90119-C0186
90119C0419
main90119-C0419
9015960350
main90159-60350
90178C0103
main90178-C0103
9046710023
main90467-10023
90467C0012C1
main90467-C0012C1
90467C0055
main90467-C0055
90530C0001
main90530-C0001
9415121001
main94151-21001
31 parts on this diagram · 2 diagrams in section
