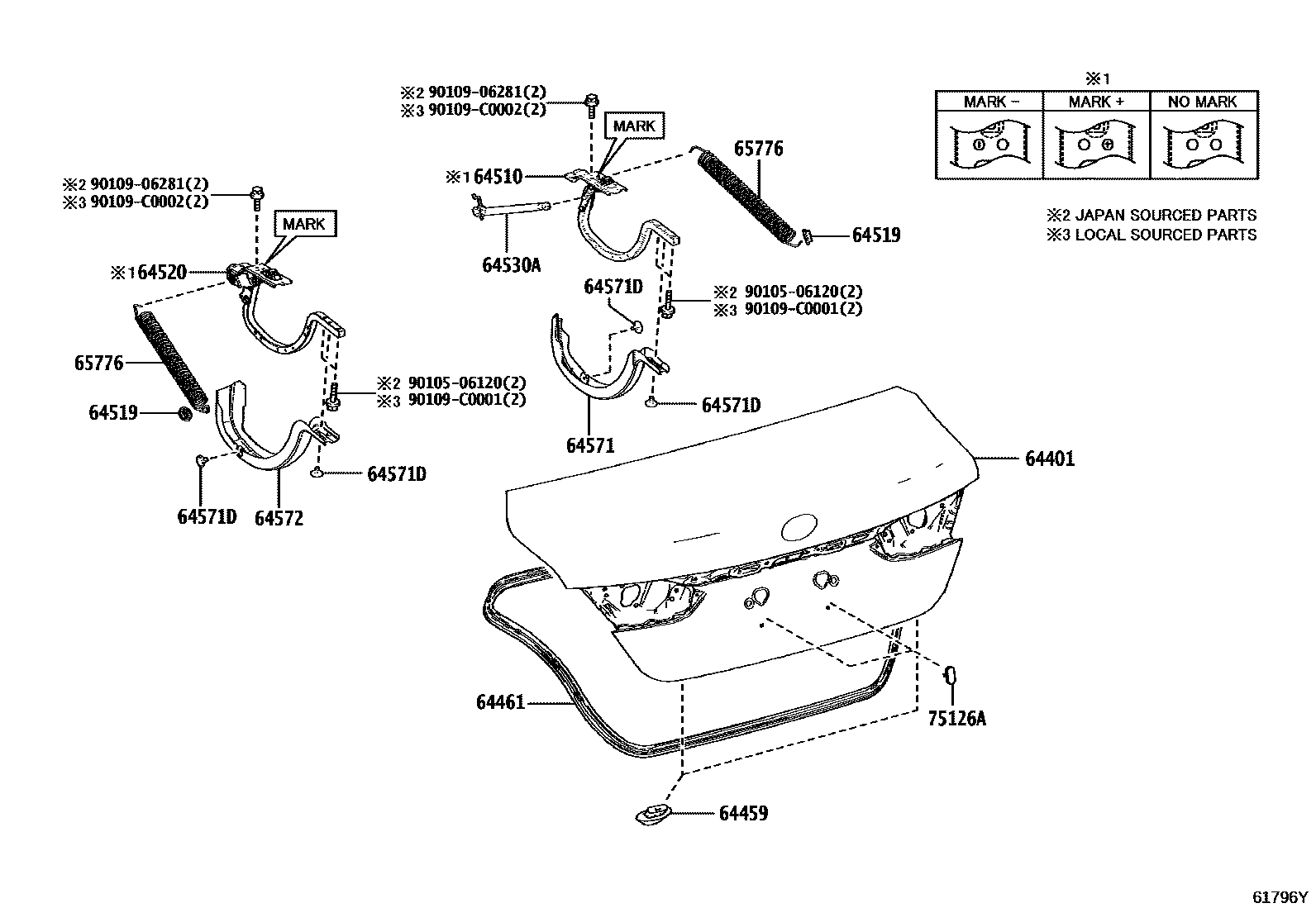

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1PANEL 0002 1LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06C00iAXVH80,MXVA80,MXVH80..E,G202403

main64401-06C10iAXVH80,MXVA80,MXVH80..S202403

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-06030iAXVH80,MXVA80,MXVH80202403

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06230iAXVH80,MXVA80,MXVH80202403

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06300iAXVH80,MXVA80,MXVH80202403

NO MARK

main64510-06390iAXVH80,MXVA80,MXVH80202403

MARK +

main64510-06400iAXVH80,MXVA80,MXVH80202403

MARK -

64519BUSH, LUGGAGE DOOR HINGE SUPPORT

main64519-06120iAXVH80,MXVA80,MXVH80202403

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-06120iAXVH80,MXVA80,MXVH80202403

NO MARK

main64520-06210iAXVH80,MXVA80,MXVH80202403

MARK +

main64520-06220iAXVH80,MXVA80,MXVH80202403

MARK -

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-06030iAXVH80,MXVA80,MXVH80202403

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-06150iAXVH80,MXVA80,MXVH80202403

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-C0012-C0iAXVH80,MXVA80,MXVH80202403

BLACK

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-06080iAXVH80,MXVA80,MXVH80202403

65776SPRING, BACK DOOR STAY

main65776-06160iAXVH80,MXVA80,MXVH80202403

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-06010iAXVH80,MXVA80,MXVH80202403

(L)

main75126-78010iAXVH80,MXVA80,MXVH80202403

(J)

9010506120

main90105-06120

9010906281

main90109-06281

90109C0001

main90109-C0001

90109C0002

main90109-C0002

16 parts on this diagram · 2 diagrams in section
