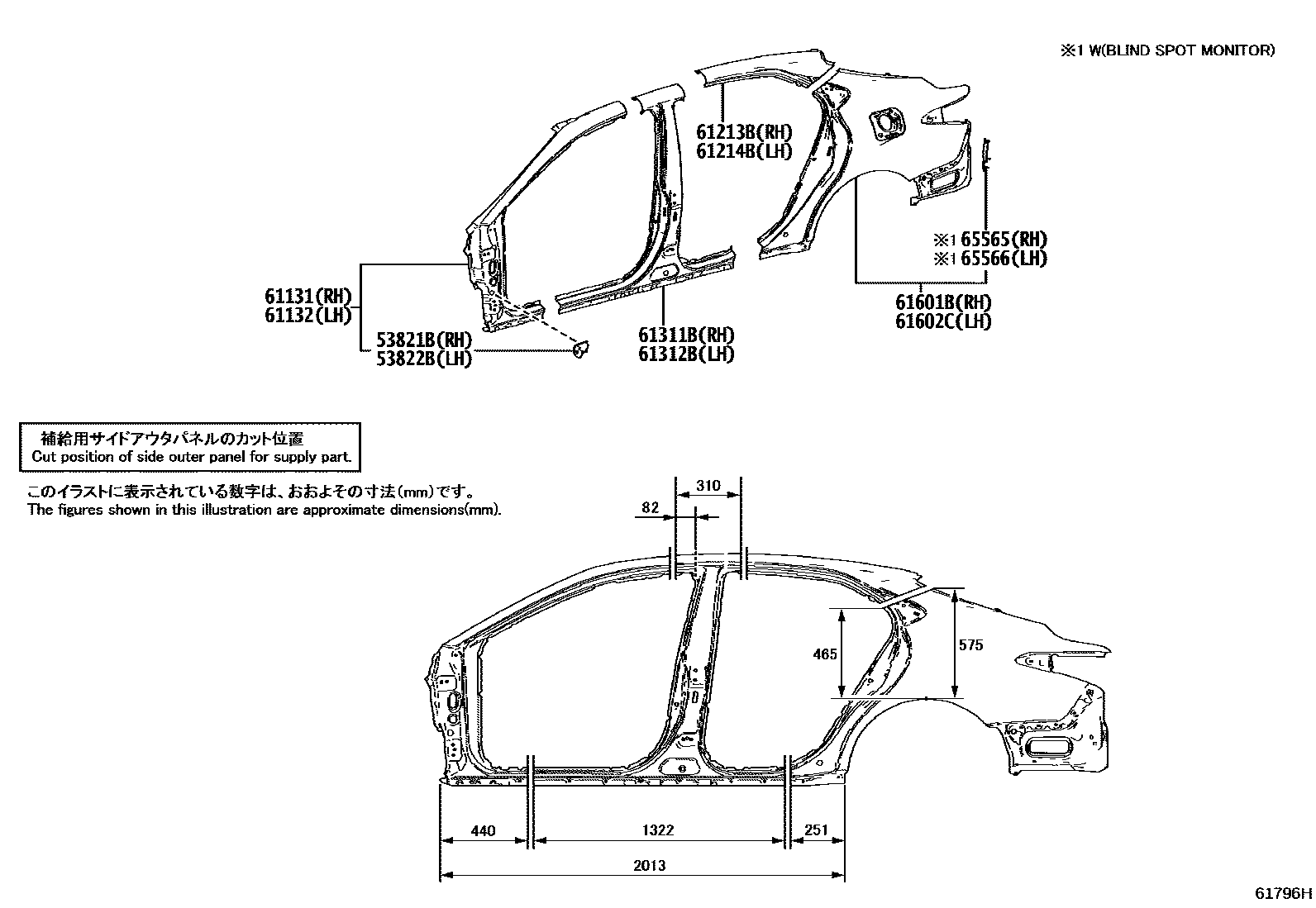

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-06190iAXVH80,MXVA80,MXVH80202403

53822BBRACKET, FRONT FENDER, REAR LH

main53821-06190iAXVH80,MXVA80,MXVH80202403

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06230iAXVH80,MXVA80,MXVH80202403

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-06230iAXVH80,MXVA80,MXVH80202403

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-06280iAXVH80,MXVA80,MXVH80202403

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-06270iAXVH80,MXVA80,MXVH80202403

61311BPILLAR, CENTER BODY, OUTER RH

main61311-06160iAXVH80,MXVA80,MXVH80202403

61312BPILLAR, CENTER BODY, OUTER LH

main61312-06160iAXVH80,MXVA80,MXVH80202403

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-06420iAXVH80,MXVA80,MXVH80..G,S202403

main61601-06430iAXVH80,MXVA80,MXVH80..G202403

G VALUE PACKAGE

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-06420iAXVH80,MXVA80,MXVH80..G,S202403

main61602-06430iAXVH80,MXVA80,MXVH80..G202403

G VALUE PACKAGE

65565PATCH, SIDE PANEL REAR END, RH

main65565-06120iAXVH80,MXVA80,MXVH80..G,S202403

65566PATCH, SIDE PANEL REAR END, LH

main65565-06120iAXVH80,MXVA80,MXVH80..G,S202403

12 parts on this diagram · 3 diagrams in section
