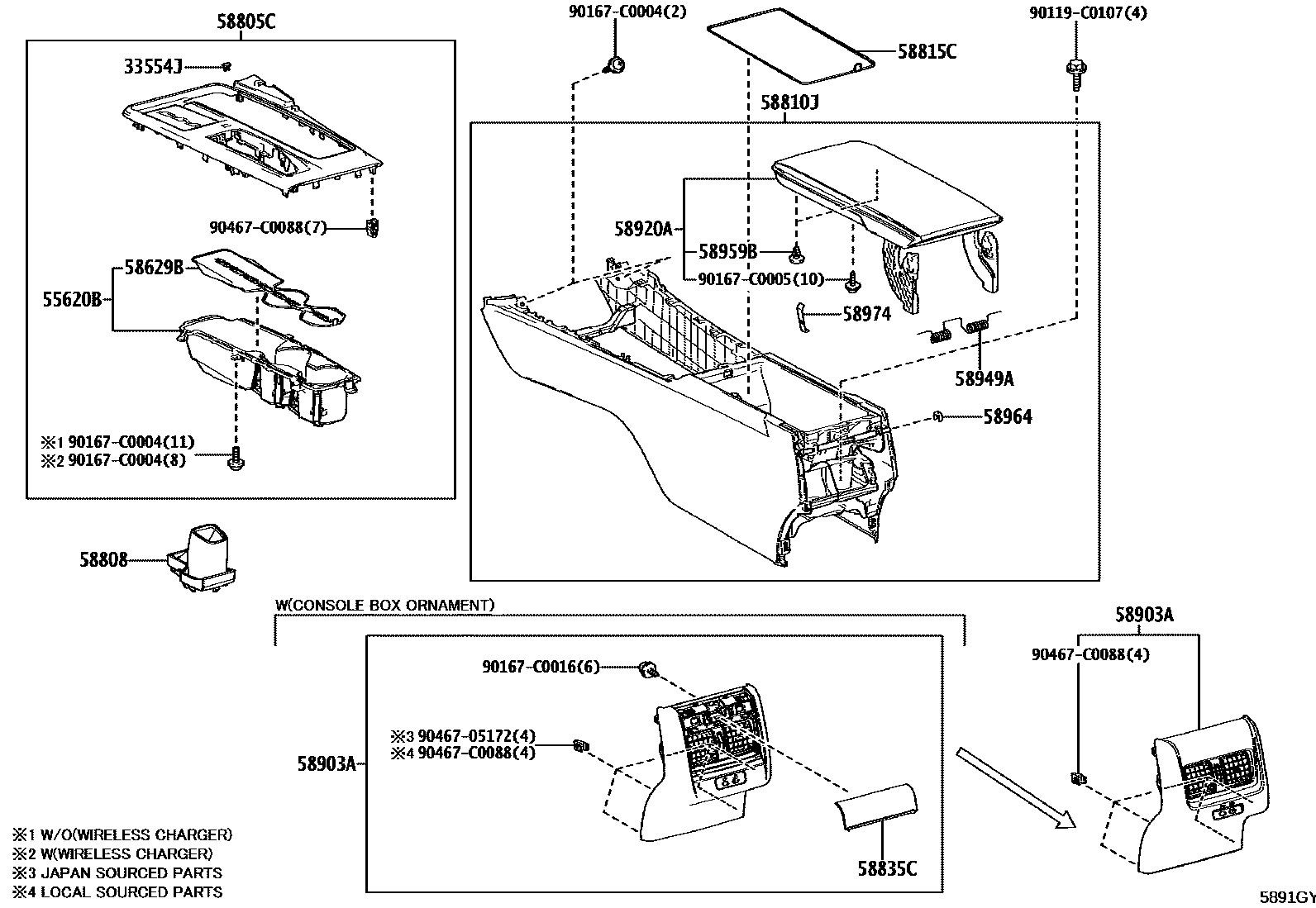

CONSOLE BOX & BRACKET

33554JCOVER, SHIFT LOCK RELEASE BUTTON

main33554-06130iAXVH80,MXVA80,MXVH80202403

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-06690iAXVH80,MXVA80,MXVH80202403

58629BMAT, CENTER CONSOLE

main58629-06020iAXVH80,MXVA80,MXVH80202403

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-06G80iMXVA80,MXVH80..E202403

main58805-06G90iAXVH80,MXVA80,MXVH80..G,S202403

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-06150-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#,4#

58810JBOX ASSY, CONSOLE

main58810-06A10-C0iAXVH80,MXVA80,MXVH80..G202403

SAND BROWN,BLACK,TRIM4#

main58810-06A10-C1iAXVH80,MXVA80,MXVH80..S202403

SENSUAL RED,BLACK,TRIM3#

main58810-06A10-C4iAXVH80,MXVA80,MXVH80202403

BLACK,BLACK,TRIM2#

main58810-06A40-C0supersedes 58810-06A10-C2iAXVH80..G202407

SEAT COVER MATERIAL-LEATHER(ANTIFOUL),BLACK,TRIM0#

58815CCARPET, CONSOLE BOX

main58815-06320iAXVH80,MXVA80,MXVH80202403

58835CORNAMENT, CONSOLE BOX

main58835-06190iAXVH80,MXVA80,MXVH80..G202403

main58835-06200iAXVH80,MXVA80,MXVH80..S202403

main58835-06210iAXVH80..G202406

Q UP GRADE PACKAGE

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06670-C0iMXVA80,MXVH80..G202403

BLACK,TRIM2#,4#

main58903-06680-C0iAXVH80,MXVA80,MXVH80..S202403

BLACK,TRIM2#,3#

main58903-06700-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

main58903-06690-C0supersedes 58903-06670-C0iAXVH80..G202406

Q UP GRADE PACKAGE,BLACK,TRIM0#,2#,4#

58920AARMREST ASSY, REAR CONSOLE

main58920-06230-C1iAXVH80,MXVA80,MXVH80202403

SENSUAL RED,BLACK,TRIM2#

main58920-06230-D0iAXVH80,MXVA80,MXVH80..S202403

WHITE,BLACK,TRIM3#

main58920-06230-E0iAXVH80,MXVA80,MXVH80..G202403

BLACK,BLACK,TRIM4#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-06120iAXVH80,MXVA80,MXVH80202403

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010×2iAXVH80,MXVA80,MXVH80202403

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-33040iAXVH80,MXVA80,MXVH80202403

58974PLATE, CONSOLE COMPARTMENT DOOR LOCK

main58974-06030iAXVH80,MXVA80,MXVH80202403

90119C0107

main90119-C0107

90167C0004

main90167-C0004

90167C0005

main90167-C0005

90167C0016

main90167-C0016

9046705172

main90467-05172

90467C0088

main90467-C0088

20 parts on this diagram · 1 diagram in section
