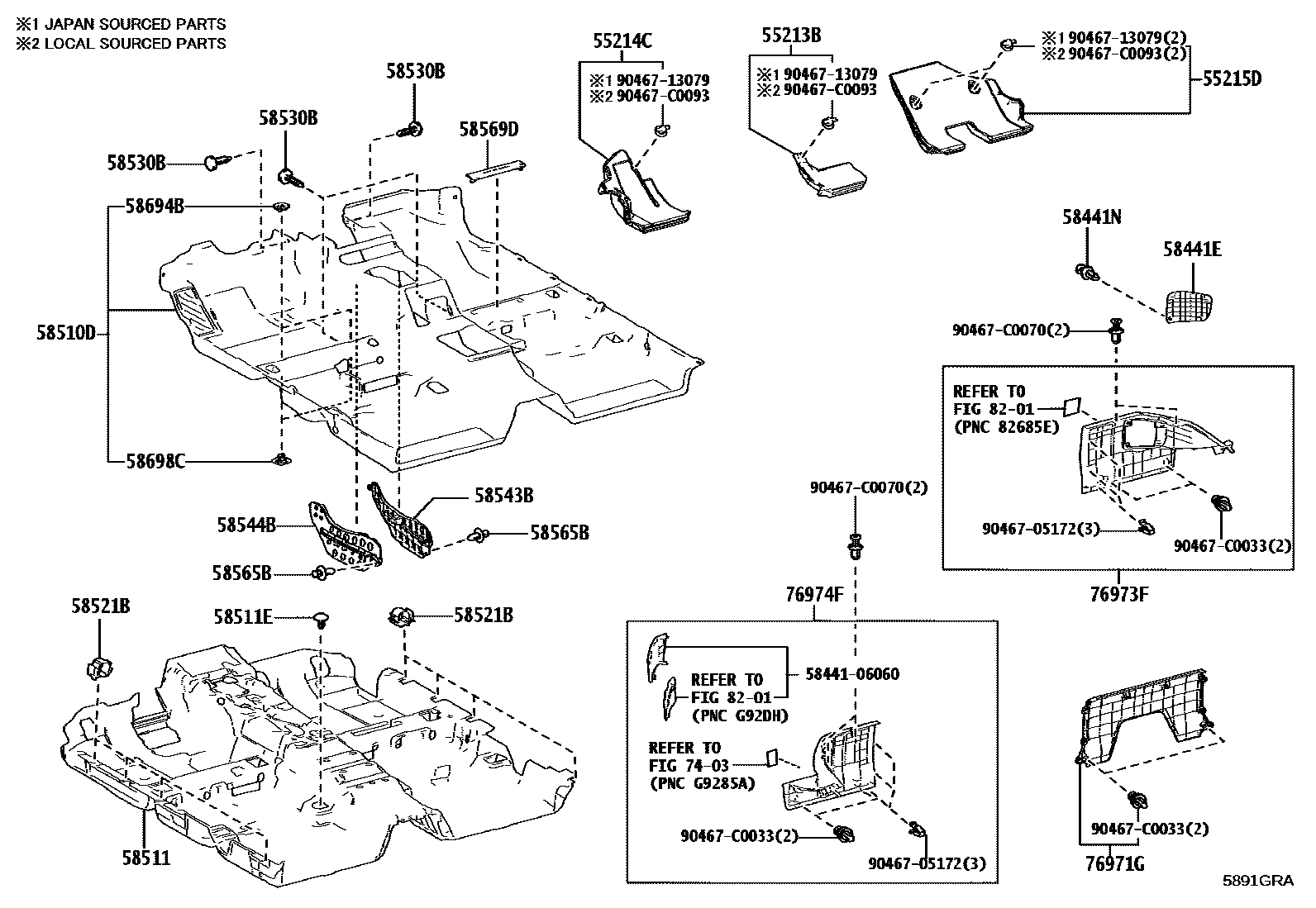

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58441ECOVER, BATTERY SERVICE HOLE
58441NCLIP(FOR BATTERY SERVICE HOLE COVER)
BLACK
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
58511ECLIP(FOR FRONT FLOOR MAT)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58543BBRACKET, FLOOR CARPET, RH
58544BBRACKET, FLOOR CARPET, LH
58565BCLIP
BLACK
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
7403
76971GCOVER, REAR UNDER
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
76973FCOVER, REAR UNDER SIDE, RH
76974FCOVER, REAR UNDER SIDE, LH
8201
5844106060COVER ASSY, ENGINE, REAR
main58441-06060
9046705172
main90467-05172
9046713079
main90467-13079
90467C0033
main90467-C0033
90467C0070
main90467-C0070
90467C0093
main90467-C0093
27 parts on this diagram · 3 diagrams in section
