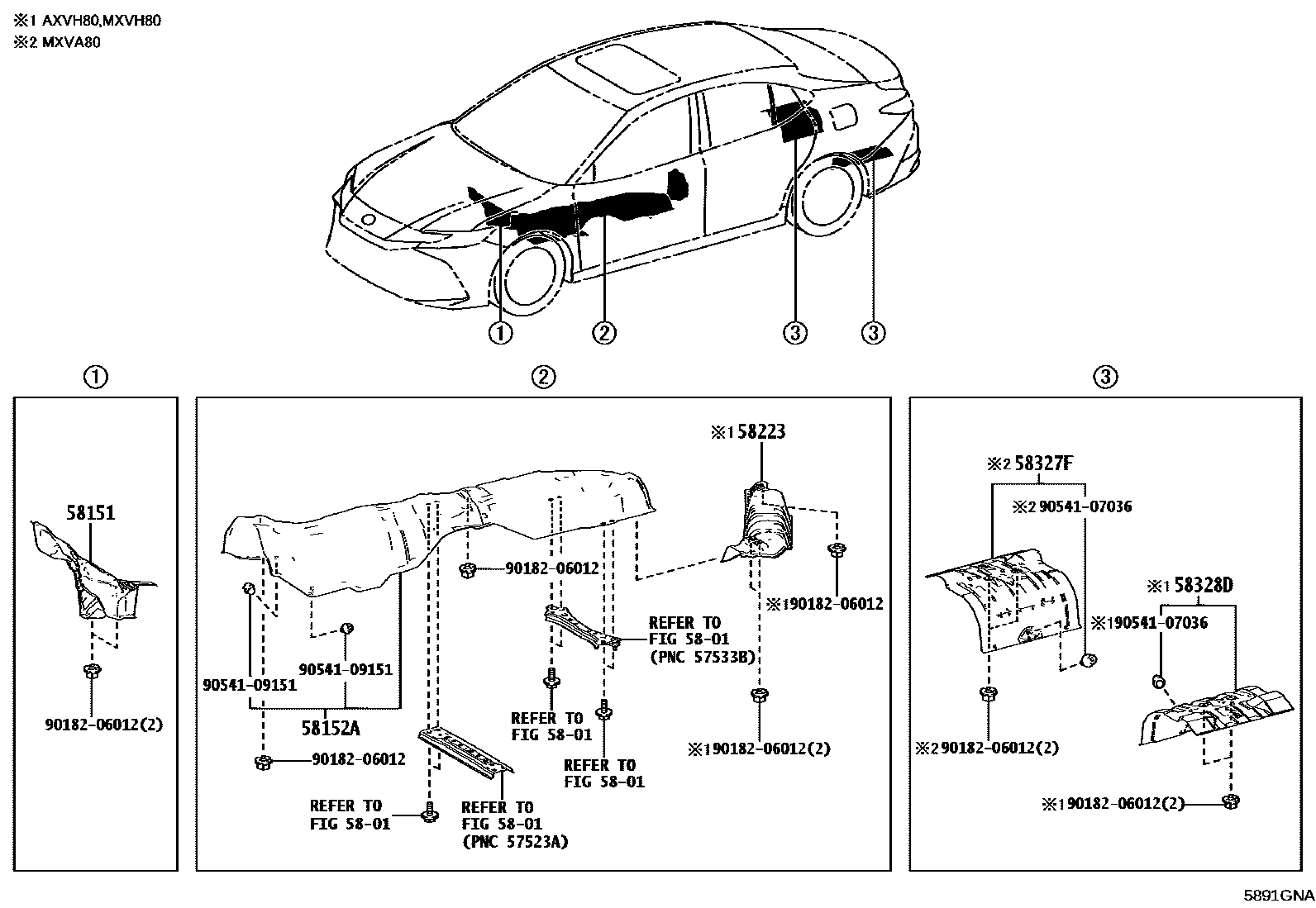

FLOOR INSULATOR

5801

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-06100iAXVH80,MXVA80,MXVH80202403

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-06250iAXVH80,MXVA80,MXVH80202403

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-06060iAXVH80,MXVH80202403

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-06140iMXVA80202403

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58327-06140iAXVH80,MXVH80202403

9018206012

main90182-06012

9054107036

main90541-07036

9054109151

main90541-09151

9 parts on this diagram · 1 diagram in section
