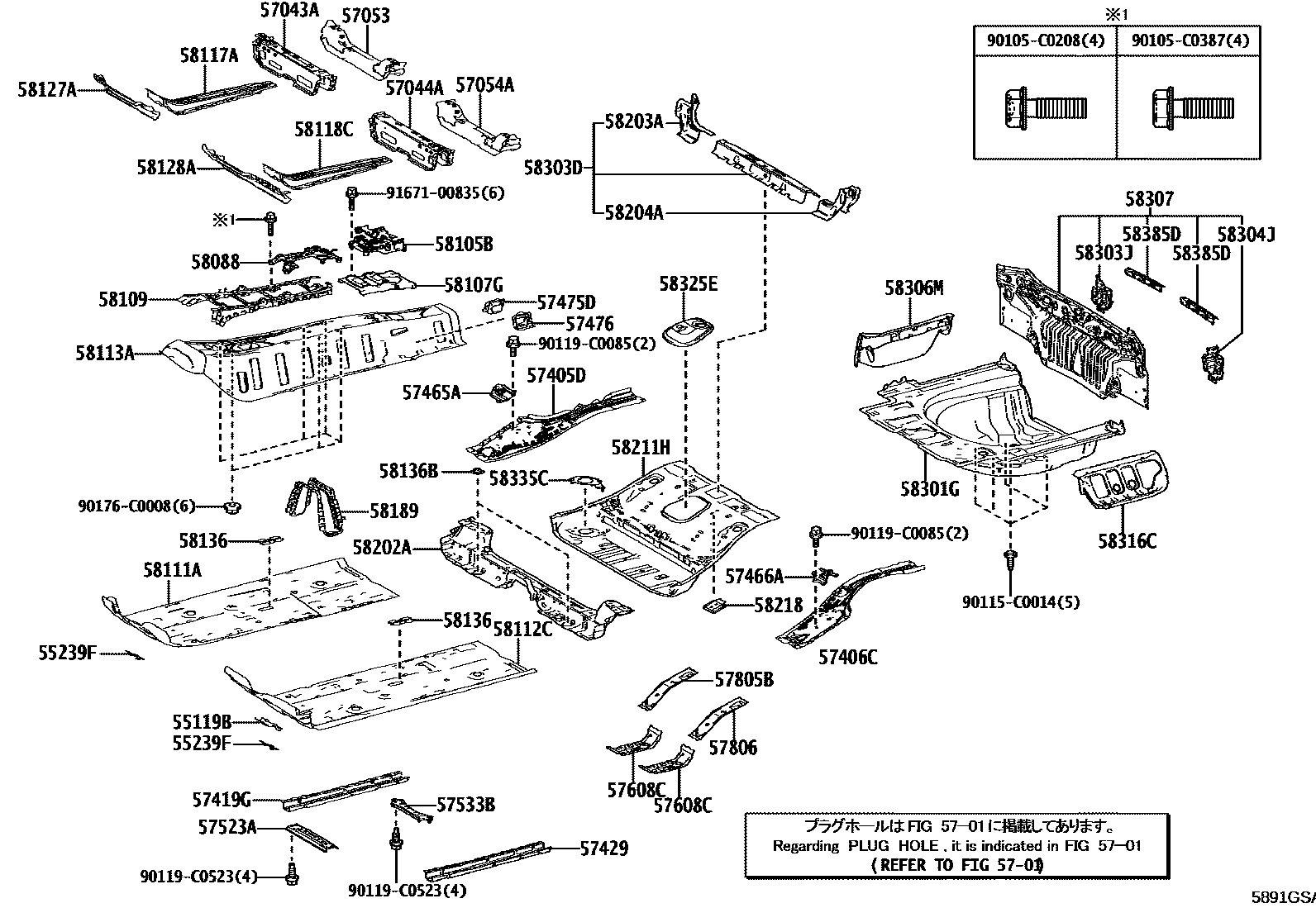

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55119BEXTENSION, DASH PANEL, LH

main55119-06060iAXVH80,MXVA80,MXVH80202403

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-06060×2iAXVH80,MXVA80,MXVH80202403

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06110iAXVH80,MXVA80,MXVH80202403

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06110iAXVH80,MXVA80,MXVH80202403

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-06100iAXVH80,MXVA80,MXVH80202403

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-06140iAXVH80,MXVA80,MXVH80202403

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-06050iAXVH80,MXVA80,MXVH80202403

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-06050iAXVH80,MXVA80,MXVH80202403

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06110iAXVH80,MXVA80,MXVH80202403

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-06110iAXVH80,MXVA80,MXVH80202403

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-06020iAXVH80,MXVA80,MXVH80202403

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-06020iAXVH80,MXVA80,MXVH80202403

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06090iAXVH80,MXVA80,MXVH80202403

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06080iAXVH80,MXVA80,MXVH80202403

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-06020iAXVH80,MXVA80,MXVH80202403

57533BBRACE, FRONT FLOOR, CENTER

main57533-06100iAXVH80,MXVA80,MXVH80202403

57608CBRACKET SUB-ASSY, FUEL TANK MOUNTING

main57608-06160×2iAXVH80,MXVH80202403

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06060iAXVH80,MXVH80202403

main57805-06140iMXVA80202403

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57805-06060iAXVH80,MXVH80202403

main57806-06100iMXVA80202403

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-06080iAXVH80,MXVA80,MXVH80202403

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06110iAXVH80,MXVA80,MXVH80202403

58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE

main58107-06060iAXVH80,MXVA80,MXVH80202403

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-06020iAXVH80,MXVA80,MXVH80202403

58111APAN, FRONT FLOOR, RH

main58111-06150iAXVH80,MXVA80,MXVH80202403

58112CPAN, FRONT FLOOR, LH

main58112-06031iAXVH80,MXVA80,MXVH80202403

58113APANEL, FRONT FLOOR, CENTER

main58113-06030iAXVH80,MXVA80,MXVH80202403

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-06030iAXVH80,MXVA80,MXVH80202403

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-06030iAXVH80,MXVA80,MXVH80202403

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-06060iAXVH80,MXVA80,MXVH80202403

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-06100iAXVH80,MXVA80,MXVH80202403

58136COVER, FRONT FLOOR HOLE

main58136-06060×2iAXVH80,MXVA80,MXVH80202403

58136BCOVER, CENTER FLOOR HOLE

main58136-06110×2iAXVH80,MXVA80,MXVH80202403

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06150iAXVH80,MXVA80,MXVH80202403

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06110iMXVA80202403

main58202-06180iAXVH80,MXVH80202403

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-06070iAXVH80,MXVA80,MXVH80202403

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-06090iAXVH80,MXVA80,MXVH80202403

58211HPAN, CENTER FLOOR

main58211-06350iMXVA80202403

main58211-06380iAXVH80,MXVH80202403

58218PLATE, SEAT FLOOR PANEL

main58218-06080iAXVH80,MXVH80202403

58301GPAN SUB-ASSY, REAR FLOOR

main58301-06902iMXVA80202403

main58301-06903iAXVH80,MXVH80202403

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-06130iMXVA80,MXVH80..E202403

main58303-06140iAXVH80,MXVA80,MXVH80..G,S202403

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-06050iAXVH80,MXVA80,MXVH80202403

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-06060iAXVH80,MXVA80,MXVH80202403

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-06130iAXVH80,MXVH80202403

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06230iAXVH80,MXVA80,MXVH80202403

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-06050iAXVH80,MXVA80,MXVH80202403

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06110iMXVA80202403

main58325-06120iAXVH80,MXVH80202403

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-06060iAXVH80,MXVH80202403

58385DBRACKET, REAR BUMPER COVER

main58385-06160×2iAXVH80,MXVA80,MXVH80202403

90105C0208

main90105-C0208

90105C0387

main90105-C0387

90115C0014

main90115-C0014

90119C0085

main90119-C0085

90119C0523

main90119-C0523

90176C0008

main90176-C0008

9167100835

main91671-00835

56 parts on this diagram · 2 diagrams in section
