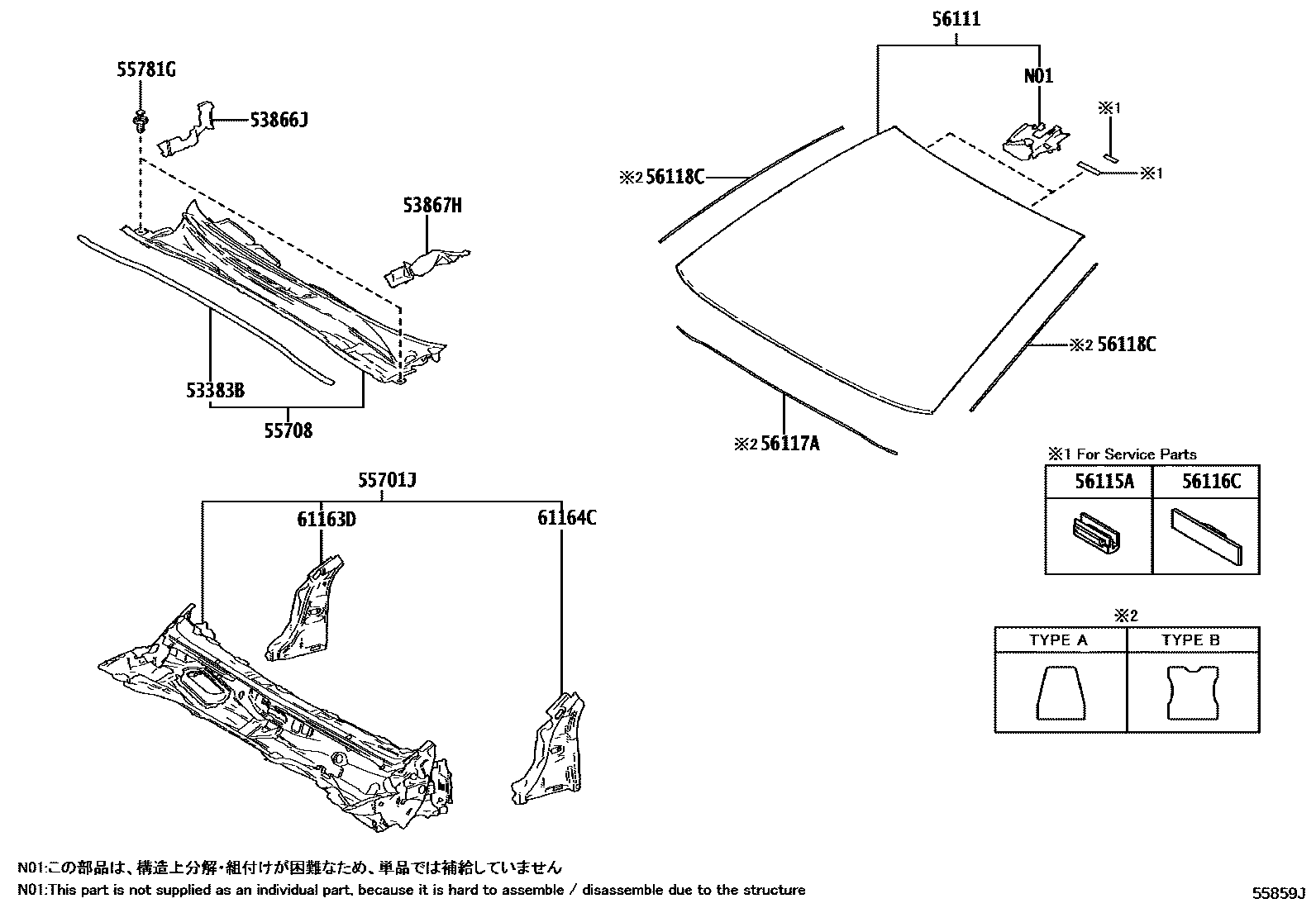

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-06210iAXVH80,MXVA80,MXVH80202403

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-06150iAXVH80,MXVA80,MXVH80202403

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-06150iAXVH80,MXVA80,MXVH80202403

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-06360iAXVH80,MXVA80,MXVH80202403

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06290iAXVH80,MXVA80,MXVH80202403

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iAXVH80,MXVA80,MXVH80202403

(J)

main90467-C0037iAXVH80,MXVA80,MXVH80202403

(L)

56111GLASS, WINDSHIELD

main56101-06K50iAXVH80,MXVA80,MXVH80..G,S202403

MARK = K5

main56101-06K70iMXVA80,MXVH80..E202403

main56101-06L30iAXVH80,MXVA80,MXVH80..G,S202403

MARK = L3

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iAXVH80,MXVA80,MXVH80202403

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXVH80,MXVA80,MXVH80202403

56117ADAM, WINDOW GLASS ADHESIVE

main56117-06210iAXVH80,MXVA80,MXVH80202403

L=1298,TYPE A:REFER ILLUST.

main56117-06210iAXVH80,MXVA80,MXVH80202403

L=1298,G VALUE PACKAGE,TYPE A:REFER ILLUST.

main56117-06250iAXVH80,MXVA80,MXVH80202403

L=1298,TYPE B:REFER ILLUST.

main56117-06250iAXVH80,MXVA80,MXVH80202403

L=1298,G VALUE PACKAGE,TYPE B:REFER ILLUST.

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-06060iAXVH80,MXVA80,MXVH80202403

TYPE A:REFER ILLUST.

main56118-06080iAXVH80,MXVA80,MXVH80202403

TYPE B:REFER ILLUST.

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-06020iAXVH80,MXVA80,MXVH80202403

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-06020iAXVH80,MXVA80,MXVH80202403

13 parts on this diagram · 1 diagram in section
