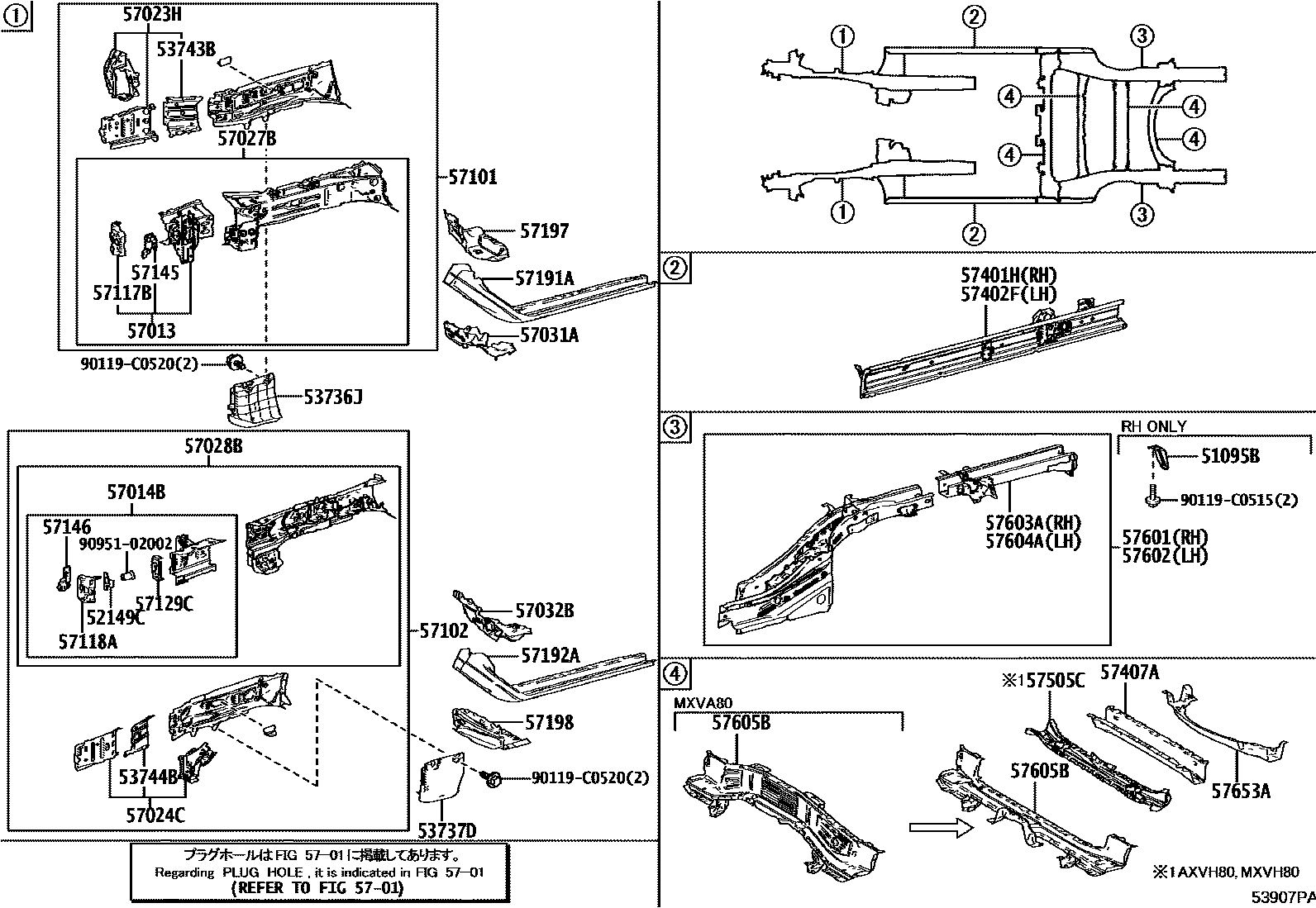

FLOOR SIDE MEMBER

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-06010iAXVH80,MXVA80,MXVH80202403

52149CSTOPPER, FRONT BUMPER REINFORCEMENT, LH

main52149-06050iAXVH80,MXVA80,MXVH80202403

53736JSEAL, FENDER APRON

main53736-06100iAXVH80,MXVA80,MXVH80202403

53737DSEAL, FRONT FENDER APRON, LH

main53737-06140iAXVH80,MXVA80,MXVH80202403

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-06020iAXVH80,MXVA80,MXVH80202403

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-06020iAXVH80,MXVA80,MXVH80202403

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-06041iAXVH80,MXVA80,MXVH80202403

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-06031iAXVH80,MXVA80,MXVH80202403

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-06020iAXVH80,MXVA80,MXVH80202403

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-06020iAXVH80,MXVA80,MXVH80202403

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06150iAXVH80,MXVA80,MXVH80202403

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06230iAXVH80,MXVA80,MXVH80202403

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-06050iAXVH80,MXVA80,MXVH80202403

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-06050iAXVH80,MXVA80,MXVH80202403

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06903iAXVH80,MXVA80,MXVH80202403

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06903iAXVH80,MXVA80,MXVH80202403

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06100iAXVH80,MXVA80,MXVH80202403

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06100iAXVH80,MXVA80,MXVH80202403

57129CPLATE, FRONT SIDE MEMBER, FRONT LH

main57129-06030iAXVH80,MXVA80,MXVH80202403

57145PLATE, FRONT SIDE MEMBER, CENTER RH

main57145-06091iAXVH80,MXVA80,MXVH80202403

57146PLATE, FRONT SIDE MEMBER, CENTER LH

main57146-06071iAXVH80,MXVA80,MXVH80202403

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-06070iAXVH80,MXVA80,MXVH80202403

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-06060iAXVH80,MXVA80,MXVH80202403

57197BOX, TORQUE, FRONT RH

main57197-06091iAXVH80,MXVA80,MXVH80202403

57198BOX, TORQUE, FRONT LH

main57198-06091iAXVH80,MXVA80,MXVH80202403

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-06320iAXVH80,MXVA80,MXVH80202403

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-06300iAXVH80,MXVA80,MXVH80202403

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-06042iAXVH80,MXVA80,MXVH80202403

57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-06060iAXVH80,MXVH80202403

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06440iAXVH80,MXVA80,MXVH80202403

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06270iAXVH80,MXVA80,MXVH80202403

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-06030iAXVH80,MXVA80,MXVH80202403

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-06060iAXVH80,MXVA80,MXVH80202403

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06220iMXVA80202403

main57605-06230iAXVH80,MXVH80202403

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06120iAXVH80,MXVA80,MXVH80202403

90119C0515

main90119-C0515

90119C0520

main90119-C0520

9095102002

main90951-02002

39 parts on this diagram · 1 diagram in section
