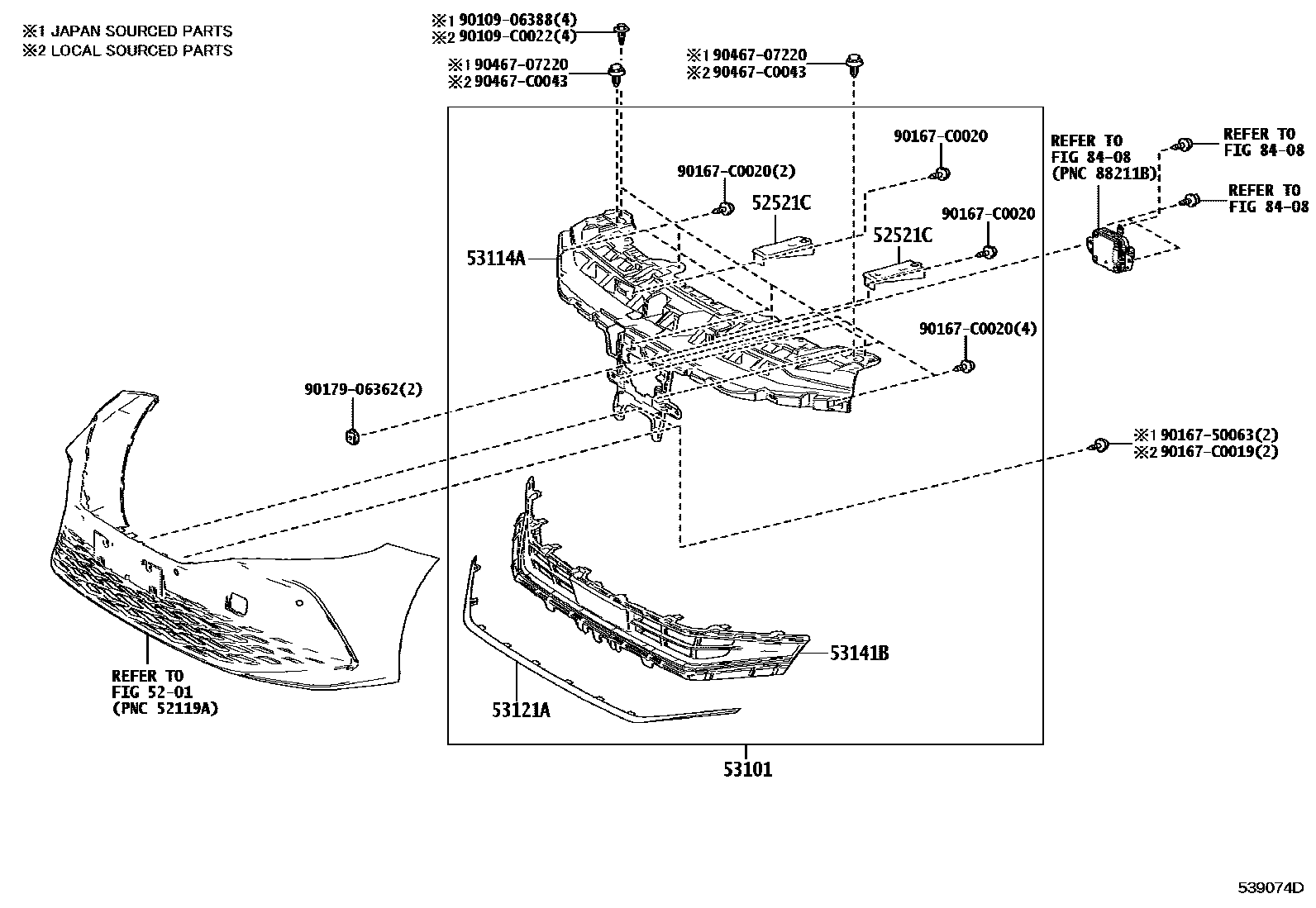

RADIATOR GRILLE

0001 1 0002 1

5201

52521CRETAINER, FRONT BUMPER, UPPER

main52521-06160iAXVH80,MXVA80,MXVH80202403

53101GRILLE SUB-ASSY, RADIATOR

main53101-06B30iAXVH80,MXVH80..S202403-202508

NO PAINT REQ.

main53101-06C60iAXVH80,MXVH80..G202403-202508

NO PAINT REQ.

53114AGRILLE, RADIATOR, INNER

main53114-06140iAXVH80,MXVA80,MXVH80..S202403

main53114-06150iAXVH80,MXVA80,MXVH80..E,G202403

53121AMOULDING, RADIATOR GRILLE

main53121-06080iAXVH80,MXVA80,MXVH80..E,G202403

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-06090iAXVH80,MXVH80..S202403-202508

main53141-06130iAXVH80,MXVH80..G202403-202508

8408

9010906388

main90109-06388

90109C0022

main90109-C0022

9016750063

main90167-50063

90167C0019

main90167-C0019

90167C0020

main90167-C0020

9017906362

main90179-06362

9046707220

main90467-07220

90467C0043

main90467-C0043

15 parts on this diagram · 2 diagrams in section
