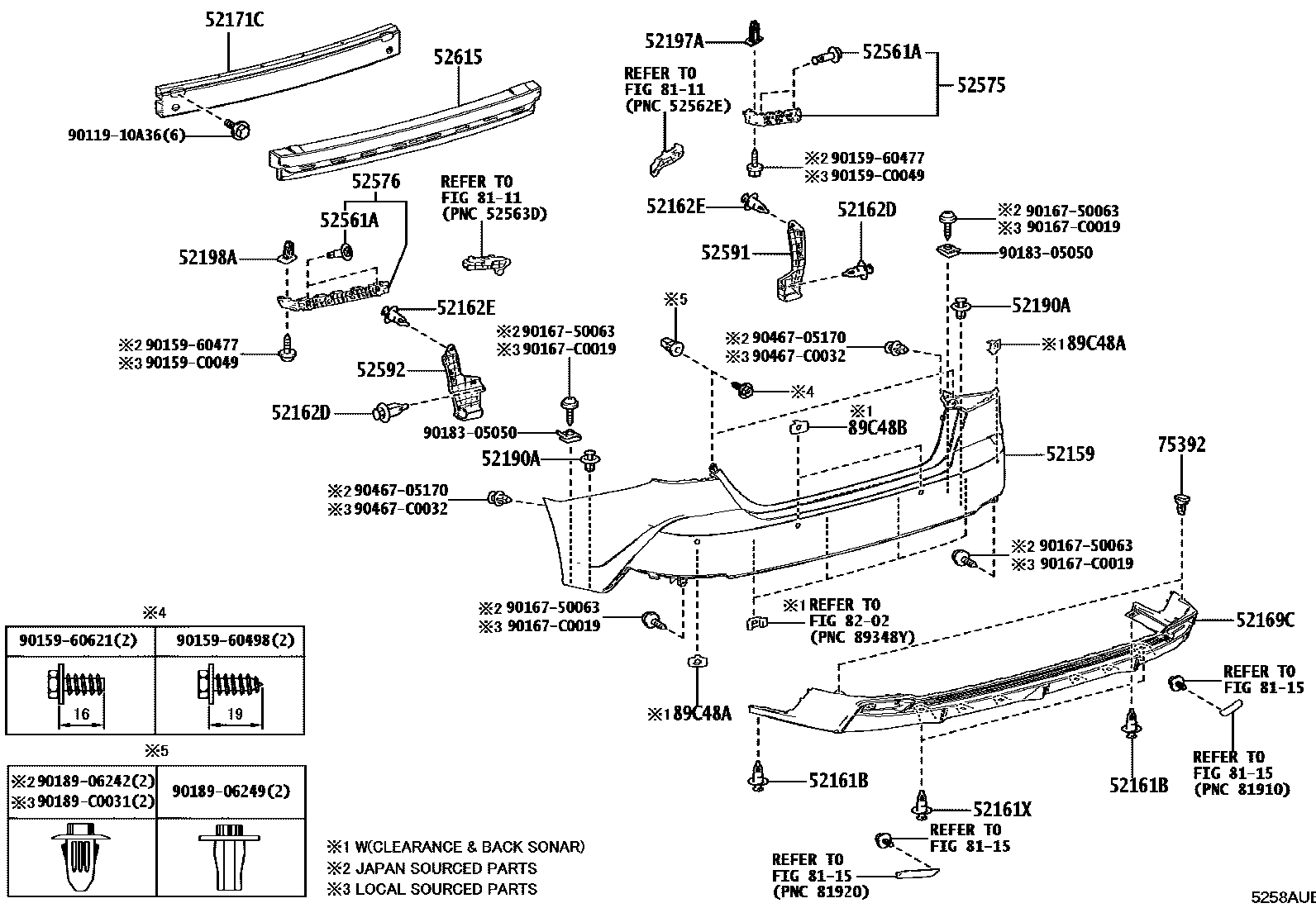

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,G VALUE PACKAGE
52161BPIECE, REAR BUMPER
52161XPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
PAINT REQ.
PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52190ACLIP
52197ABRACKET, REAR BUMPER SEAL, RH
(L)
(J)
52198ABRACKET, REAR BUMPER SEAL, LH
(L)
(J)
52561ACLIP(FOR REAR BUMPER RETAINER)
(J)
(L)
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
(L)
(J)
8111
8115
8202
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
G VALUE PACKAGE
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
G VALUE PACKAGE
9011910A36
main90119-10A36
9015960477
main90159-60477
9015960498
main90159-60498
9015960621
main90159-60621
90159C0049
main90159-C0049
9016750063
main90167-50063
90167C0019
main90167-C0019
9018305050
main90183-05050
9018906242
main90189-06242
9018906249
main90189-06249
90189C0031
main90189-C0031
9046705170
main90467-05170
90467C0032
main90467-C0032
35 parts on this diagram · 1 diagram in section
