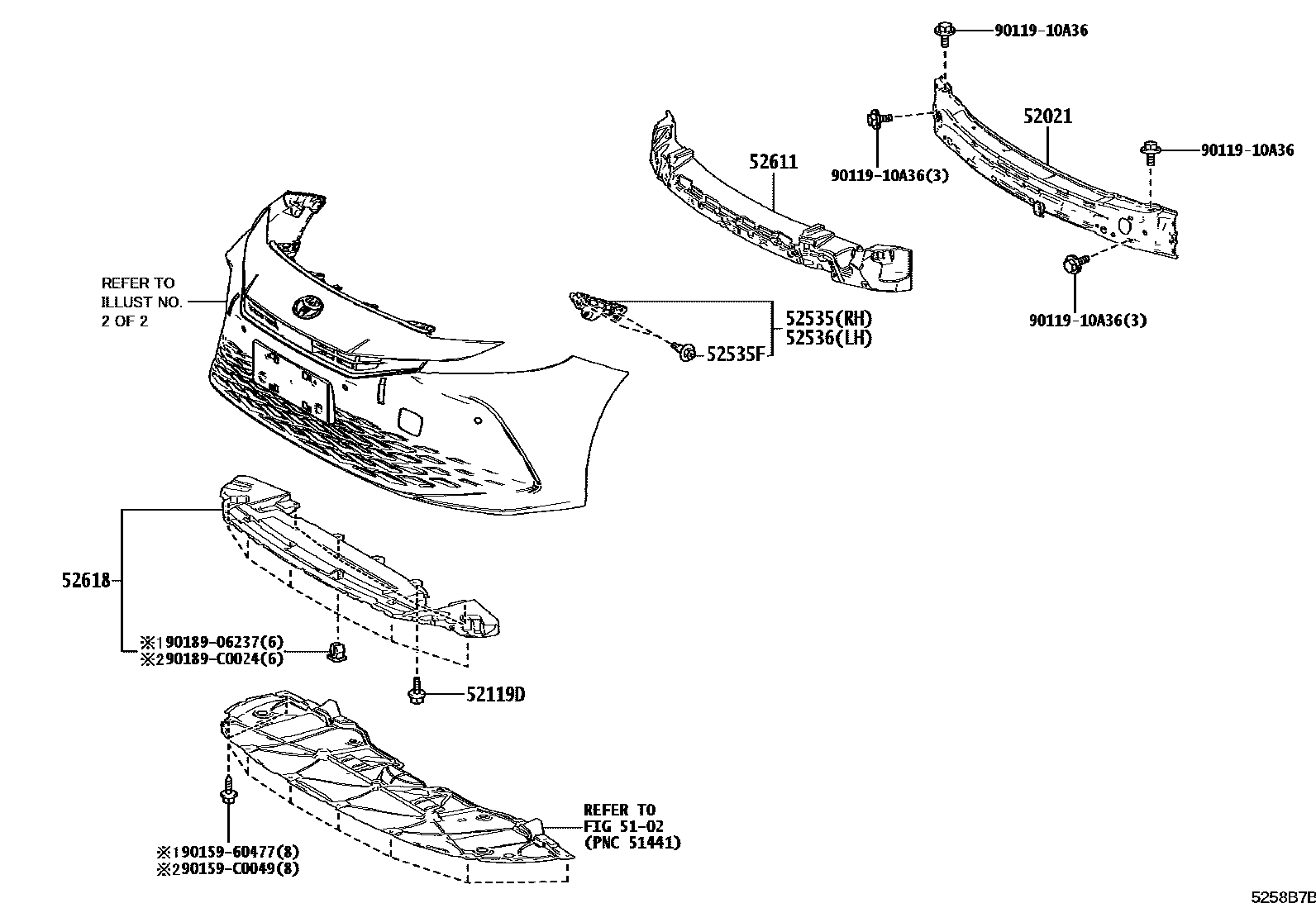

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06220iAXVH80,MXVH80202403

main52021-06230iMXVA80202403

52119DSCREW, NO.1

main90119-06A13iAXVH80,MXVA80,MXVH80202403

(J)

main90119-C0520iAXVH80,MXVA80,MXVH80202403

(L)

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06250iAXVH80,MXVA80,MXVH80202403

NO PAINT REQ.

52535FCLIP, FRONT BUMPER SIDE RETAINER

main90467-09237iAXVH80,MXVA80,MXVH80202403

(J)

main90467-C0058iAXVH80,MXVA80,MXVH80202403

(L)

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06180iAXVH80,MXVA80,MXVH80202403

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06620iAXVH80,MXVA80,MXVH80202403

52618ABSORBER, FRONT BUMPER, LOWER

main52618-06130iAXVH80,MXVA80,MXVH80202403

9011910A36

main90119-10A36

9015960477

main90159-60477

90159C0049

main90159-C0049

9018906237

main90189-06237

90189C0024

main90189-C0024

13 parts on this diagram · 3 diagrams in section
