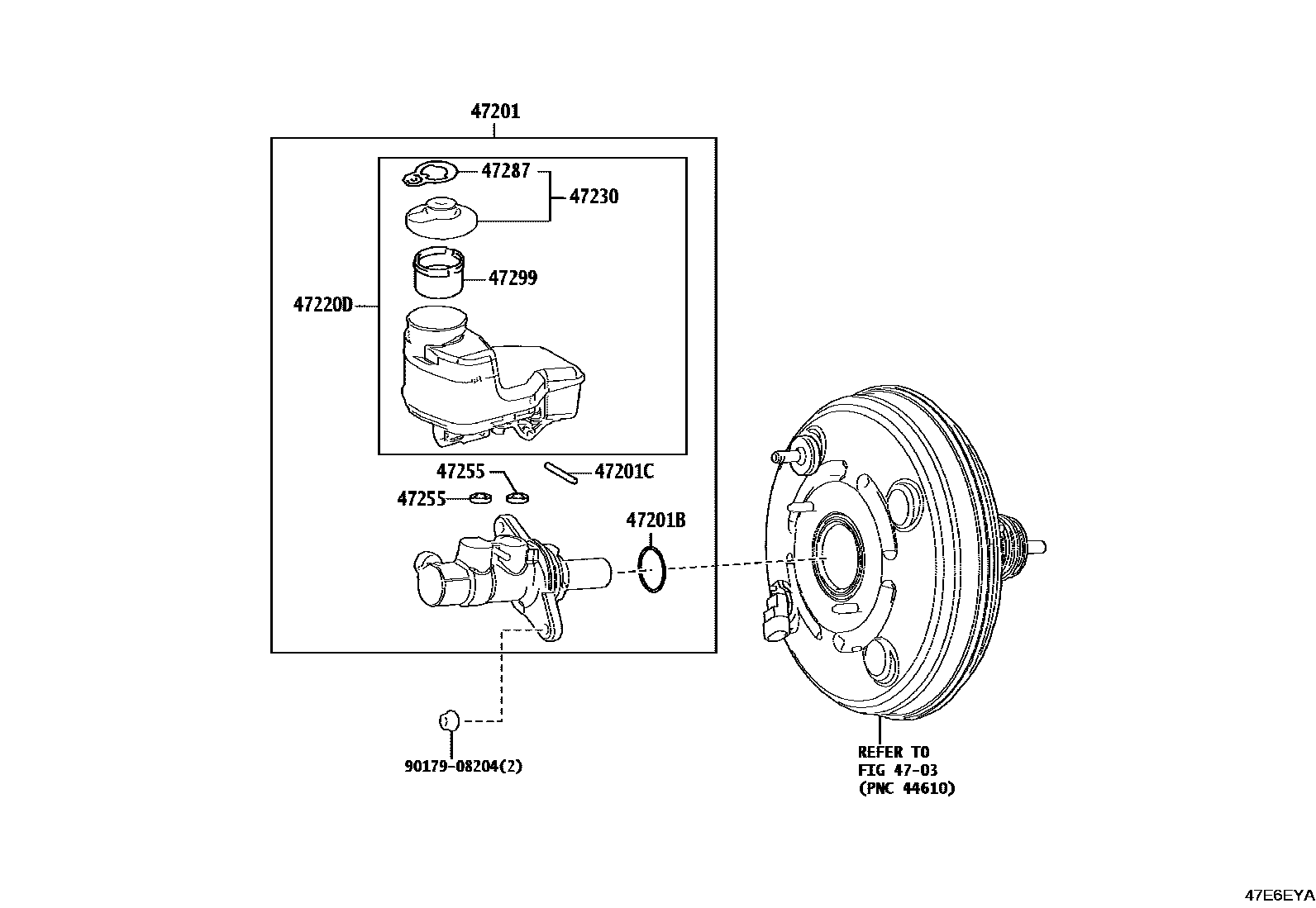

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06570iMXVA80202403

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iMXVA80202403

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMXVA80202403

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06350iMXVA80202403

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R030iMXVA80202403

main47230-47090iAXVH80,MXVH80202403

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iMXVA80202403

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iMXVA80202403

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMXVA80202403

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
