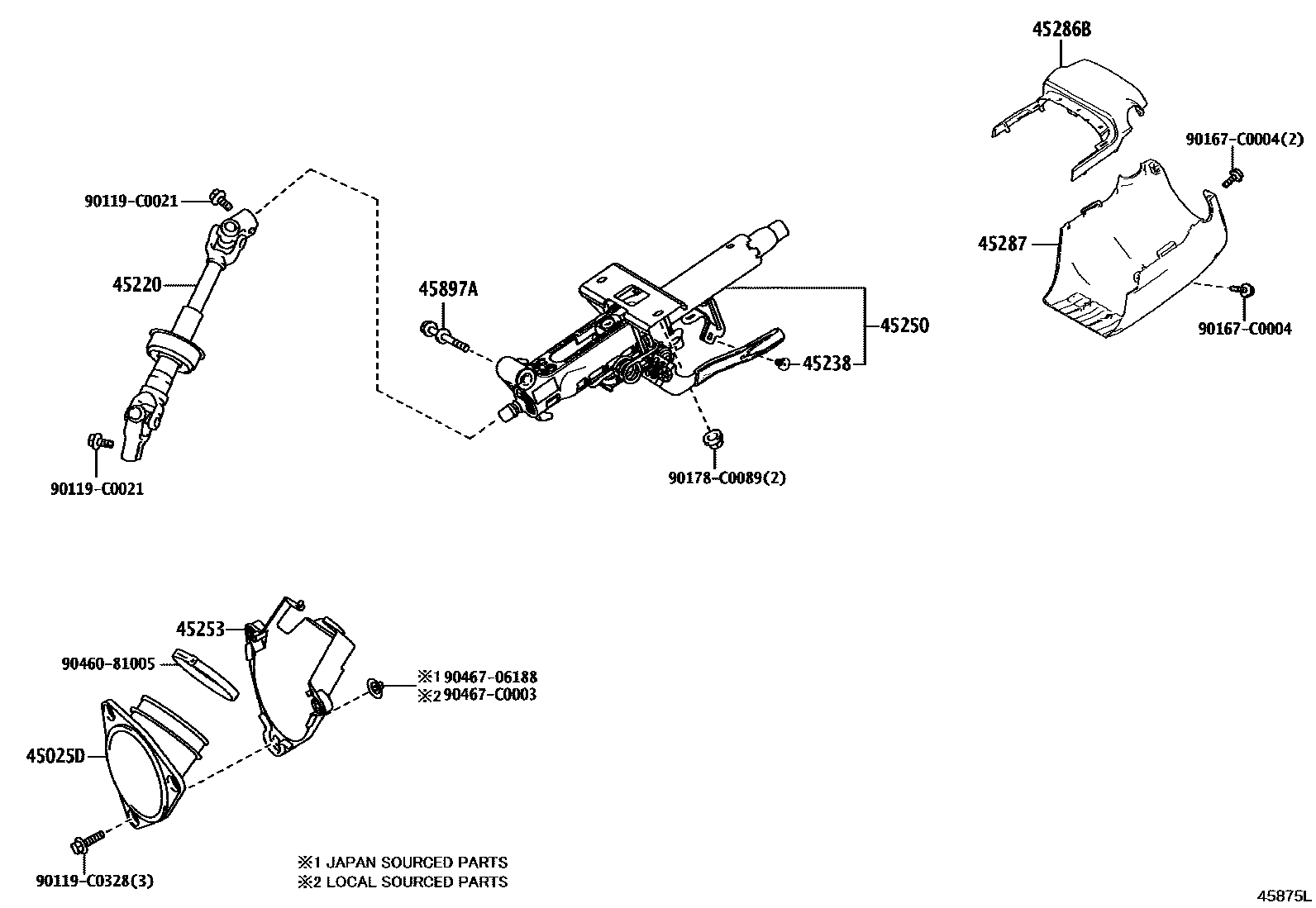

STEERING COLUMN & SHAFT

0001 1MANUAL TILT STEERING 0002 1POWER TILT STEERING

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06210iAXVH80,MXVA80,MXVH80202403

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06310iAXVH80,MXVA80202403

main45220-06330iMXVH80202403

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAXVH80,MXVA80,MXVH80202403

45250COLUMN ASSY, STEERING

main45250-0R090iAXVH80,MXVA80,MXVH80202403

45253COVER, STEERING COLUMN HOLE

main45253-06190iAXVH80,MXVA80,MXVH80202403

45286BCOVER, STEERING COLUMN, UPR

main45286-06380iAXVH80,MXVA80,MXVH80202403

45287COVER, STEERING COLUMN, LWR

main45287-06530iAXVH80,MXVA80,MXVH80202403

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXVH80,MXVA80,MXVH80202403

TYPE A:REFER ILLUST.

main90119-C0427iAXVH80,MXVA80,MXVH80202403

TYPE B:REFER ILLUST.

90119C0021

main90119-C0021

90119C0328

main90119-C0328

90167C0004

main90167-C0004

90178C0089

main90178-C0089

9046081005

main90460-81005

9046706188

main90467-06188

90467C0003

main90467-C0003

15 parts on this diagram · 2 diagrams in section
