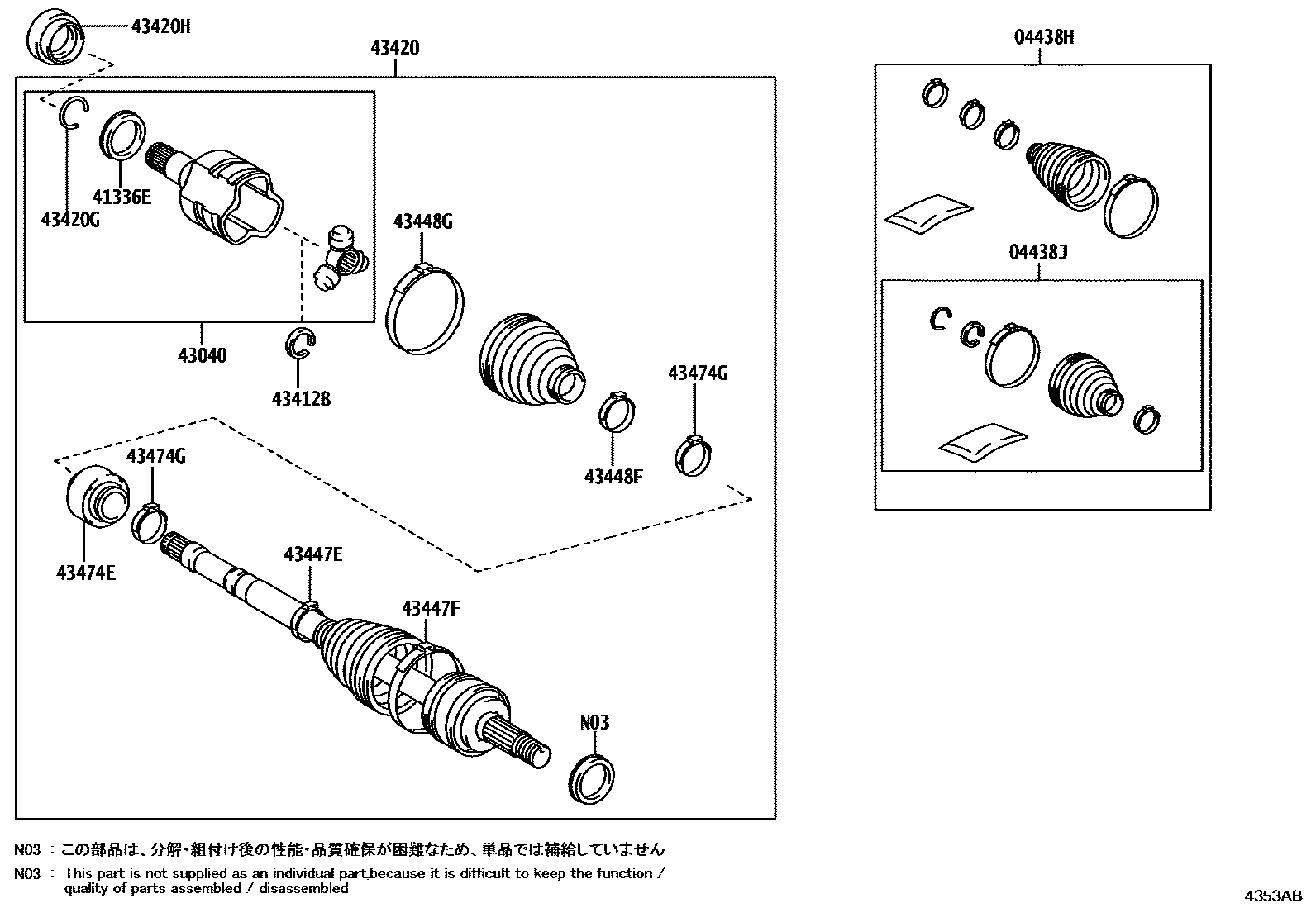

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-02740iAXVH80,MXVA80,MXVH80202403

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-02670iAXVH80,MXVA80,MXVH80202403

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-06340iAXVH80,MXVA80,MXVH80202403

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-06350iAXVH80,MXVA80,MXVH80202403

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-28010iAXVH80,MXVA80,MXVH80202403

(J)

main90520-C0030iAXVH80,MXVA80,MXVH80202403

(L)

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-06B60iAXVH80,MXVH80202403

main43420-07110iMXVA80202403

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90520-C0040iAXVH80,MXVA80,MXVH80202403

(L)

main90521-33002iAXVH80,MXVA80,MXVH80202403

(J)

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iMXVA80202403

main90311-C0045iAXVH80,MXVH80202403

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-42100iAXVH80,MXVA80,MXVH80202403

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-42090iAXVH80,MXVA80,MXVH80202403

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-28090iAXVH80,MXVA80,MXVH80202403

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-33140iAXVH80,MXVA80,MXVH80202403

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-06190iMXVA80202403

main43474-0R110iAXVH80,MXVH80202403

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-06420iAXVH80,MXVA80,MXVH80202403

(L)

main42345-12090iAXVH80,MXVA80,MXVH80202403

(J)

14 parts on this diagram · 2 diagrams in section
