TRANSAXLE ASSY(HEV OR BEV OR FCEV)

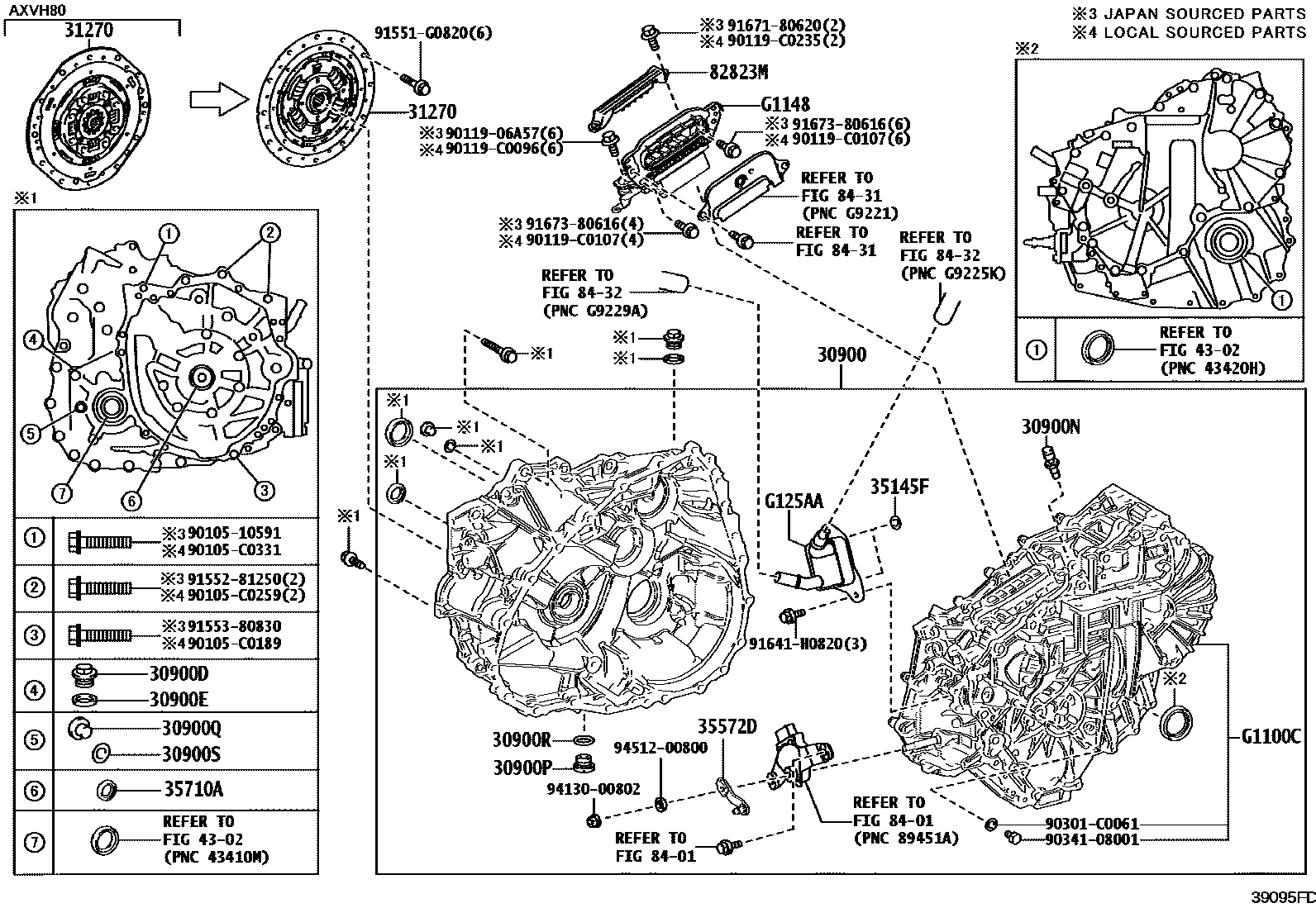

Parts diagram
30900TRANSAXLE ASSY, HYBRID VEHICLE
main30900-06030i202403-202409
sub30900-06031
main30900-06031i202410
main30900-06040i202406-202409
sub30900-06041
main30900-06041i202410
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
main90341-18060i¥240202403
(J)
main90341-C0022i202403
(L)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
main90430-18008i¥110202403
30900NPLUG, BREATHER(FOR TRANSAXLE)
main90930-03201i¥120202403
30900PPLUG, DRAIN(HEV)
main90341-18016i¥190202403
30900QPLUG, FILLER(HEV)
main90341-18090i¥190202403
30900RGASKET, DRAIN PLUG(HEV)
main90430-18008i¥110202403
(J)
main90430-C0007i202403
(L)
30900SGASKET, FILLER PLUG(HEV)
main90430-18008i¥110202403
(J)
main90430-C0007i202403
(L)
31270DAMPER ASSY, TRANSMISSION INPUT
main31270-06020i202412
main31270-06030i202406-202412
main31270-0A010i202403
35145FGASKET, TRANSAXLE CASE
main35697-0A010i202403
35572DLEVER, TRANSMISSION CONTROL SHAFT
main35572-0A010i202403
(L)
main35572-63020i202403
(J)
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
main90311-C0063i202403
4302
82823MCAP, TERMINAL
main82823-02060i202403
8401
8431
8432
G1100CMOTOR ASSY, HYBRID VEHICLE
mainG110006020i202403
mainG110006030i202406
G1148CABLE, MOTOR
mainG11480A020i202403-202409
subG1148-0A021
mainG11480A021i202410
G125AACOOLER, MOTOR COOLING
mainG125A0A010i202403
9010510591
main90105-10591¥120
90105C0189
main90105-C0189
90105C0259
main90105-C0259
90105C0331
main90105-C0331
9011906A57
main90119-06A57¥60
90119C0096
main90119-C0096
90119C0107
main90119-C0107
90119C0235
main90119-C0235
90301C0061
main90301-C0061
9034108001
main90341-08001¥120
91551G0820
main91551-G0820¥80
9155281250
main91552-81250¥190
9155380830
main91553-80830¥80
91641H0820
main91641-H0820¥90
9167180620
main91671-80620¥60
9167380616
main91673-80616¥60
9413000802
main94130-00802¥90
9451200800
main94512-00800¥80

38 parts on this diagram · 1 diagram in section
