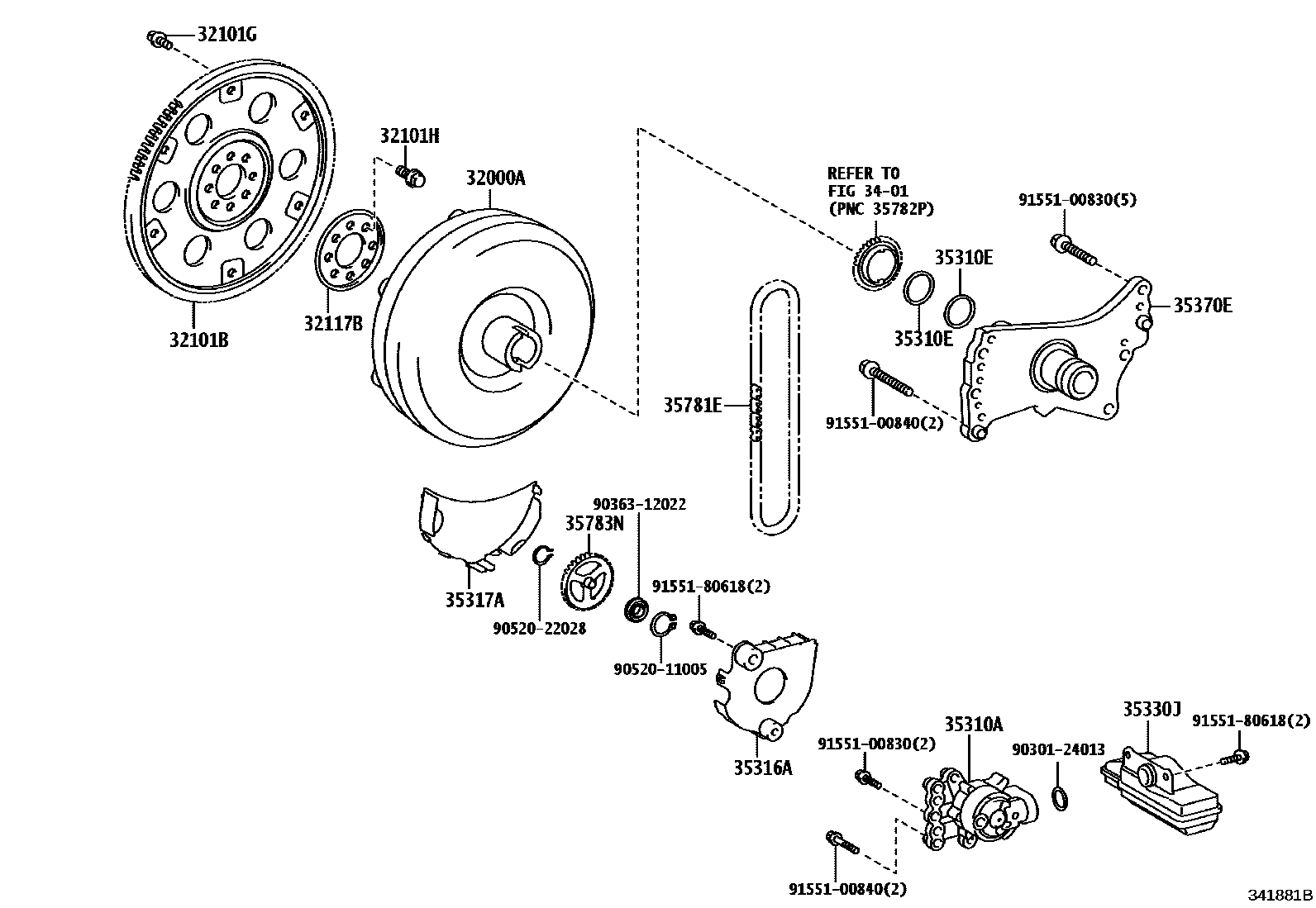

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12460iMXVA80202403

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMXVA80202403

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXVA80202403

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMXVA80202403

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXVA80202403

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMXVA80202403

3401

35310APUMP ASSY, FRONT OIL

main35310-42010iMXVA80202403

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12070iMXVA80202403

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXVA80202403

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXVA80202403

35330JSTRAINER ASSY, OIL

main35330-28040iMXVA80202403

35370ESHAFT ASSY, STATOR (CVT)

main35370-12130iMXVA80202403

35781ECHAIN, TRANSMISSION DRIVE

main35781-42010iMXVA80202403

35783NSPROCKET, DRIVEN

main35783-12060iMXVA80202403

9030124013

main90301-24013

9036312022

main90363-12022

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

21 parts on this diagram · 1 diagram in section
