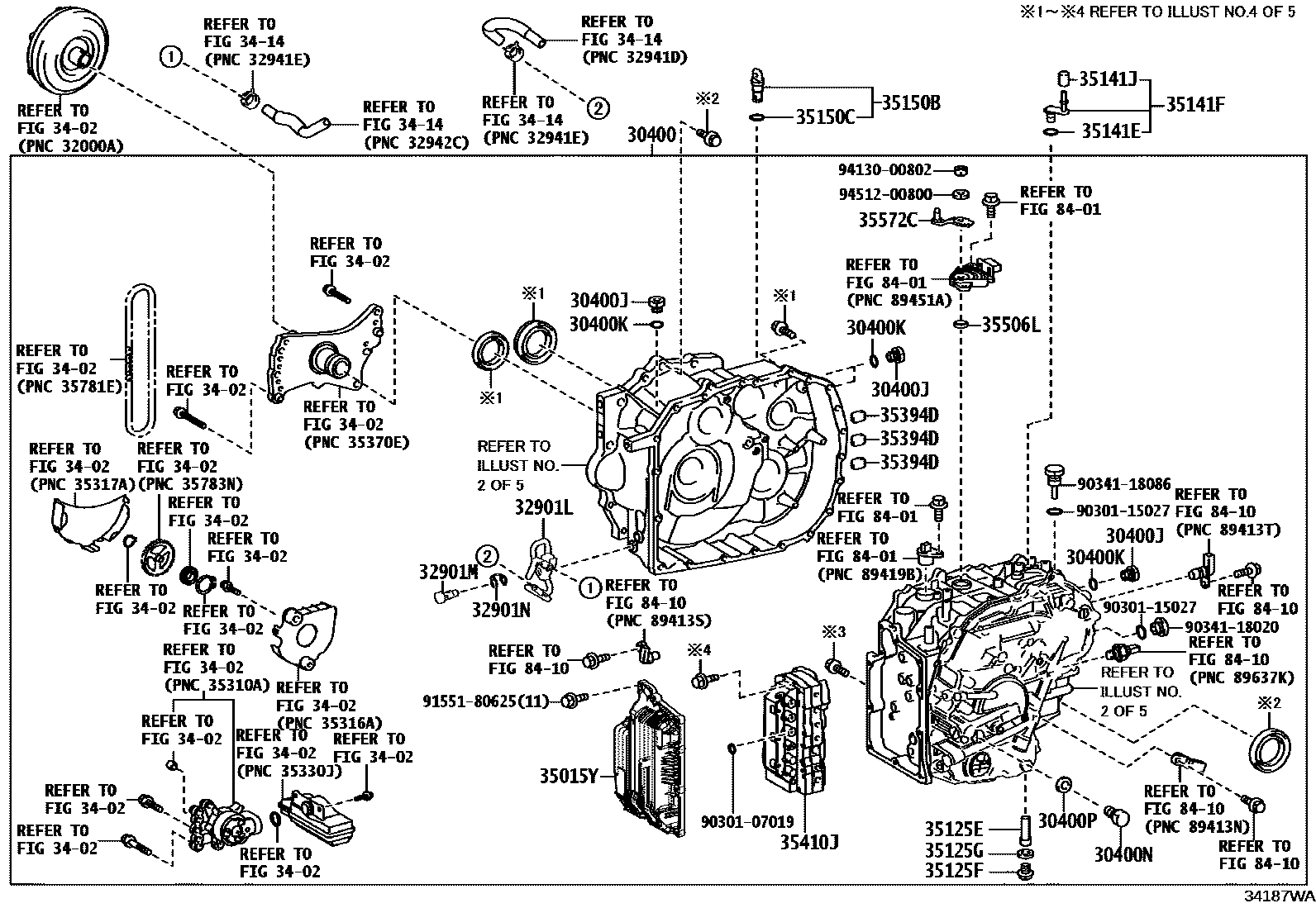

TRANSAXLE ASSY(CVT)

0001 1K121 0002 1K121 0003 1K121 0004 1K121 0005 1K121

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-33030iMXVA80202403

K121

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMXVA80202403

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMXVA80202403

30400NPLUG, REFILL(CVT)

main90341-18077iMXVA80202403

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMXVA80202403

32901LELBOW SUB-ASSY, OIL COOLER

main32901-42010iMXVA80202403

32901MBOLT, UNION(FOR OIL COOLER)

main90401-14019iMXVA80202403

32901NGASKET(FOR OIL COOLER UNION)

main90430-14017iMXVA80202403

3402

3414

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-42020iMXVA80202403

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMXVA80202403

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMXVA80202403

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMXVA80202403

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMXVA80202403

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMXVA80202403

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMXVA80202403

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iMXVA80202403

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXVA80202403

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010iMXVA80202403

35410JBODY ASSY, TRANSMISSION VALVE

main35410-33290iMXVA80202403

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMXVA80202403

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMXVA80202403

8401

8410

9030107019

main90301-07019

9030115027

main90301-15027

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 5 diagrams in section
