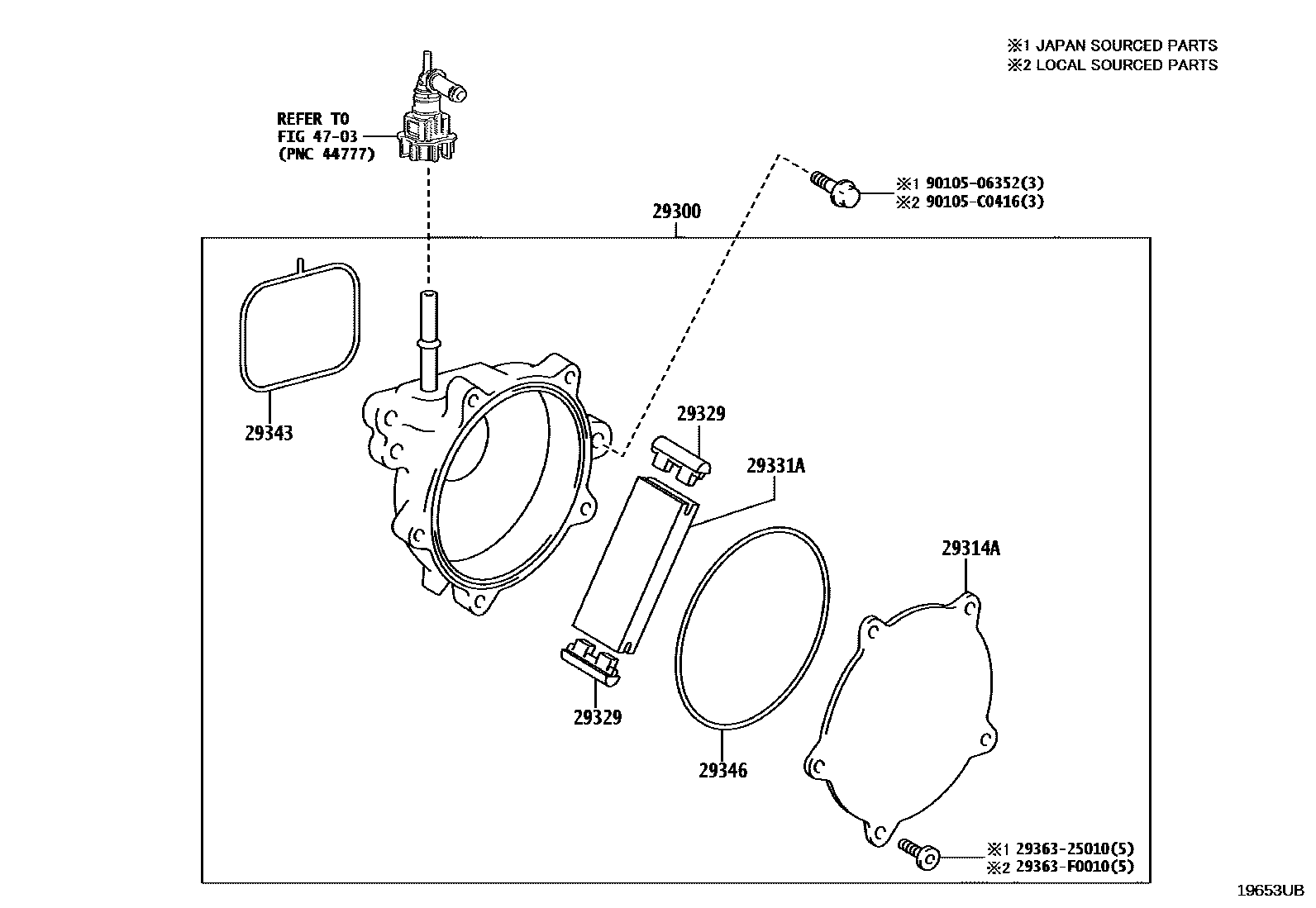

VACUUM PUMP

0001 1TAIHO 0002 1BOSCH

29300PUMP ASSY, VACUUM

main29300-25012iM20..MXVA80202403

*639

main29300-F0012iM20..MXVA80202403

*640

main29300-F2031iM20..MXVA80202403

*641

main29300-F2041iM20..MXVA80202403

*630

29314ACOVER, END

main29314-25010iM20..MXVA80202403

*639

main29314-F0010iM20..MXVA80202403

*640

29329CAP, VACUUM PUMP VANE

main29329-25011×2iM20..MXVA80202403

*639

main29329-F0011×2iM20..MXVA80202403

*640

29331AVANE, VACUUM PUMP

main29331-37010iM20..MXVA80202403

*639

main29331-F0010iM20..MXVA80202403

*640

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20..MXVA80202403

*639

main29343-F0010iM20..MXVA80202403

*640

main29343-F2030iM20..MXVA80202403

*641

29346RING, O VACUUM PUMP COVER

main29346-25010iM20..MXVA80202403

*639

main29346-F0010iM20..MXVA80202403

*640

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

9010506352

main90105-06352

90105C0416

main90105-C0416

11 parts on this diagram · 2 diagrams in section
