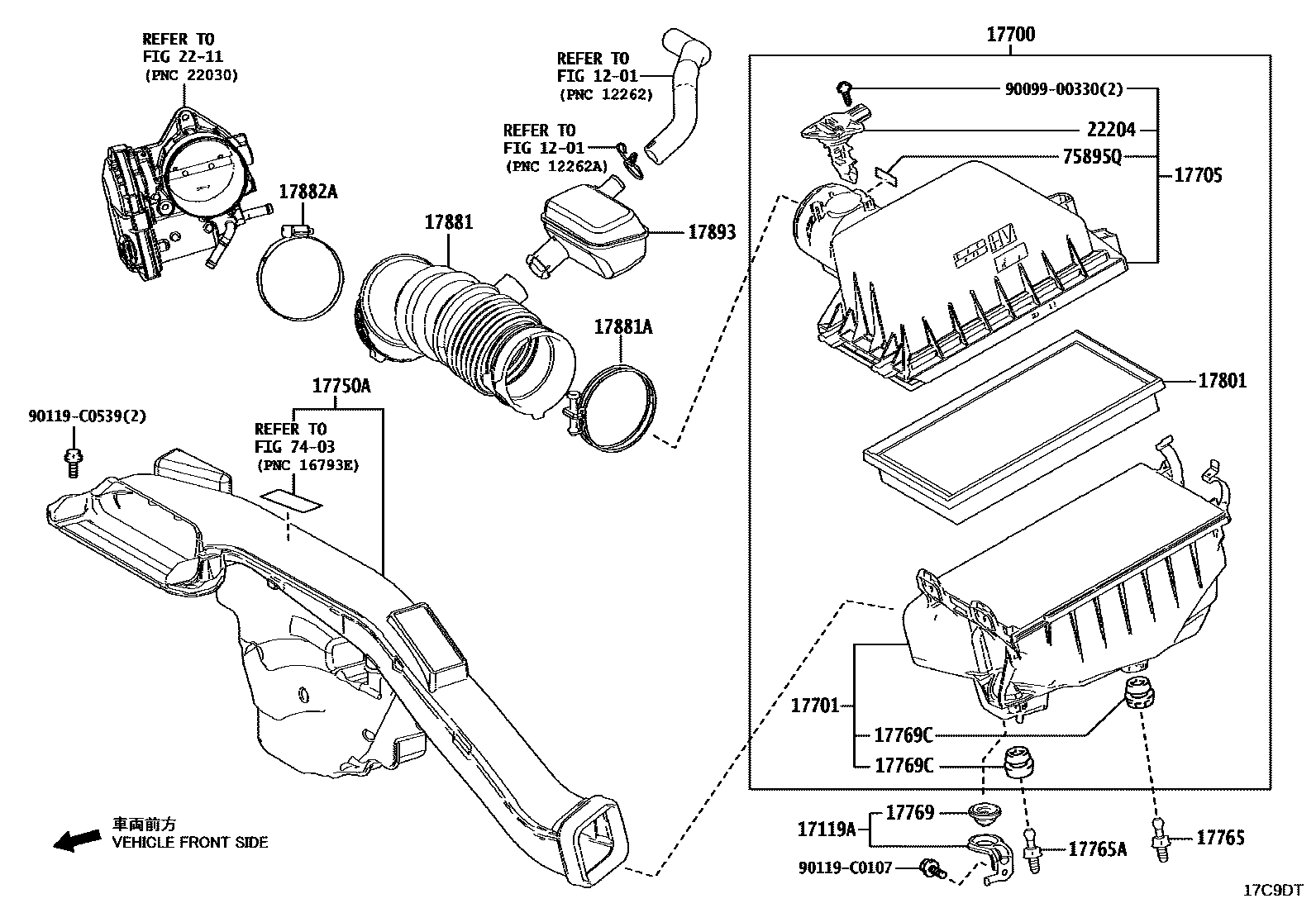

AIR CLEANER

0001 1 0002 1 0003 1

1201

17119ABRACKET, AIR CLEANER

main17119-F0030iA25..AXVH80202403

17700CLEANER ASSY, AIR

main17700-F0261iM20..MXVA80202403

main17700-F0430iA25..AXVH80202403

17701CASE SUB-ASSY, AIR CLEANER

main17701-F0041iM20..MXVH80202403

main17701-F0151iM20..MXVA80202403

17705CAP SUB-ASSY, AIR CLEANER

main17705-F0030iM20..MXVA80202403

main17705-F0310iA25..AXVH80202403

17750AINLET ASSY, AIR CLEANER

main17750-F0180iM20..MXVA80202403

main17750-F0290iM20..MXVH80202403

17765STAY, AIR CLEANER, NO.1

main17765-25010iA25..AXVH80202403

(J)

main17765-F2010iM20..MXVH80202403

(L)

17765ASTAY, AIR CLEANER, NO.1

main17765-25010iM20..MXVH80202403

17769SUPPORT, AIR CLEANER

main17769-25020iA25..AXVH80202403

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iM20..MXVA80202403

main17769-25030iM20..MXVH80202403

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-F0040iA25..AXVH80202403

main17801-F0060iM20..MXVA80202403

17881HOSE, AIR CLEANER, NO.1

main17881-F0030iA25..AXVH80202406

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25..AXVH80202406

main96111-10880iM20..MXVA80202403

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25..AXVH80202406

main96111-10800iM20..MXVA80,MXVH80202403

17893RESONATOR, INTAKE AIR

main17893-F0040iA25..AXVH80202406

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iM20..MXVH80202403

main22204-75040iM20..MXVA80202403

7403

75895QTAPE, MOULDING, NO.1

main75895-52050iAXVH80202403

9009900330

main90099-00330

90119C0107

main90119-C0107

90119C0539

main90119-C0539

22 parts on this diagram · 3 diagrams in section
