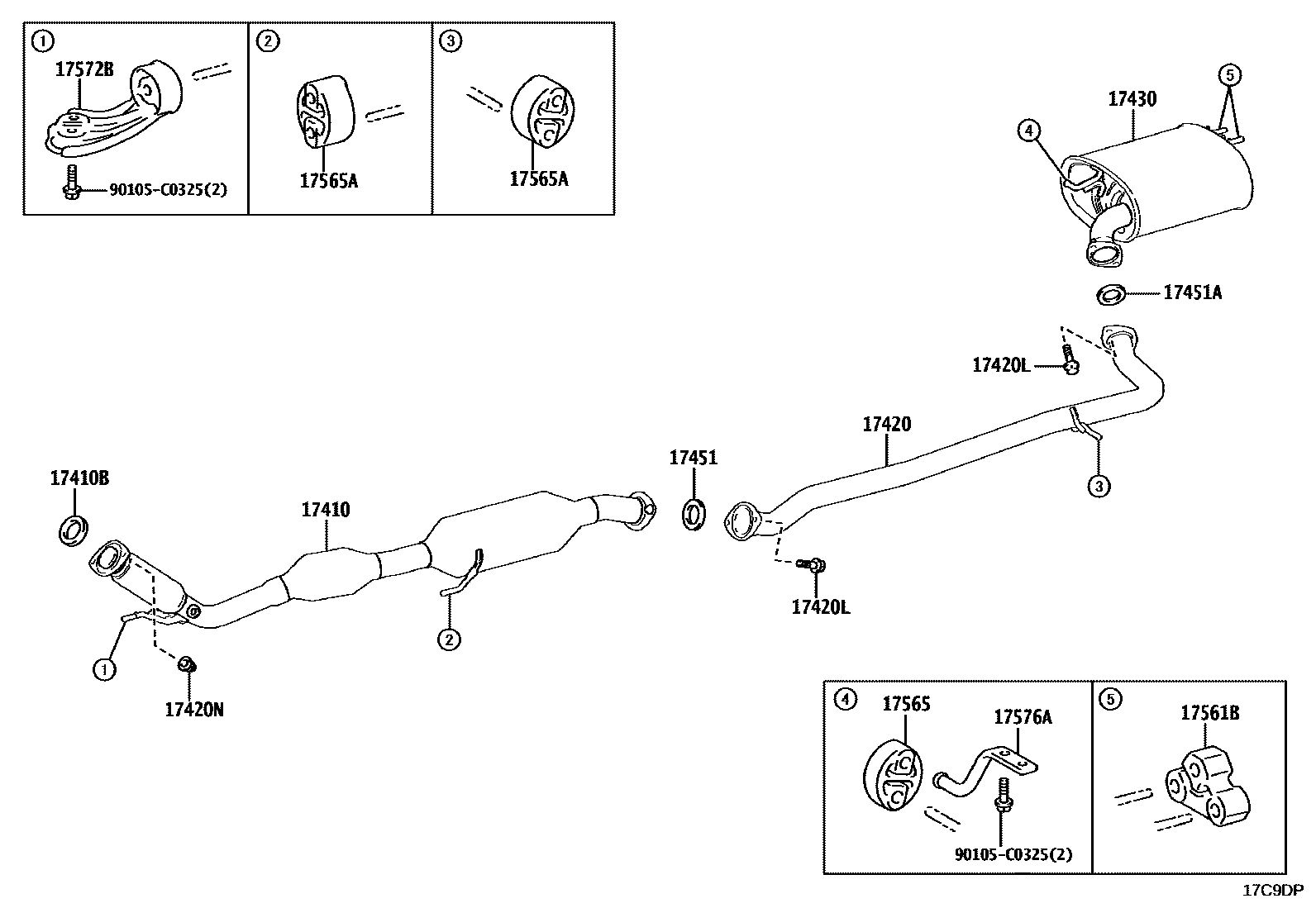

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420LBOLT, FLANGE(FOR EXHAUST PIPE)
17420NNUT, LOCK(FOR EXHAUST TAILPIPE)
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17561BSUPPORT, EXHAUST PIPE, NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
90105C0325
main90105-C0325
14 parts on this diagram · 2 diagrams in section
