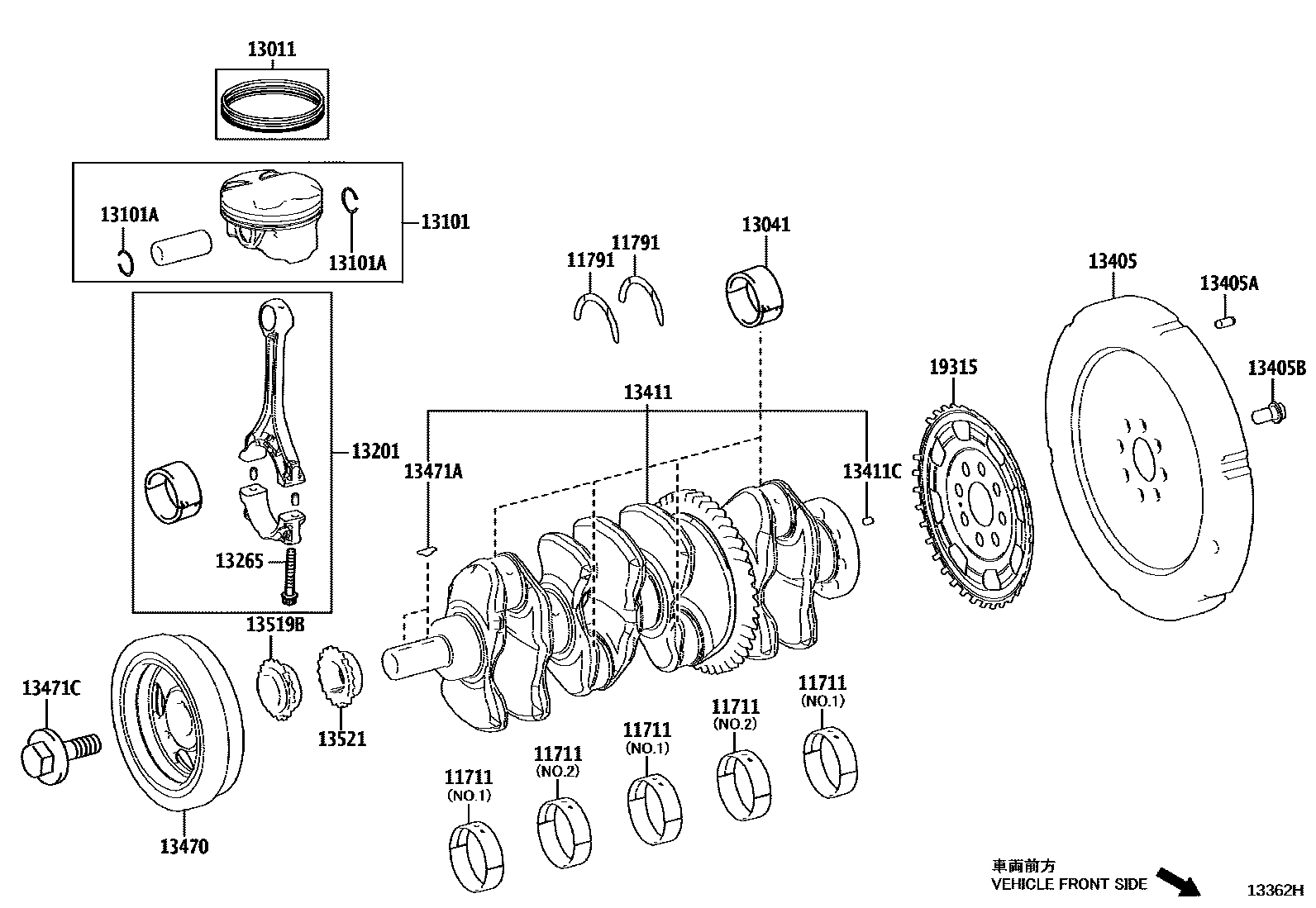

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
MARK C
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(J)
(L)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,(J)
L=18,OD=8,(L)
13405BBOLT, FLYWHEEL SETTING
(J)
(L)
13411CRANKSHAFT
(J)
(L)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
(J)
(L)
13470PULLEY ASSY, CRANKSHAFT
(J)
(L)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519BSPROCKET, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
(J)
(L)
19 parts on this diagram · 2 diagrams in section
