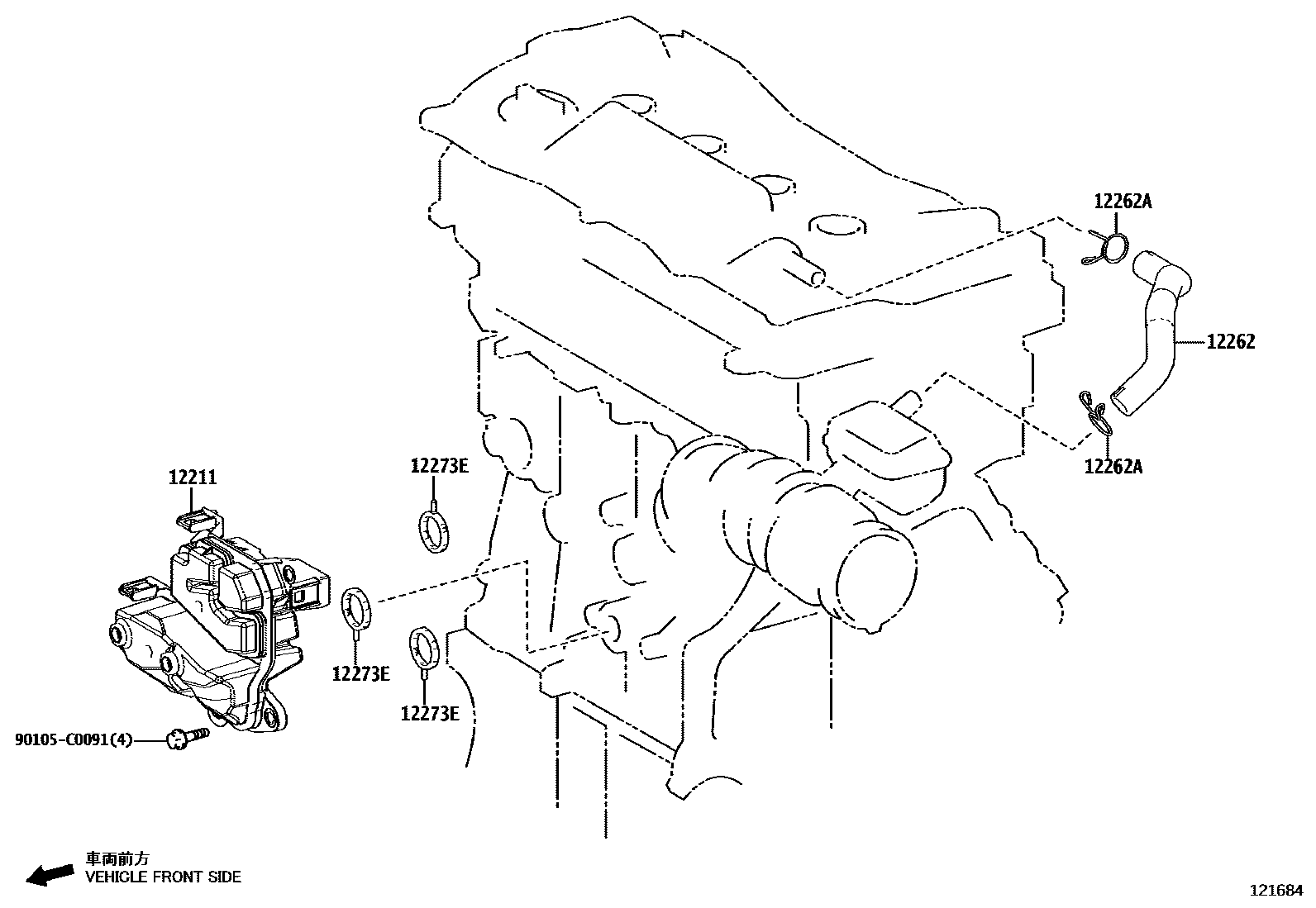

VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-F0020iA25..AXVH80202406

main12211-F2030iM20..MXVA80,MXVH80202403

12262HOSE, VENTILATION, NO.2

main12262-24060iM20..MXVA80202403

main12262-25040iA25..AXVH80202406

main12262-25060iM20..MXVH80202403

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM20..MXVA80,MXVH80202403

12273EGASKET(FOR VENTILATION CASE)

main12273-F2020iM20..MXVA80,MXVH80202403

90105C0091

main90105-C0091

5 parts on this diagram · 3 diagrams in section
