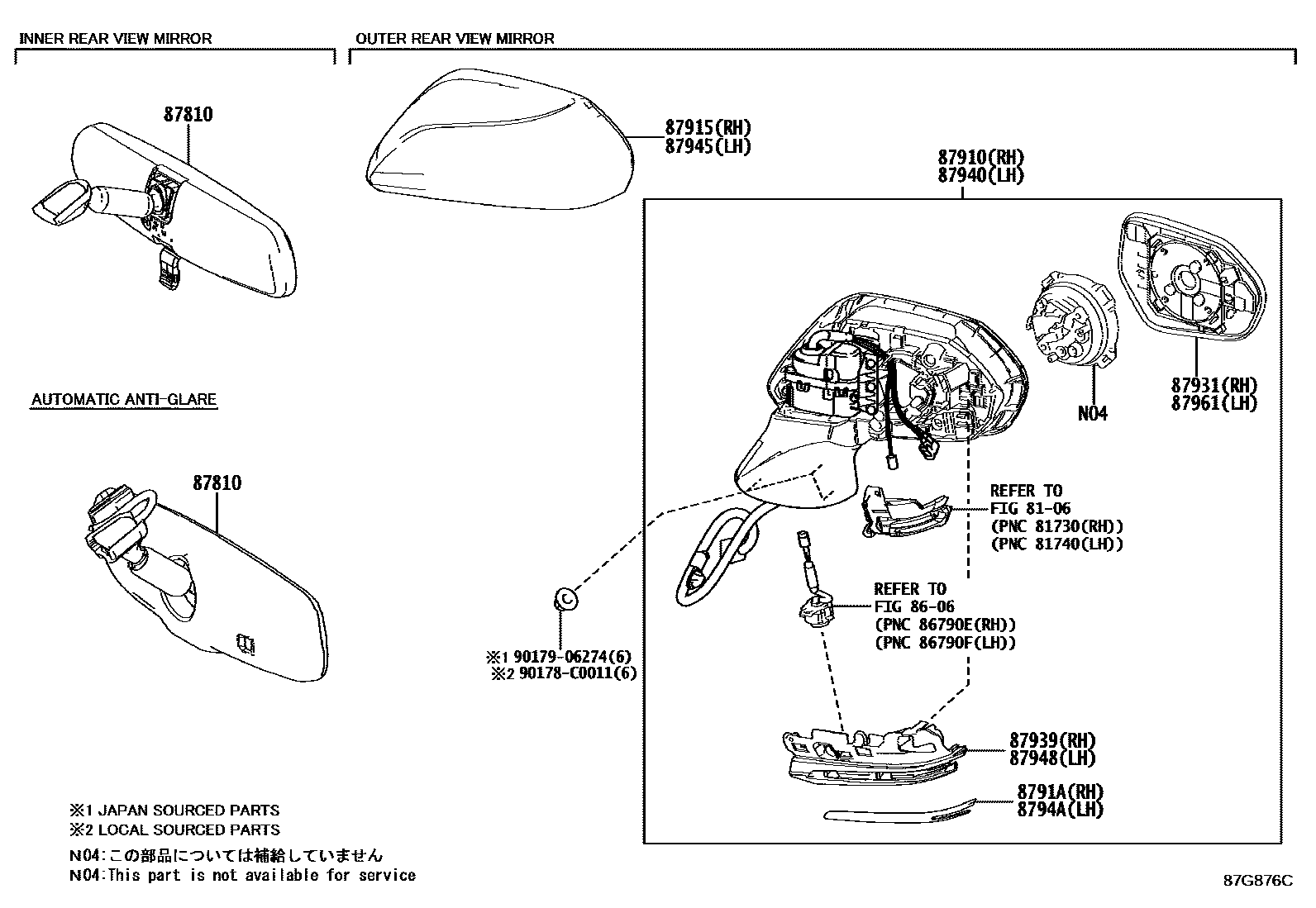

MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-06220iASV71..E201712-201902

VALUE PACKAGE

main87810-06231iAXVA70,AXVH71..G,S202103-202311

main87810-06240iAXVH71..G202103

WITHOUT(CLEARANCE & BACK SONER)

main87810-08180iAXVA70,AXVH71..G,S202311

main87810-06230iAXVA70,AXVH71..G201712-202103

UPGRADE PACKAGE

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-06890iASV71201712-201902

PLATED

main87910-06A00iAXVA70,AXVH71..G201712-202103

PLATED,UPGRADE PACKAGE

main87910-06A01iAXVH71..G202103

PLATED,WITH(ELECTRIC TILT & TELESCOPIC)

main87910-06C90iAXVA70..G202103

WITH(ELECTRIC TILT & TELESCOPIC)

87915COVER, OUTER MIRROR, RH

main87915-06914iAXVA70,AXVH71,MXVA71201712-202103

PAINT REQ.

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-06890iASV71201712-201902

87931OUTER MIRROR, RH

main87902-06090iAXVA70,AXVH71,MXVA71202103

main87902-06100iAXVH71..G202103

WITH(ELECTRIC TILT & TELESCOPIC)

87939COVER, OUTER MIRROR HOLE, RH

main87939-06A00iAXVA70,AXVH71..G201712-202103

UPGRADE PACKAGE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-06890iASV71201712-201902

PLATED

main87940-06A00iAXVA70,AXVH71..G201712-202103

PLATED,UPGRADE PACKAGE

main87940-06A01iAXVH71..G202103

PLATED,WITH(ELECTRIC TILT & TELESCOPIC)

main87940-06C90iAXVA70..G202103

WITH(ELECTRIC TILT & TELESCOPIC)

87945COVER, OUTER MIRROR, LH

main87945-06914iASV71201712-201902

PAINT REQ.

87948COVER, OUTER MIRROR HOLE, LH

main87948-06A00iAXVA70,AXVH71..G201712-202103

UPGRADE PACKAGE

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-06890iAXVA70,AXVH71,MXVA71201712-202103

87961MIRROR OUTER, LH

main87907-06070iASV71201712-201902

main87907-06080iAXVA70,AXVH71..G201712-202103

UPGRADE PACKAGE

90178C0011

main90178-C0011

9017906274

main90179-06274

15 parts on this diagram · 1 diagram in section
