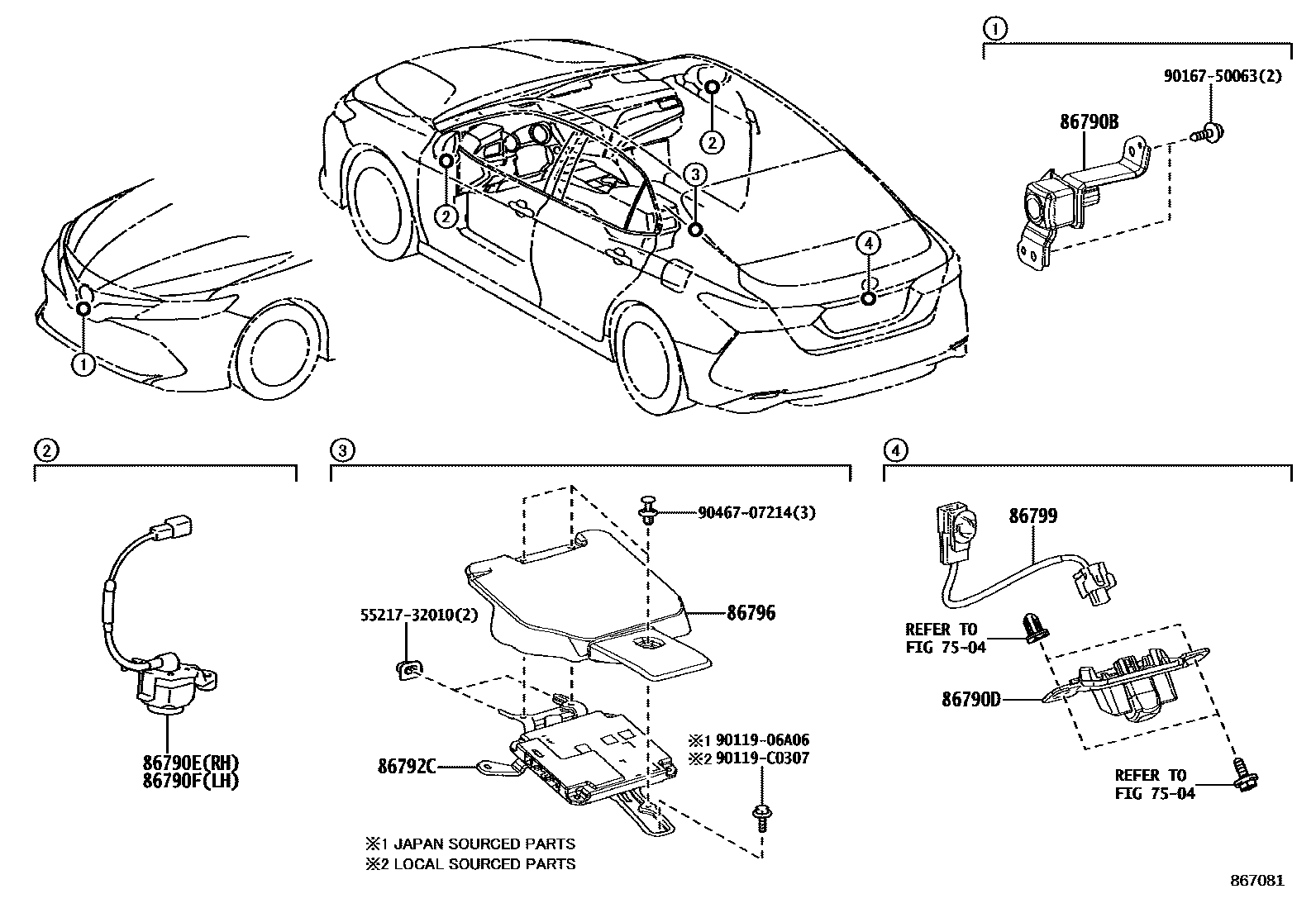

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

7504

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main86790-06220iAXVA70,AXVH71,MXVA71..G,S202103

main867B0-06050iASV71..G,S201712-201902

VALUE PACKAGE

main867B0-06050iAXVA70,AXVH71..G,S201712-201903

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86792CCOMPUTER, PARKING ASSIST

86796COVER, COMPUTER PARKING ASSIST

main86796-06030

86799WIRE, TELEVISION CAMERA

main86799-06030iASV71..G,S201712-201902

VALUE PACKAGE

main86799-06030iAXVA70,AXVH71..G,S201712-201903

main86799-06130iAXVA70,AXVH71,MXVA71..G,S202103

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906A06

main90119-06A06

90119C0307

main90119-C0307

9016750063

main90167-50063

9046707214

main90467-07214

13 parts on this diagram · 2 diagrams in section
