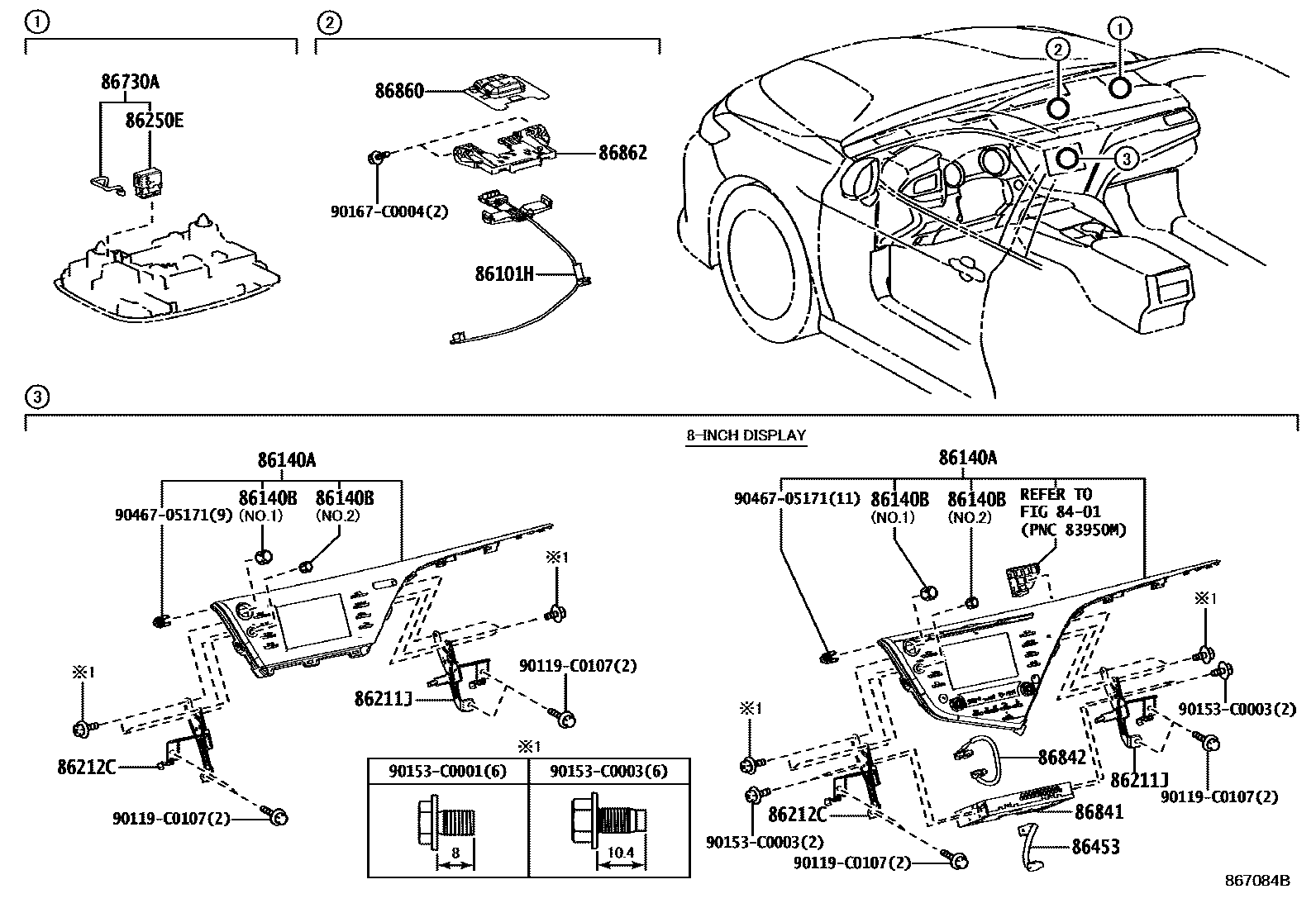

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

8401

86101HCORD SUB-ASSY, ANTENNA

main86101-06D30iASV71,AXVA70,AXVH71,MXVA71..G,S201712-202103

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-06520iASV71..G,S201712-201903

PIONEER

sub86140-06521

main86140-06740iAXVA70,AXVH71..G201712-201903

PIONEER

sub86140-06741

main86140-06C50iAXVH71,MXVA71..G202304-202306

DESAY,AUDIO-8INCH DISPLAY & *DA & 6SPEAKER

sub86140-06C51

main86140-06C50iAXVH71,MXVA71..E202304-202306

DESAY

sub86140-06C51

main86140-06C51iAXVH71,MXVA71..E202307

DESAY

main86140-06C51iAXVH71,MXVA71..E202307

DESAY,AUDIO-8INCH DISPLAY & *DA & 6SPEAKER

main86140-06E50iAXVH71,MXVA71..G202103-202304

DESAY,AUDIO-8INCH DISPLAY & *DA & 6SPEAKER

main86140-06E50iAXVH71,MXVA71..E202103-202304

DESAY

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25294iASV71..G,S201712-201903

NO.1

main90011-25295iASV71..G,S201712-201903

NO.2

main90011-25296iAXVA70,AXVH71..G201712-201903

NO.1

main90011-25297iAXVA70,AXVH71..G201712-201903

NO.2

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-06270iASV71..G,S201712-202103

main86211-06320iASV71..G201712-201902

VALUE PACKAGE

main86211-06320iAXVH71,MXVA71..E201712-202103

main86211-06360iAXVA70,AXVH71,MXVA71202103

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-06270iAXVA70,AXVH71,MXVA71..G,S201712-202103

main86212-06320iASV71..G201712-201902

VALUE PACKAGE

main86212-06320iAXVH71,MXVA71..E201712-202103

main86212-06360iAXVA70,AXVH71,MXVA71202103

86250EMICROPHONE ASSY, AMPLIFIER

main86250-06020iAXVA70,AXVH71,MXVA71202103

main86250-52030iASV71,MXVA71..G¥5,100201712-202103

VALUE PACKAGE

86453WIRE, MULTI-MEDIA MODULE

main86203-33280iAXVA70,AXVH71..G201712-201903

86730AMICROPHONE ASSY, TELEPHONE

main86730-06060iASV71,AXVA70,AXVH71,MXVA71..G,S201712-202103

VALUE PACKAGE

main86730-06060iAXVA70,AXVH71,MXVA71202103

86841COMPUTER, NAVIGATION

main86840-06030

main86840-06031

main86840-06032

main86840-06033

main86840-06034

main86840-06035

main86840-06036

86842WIRE, NAVIGATION, NO.1

main86842-06020

86860ANTENNA ASSY, NAVIGATION

main86860-06120iASV71,AXVA70,AXVH71,MXVA71..G,S201712-202103

main86880-0E020iAXVA70,AXVH71,MXVA71202103

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAXVA70,AXVH71,MXVA71¥940202103

main86862-58020iASV71,AXVA70,AXVH71,MXVA71..G,S¥940201712-202103

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90167C0004

main90167-C0004

9046705171

main90467-05171¥60

18 parts on this diagram · 3 diagrams in section
