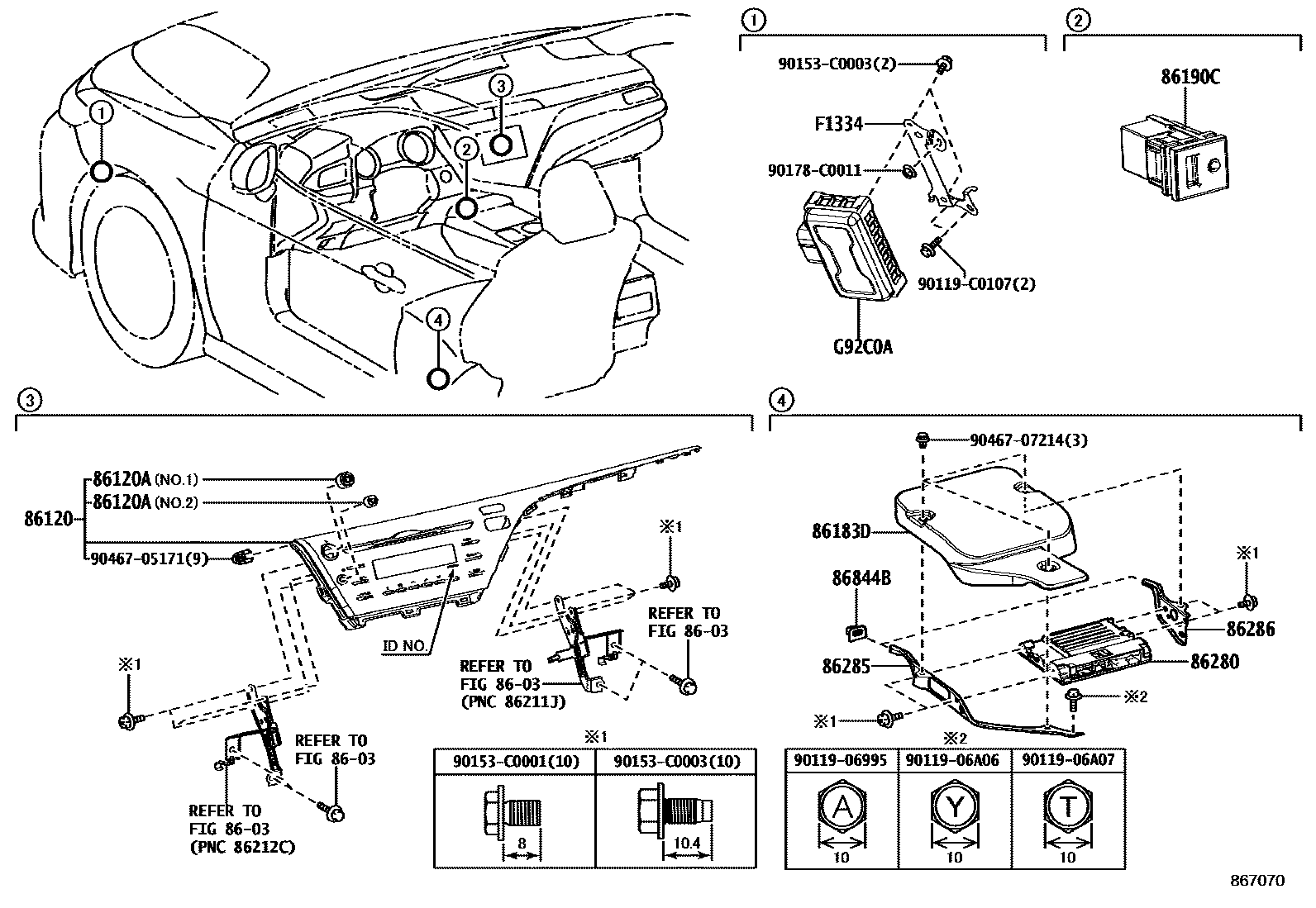

RADIO RECEIVER & AMPLIFIER & CONDENSER
8603
86120RECEIVER ASSY, RADIO
PIONEER,ID=P11415
PIONEER,ID=P11415,VALUE PACKAGE
PIONEER,ID=P11415,AUDIO-CD & USB & 6SPEAKER
86120AKNOB, RADIO RECEIVER SWITCH
NO.1
AUDIO-CD & USB & 6SPEAKER,NO.1
VALUE PACKAGE,NO.1
VALUE PACKAGE,NO.2
NO.2
AUDIO-CD & USB & 6SPEAKER,NO.2
86183DCOVER, AUDIO AMPLIFIER
UPGRADE PACKAGE
AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER
AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER
86190CADAPTER ASSY, STEREO JACK, NO.1
WITHOUT(CLEARANCE & BACK SONER)&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER
86280AMPLIFIER ASSY, STEREO COMPONENT
UPGRADE PACKAGE
AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER
86285BRACKET, AMPLIFIER, NO.1
UPGRADE PACKAGE
AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER
AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER
86286BRACKET, AMPLIFIER, NO.2
UPGRADE PACKAGE
AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER
AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER
86844BRETAINER, AUDIO AMPLIFIER COVER
UPGRADE PACKAGE
AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER
AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER
F1334BRACKET, CONVERTER CONTROL, NO.1
UPGRADE PACKAGE
AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER
G92C0ACONVERTER ASSY, ECO-RUN VEHICLE
UPGRADE PACKAGE
AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER
9011906995
main90119-06995
9011906A06
main90119-06A06
9011906A07
main90119-06A07
90119C0107
main90119-C0107
90153C0001
main90153-C0001
90153C0003
main90153-C0003
90178C0011
main90178-C0011
9046705171
main90467-05171
9046707214
main90467-07214
20 parts on this diagram · 3 diagrams in section
