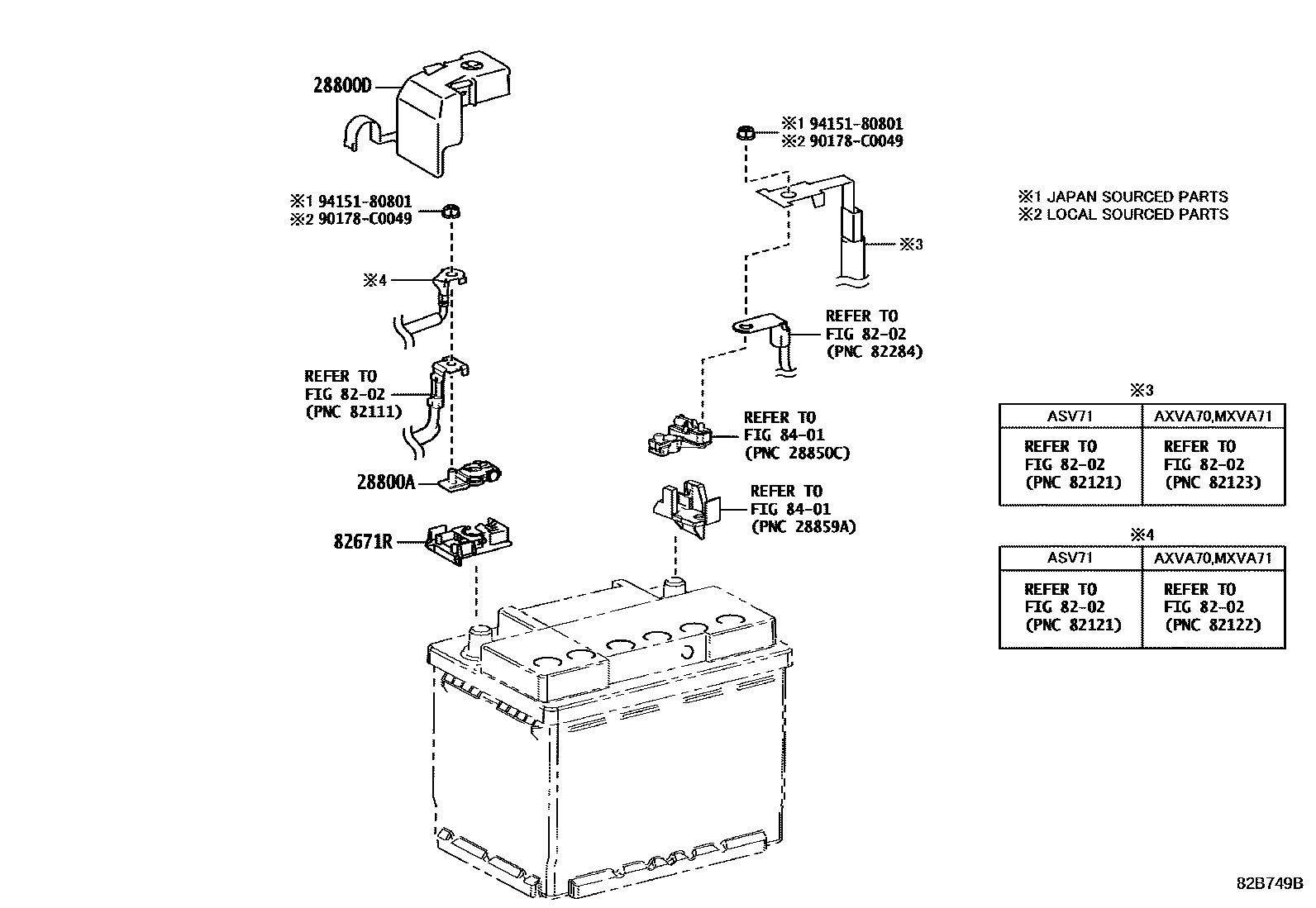

BATTERY & BATTERY CABLE
28800ATERMINAL, BATTERY POSITIVE
WITH(ELECTRIC TILT & TELESCOPIC)&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER
AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER
WITHOUT(CLEARANCE & BACK SONER)&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
WITH(ELECTRIC TILT & TELESCOPIC)&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER
WITHOUT(CLEARANCE & BACK SONER)&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER
AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER
8202
82671RSTOPPER, BATTERY TERMINAL
WITH(ELECTRIC TILT & TELESCOPIC)&AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER
AUDIO-10.1-INCH DISPLAY & AVN(DOP) & 6SPEAKER
WITHOUT(CLEARANCE & BACK SONER)&AUDIO-8INCH DISPLAY & *DA & 6SPEAKER
8401
90178C0049
main90178-C0049
9415180801
main94151-80801
7 parts on this diagram · 5 diagrams in section
